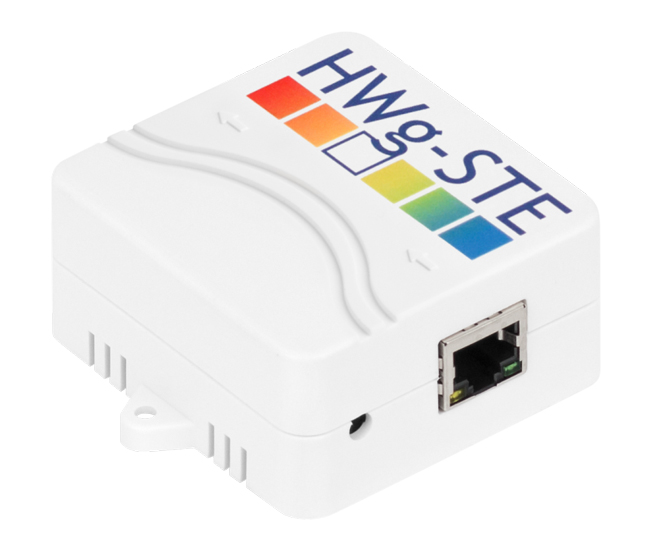

HW Group - HWg-STE - 600381
IP thermometer 2x RJ11, Email, WEB, PDMS, SMTP, XML, SNMP (incl. power supply, temperature sensor 3m)
Producentens varenummer:
600381
Vores artikelnummer:
930012
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Produktinformation "HW Group - HWg-STE - 600381"
Up to 2 sensors can be connected to one HWg-STE via RJ11.

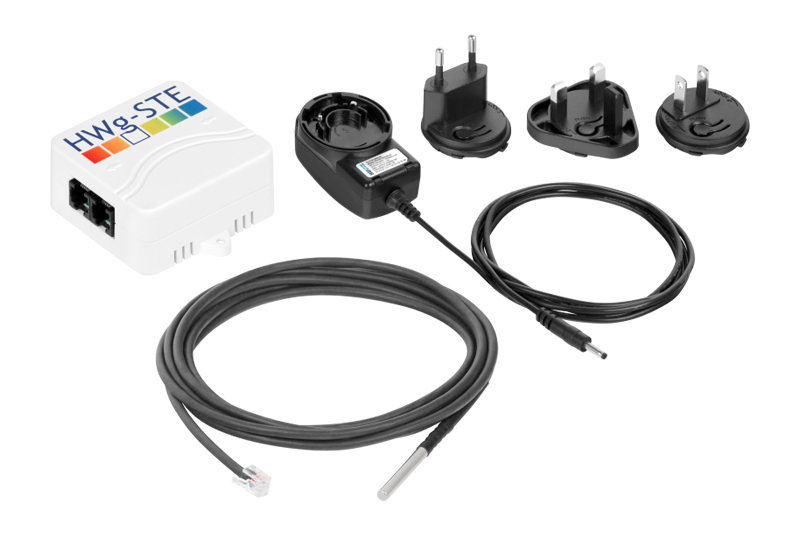

An integrated web server is used for configuration. The unit can be monitored remotely via the Internet. It is supplied with a temperature sensor, a power supply unit and free HWg-PDMS software for creating diagrams and exporting data to MS Excel.
HWg-STE is a device with SNMP support for measuring temperature and humidity from external sensors with the option to connect to the internet via Ethernet. If the permissible range of values is exceeded, HWg-STE sends an alarm by e-mail.
Scope of delivery: HW Group HWg-STE - 600381
HWg-STE is a device with SNMP support for measuring temperature and humidity from external sensors with the option to connect to the internet via Ethernet. If the permissible range of values is exceeded, HWg-STE sends an alarm by e-mail.
Scope of delivery: HW Group HWg-STE - 600381
| Alerts: | E-Mail with Transport Encryption, SMTP Get, Software for central alarm detection of several devices |
|---|---|
| Device: | Monitoring Device |
| Device Classes: | 2 Sensors, IP Thermometer |
Features
- 2x sensors (RJ11)
- 2x e-mail notification
- M2M communication protocols: SNMP, XML
- Connected via LAN. Configuration via built-in web server.
- NMS connectivity (SNMP-MIB); easy installation; supports DHCP.
- When the threshold is exceeded, an alarm is triggered by e-mail.
- Logged data can be exported to MS Excel using HWg PDMS software.
- Compatible with a range of third-party SWs. Examples for programmers to use the product can be found in the HWg SDK (Borland C ++, MS Visual, VB, C #, PHP, JAVA and more).
Technical details
Applications and use
- Ethernet: 10 / 100Mbit
- IP protocols : ARP, TCP / IP (HTTP, SMTP), UDP / IP (SNMP)
- DHCP for IP assignment: Yes
- SNMP: Port 161, Ver 1.0 / 2.0 (partial)
- M2M protocol: SNMP, XML (via http)
- Accuracy: ± 0.5 ° C (-10 ° C to + 85 ° C); ± 2 ° C (-55 ° C to + 125 ° C)
- Power: 5V / 1W
- PoE / 48V: Optional
- Operating environment: -10 ° C to 60 ° C / 0% rH - 100% rH
- Storage environment: -30 ° C to 60 ° C / 5% rH - 95% rH
- Dimensions: 79 x 68 x 30 (WxHxD) / 64 g
Applications and use
- Air conditioning failure
- Heating system monitoring
- Cooler / freezer monitoring
- Heating optimisation
- Food storage
- Remote rack monitoring
