HW Group - STE2 PLUS - 600832
Professional SNMP thermometer for remote environment monitoring
Listepris:
2.600,05 kr.*
Forhandlerpris - Login
11 stykker til rådighed, leveringstid: 2 - 3 arbejdsdage
Producentens varenummer:
600832
Vores artikelnummer:
930174
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - STE2 PLUS - 600832"
STE2 PLUS is a professional LAN & WiFi remote sensors monitoring product. You can connect external sensors (up to 15 values) to 2x RJ11 ports. External detectors can be connected to 2x DI (Digital Input). The STE2 PLUS is a professional product with HTTPS custom certificates, SNMPv3, SNMP Traps and IPv6.

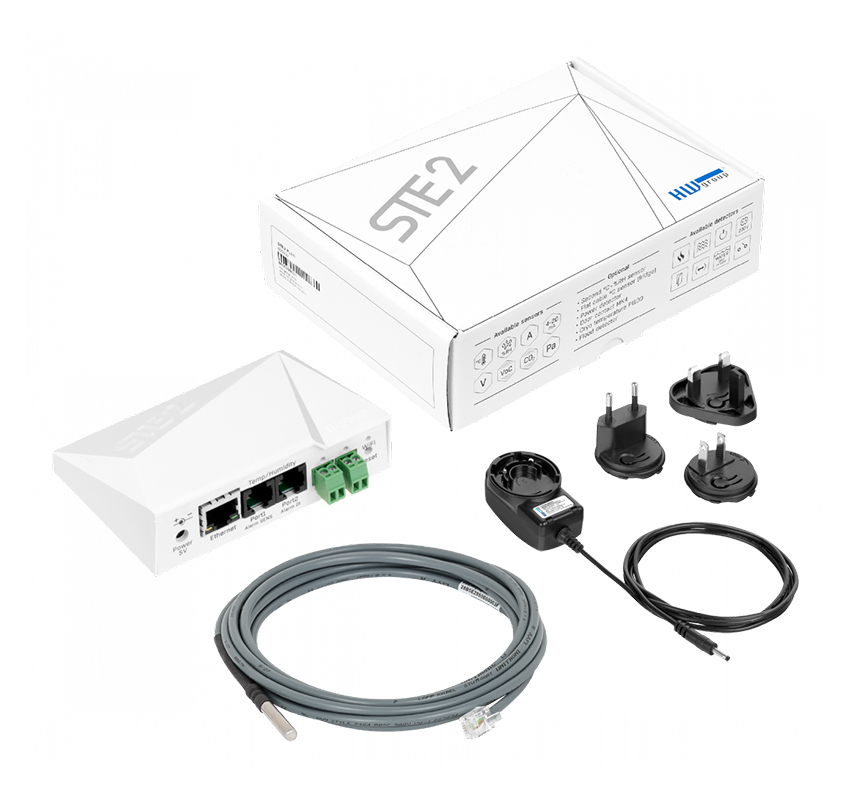

The STE2 PLUS package includes a power adaptor and 3m outdoor temperature sensor for remote temperature measurement. The device can be connected to the network via WIFI or LAN (RJ45) with PoE power support.
Sensor values are displayed via the device's web interface, in API (SNMP or XML) on the Portal or on the mobile/tablet screen (HWg Monitor).
Scope of delivery: HW Group - STE2 PLUS
The STE2 PLUS package includes a power adaptor and 3m outdoor temperature sensor for remote temperature measurement. The device can be connected to the network via WIFI or LAN (RJ45) with PoE power support.
Sensor values are displayed via the device's web interface, in API (SNMP or XML) on the Portal or on the mobile/tablet screen (HWg Monitor).
Scope of delivery: HW Group - STE2 PLUS
| Alerts: | Call, E-Mail, SMGT Traps, SMS |
|---|---|
| Classification: | Big Server Rooms and Datacenter |
| Device: | Monitoring Device |
| Device Classes: | > 8 Sensors, Expandable with DI/DO |
Features
- Connectivity: LAN, WiFi
- 2x RJ11 port (1W-UNI) up to 15 sensor values in total
- 2x DI (Digital input) for dry contacts
- Temperature sensor (IP67 - 3m) included in the retail package
- Power adapter (International = EU, UK, US) included in the retail package
- SMS messages & Voice Calls available with SMS-GW (external device) or Portal usage
- Professional product features: IPv6, SNMP Traps, SNMP v3, VDO, HTTPs (customer certificate), PoE (Power Over Ethernet)
- Default portal (optional): HWg-cloud.com (free service)
- Compatible portals: SensDesk Technology
- Mobile App: HWg Monitor (LAN or Portal connectivity)
Technical details
External power
5V Jack Ø 3.5 × 1.35 mm, PoE RJ-45
Temperature range
Operating: -10 °C – 60 °C
Dimensions / weight
98 × 68 × 33 (W × H × D) / 91 g
Conectivity
LAN, WiFi
External sensors and detectors
Sensor ports
2 RJ11 ports, 15 sensor values in total
Compatible sensors
RJ11 sensors from HW group (1W / 1W-UNI)
Sensors you can monitor
Temperature, Relative Humidity, Voltage, AC / DC Current, Flood detection, CO2, VoC, Light intensity & many more...
Digital Inputs
2× Dry contact input
Communication
M2M Open API
SNMP v1/v2, SNMP v3, XML, HWg-Push
Alarms
Email, SNMP Traps, HWg-Push, SMS & Voice Call (with assistance of SMS-GW3 LTE)
Features
IPv6, VDO (Virtual Digital Outputs)
Software / Services
SensDesk Technology portal
Online remote monitoring service. Graphs, alerts, device management.
HWg-cloud.com
Free of charge portal service
Mobile App
HWg Monitor
Other software
3rd party software, HWg-SDK
External power
5V Jack Ø 3.5 × 1.35 mm, PoE RJ-45
Temperature range
Operating: -10 °C – 60 °C
Dimensions / weight
98 × 68 × 33 (W × H × D) / 91 g
Conectivity
LAN, WiFi
External sensors and detectors
Sensor ports
2 RJ11 ports, 15 sensor values in total
Compatible sensors
RJ11 sensors from HW group (1W / 1W-UNI)
Sensors you can monitor
Temperature, Relative Humidity, Voltage, AC / DC Current, Flood detection, CO2, VoC, Light intensity & many more...
Digital Inputs
2× Dry contact input
Communication
M2M Open API
SNMP v1/v2, SNMP v3, XML, HWg-Push
Alarms
Email, SNMP Traps, HWg-Push, SMS & Voice Call (with assistance of SMS-GW3 LTE)
Features
IPv6, VDO (Virtual Digital Outputs)
Software / Services
SensDesk Technology portal
Online remote monitoring service. Graphs, alerts, device management.
HWg-cloud.com
Free of charge portal service
Mobile App
HWg Monitor
Other software
3rd party software, HWg-SDK
