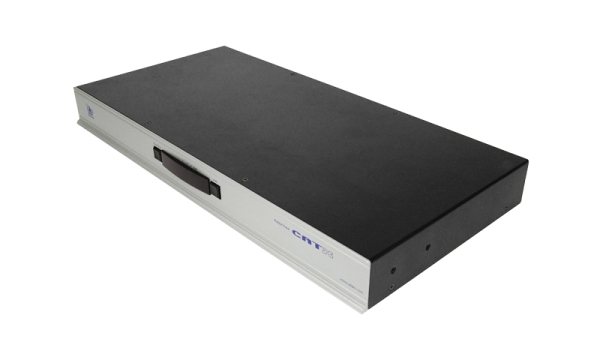

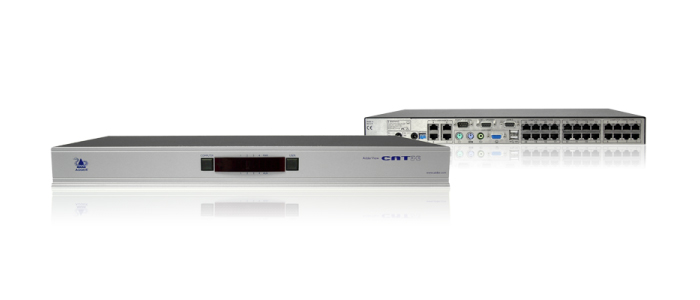

ADDERView - AVX4024IP
CATx KVMA Switch - 4 Local Users, 24 Computers
Producentens varenummer:
AVX4024IP
Vores artikelnummer:
490052
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Product information "ADDERView - AVX4024IP"

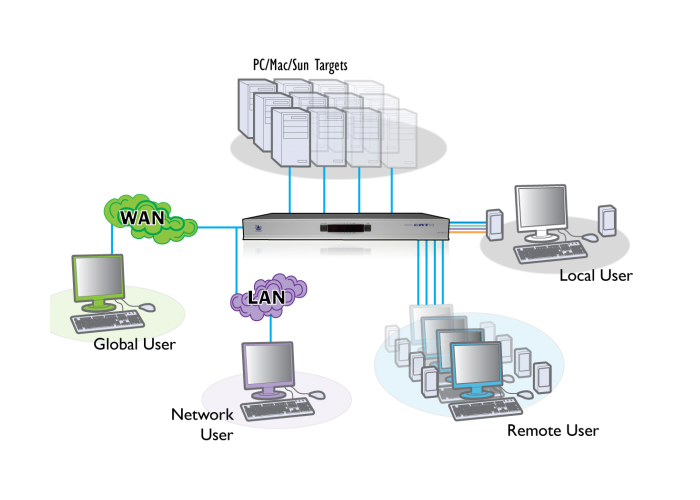

The ADDERView CATxIP 4000 product is a full-featured, high-density KVM-over-IP switch that allows up to 4 local, remote and global users to access and control up to 24 computers in BIOS. A combination of USB console support, global IP access and a full KVM feature set ensures powerful and flexible switching of USB, video and audio signals. Any type of server can be connected to when ADDERView CATxIP 4000 is combined with ADDER Computer Access Modules (CAM). This product is part of the CATx range.
Scope of delivery: ADDERView AVX4024IP, power supply unit, rubber feet, CD-ROM, two 19" rackmount brackets incl. four screws
- Global control of up to 24 cross-platform servers: local and remote access via LAN or WAN.
- Connectivity options: CATx cabling or IP
- High performance USB, video and audio
- Security: through authentication and encryption
- Flexible plug-and-play installation: easy set-up, complemented by multi-platform support and flexible expansion
Scope of delivery: ADDERView AVX4024IP, power supply unit, rubber feet, CD-ROM, two 19" rackmount brackets incl. four screws
| Classification: | Enterprise |
|---|---|
| KVM Ports: | 24 Ports |
| Keyboard & Mouse: | USB |
| Option: | Audio |
| Power Supply: | Single AC |
| Remote Users: | 4 Users |
Features
User access control
Up to 24 different user profiles can be created and access rights defined for each user.
Global User (IP)
Compatibility with Real VNC client software (or an alternative browser) specifically designed for secure, high-performance KVM-over-IP applications.
Encryption and authentication
AES128-bit encryption and RSA2048 authentication ensure that your control system remains secure at all times.
USB keyboard and mouse control
Any USB keyboard and mouse can be used to control the ADDERView CATx 4000 switch. Full keyboard remapping is supported to ensure seamless cross-platform functionality.
Flawless video quality
Resolutions up to 1920 x 1200 at 60 Hz with DDC (Display Data Channel) emulation.
True multi-platform support
Support for all computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure error-free operation.
Easy cascade
Expand easily by using only CATx cables to connect units and cascade connections to support up to 256 computers.
Optional audio
44.1 kHz digital stereo audio with audio-enabled CAM modules.
Option port
Integration with RS232 controlled power switches for full reboot capability.
Integrated CATx extender
Controlled from a distance of up to 300 m via CATx cable using an ADDERLink X200 or X100 receiver and the integrated CATx extender.
Computer access modules
Flash-updatable CAMs are available for PS/2, USB and Sun keyboard and mouse support with optional audio.
Standard transmission distance
KVM communication from the switch to the target devices can be up to 50 m.
Rack mount
A CATx 4000 switch can be mounted in 1U rack height.
Power control functions
Are supported via a dedicated serial port.
User access control
Up to 24 different user profiles can be created and access rights defined for each user.
Global User (IP)
Compatibility with Real VNC client software (or an alternative browser) specifically designed for secure, high-performance KVM-over-IP applications.
Encryption and authentication
AES128-bit encryption and RSA2048 authentication ensure that your control system remains secure at all times.
USB keyboard and mouse control
Any USB keyboard and mouse can be used to control the ADDERView CATx 4000 switch. Full keyboard remapping is supported to ensure seamless cross-platform functionality.
Flawless video quality
Resolutions up to 1920 x 1200 at 60 Hz with DDC (Display Data Channel) emulation.
True multi-platform support
Support for all computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure error-free operation.
Easy cascade
Expand easily by using only CATx cables to connect units and cascade connections to support up to 256 computers.
Optional audio
44.1 kHz digital stereo audio with audio-enabled CAM modules.
Option port
Integration with RS232 controlled power switches for full reboot capability.
- Flash upgrade
- Synchronise with other CATx 1000 switches for multi-video applications
- Upload / download CATx 1000 user and host information
- Remote control
Integrated CATx extender
Controlled from a distance of up to 300 m via CATx cable using an ADDERLink X200 or X100 receiver and the integrated CATx extender.
Computer access modules
Flash-updatable CAMs are available for PS/2, USB and Sun keyboard and mouse support with optional audio.
Standard transmission distance
KVM communication from the switch to the target devices can be up to 50 m.
Rack mount
A CATx 4000 switch can be mounted in 1U rack height.
Power control functions
Are supported via a dedicated serial port.
Technical details
Approvals / Conformity
Hardware Compatibility
Video, mouse, keyboard and optional audio support for PC, Sun, Mac, RS/6000, Alpha and SGI computers with upgradeable PS/2, USB or Sun Flash computer access modules (CAMs).
Operating system compatibility
Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Video modes
Support for standard PC, Sun and Mac video modes up to 1920 x 1200 resolution at 60 Hz. DDC emulation is supported via connected Computer Access Modules (CAMs).
Cable guidelines
CAT5e or CAT6 cabling is recommended
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Computer connections on the switch
RJ45 (8p8c)
Peripherals Receiver (RX)
Local console
Computer connections on the computer
RJ45 10 / 100Mb Ethernet connector with auto-sensing. Other connections DB9 socket for flash upgrade, sync boxes and other special functions. DB9 connector for RS232 triggered power switches. DB9 connector (ADDERView IP only) for modem connection.
Physical design
ADDERView CATx: 1U high metal enclosure 482 mm (19 in. (W), 215 mm (8.5 in. (D), 45 mm (1.8 in. (H))
Power
Approvals / Conformity
- CE
- FCC
Hardware Compatibility
Video, mouse, keyboard and optional audio support for PC, Sun, Mac, RS/6000, Alpha and SGI computers with upgradeable PS/2, USB or Sun Flash computer access modules (CAMs).
Operating system compatibility
Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Video modes
Support for standard PC, Sun and Mac video modes up to 1920 x 1200 resolution at 60 Hz. DDC emulation is supported via connected Computer Access Modules (CAMs).
Cable guidelines
CAT5e or CAT6 cabling is recommended
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Computer connections on the switch
RJ45 (8p8c)
Peripherals Receiver (RX)
Local console
- Video: HDD15 socket
- Keyboard/mouse: USB type A sockets
- Audio: 3.5 mm stereo jack
Computer connections on the computer
- Video: HDD15
- Keyboard/mouse: Optional USB, PS/2 and Sun MiniDin8
- Audio (optional): 3.5 mm stereo jack Network connection (ADDERView IP models only)
RJ45 10 / 100Mb Ethernet connector with auto-sensing. Other connections DB9 socket for flash upgrade, sync boxes and other special functions. DB9 connector for RS232 triggered power switches. DB9 connector (ADDERView IP only) for modem connection.
Physical design
ADDERView CATx: 1U high metal enclosure 482 mm (19 in. (W), 215 mm (8.5 in. (D), 45 mm (1.8 in. (H))
Power
- IEC power cable (100 - 240 V AC, 50-60 Hz)
- Redundant via 2.5 - mm - DC - socket (5 V DC, 4A)
