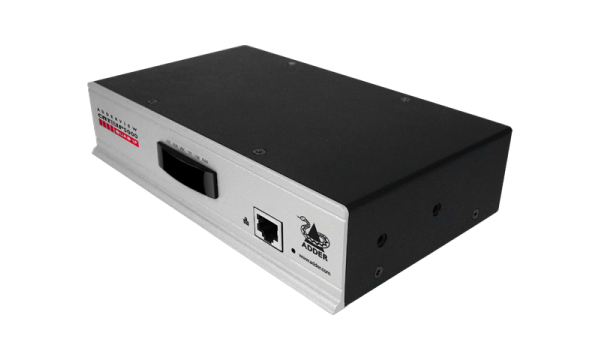

ADDERView - AVX5016IP
CATx KVMA Switch - 1 Local User (4 IP Users), 16 Computers
Producentens varenummer:
AVX5016IP
Vores artikelnummer:
490252
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "ADDERView - AVX5016IP"

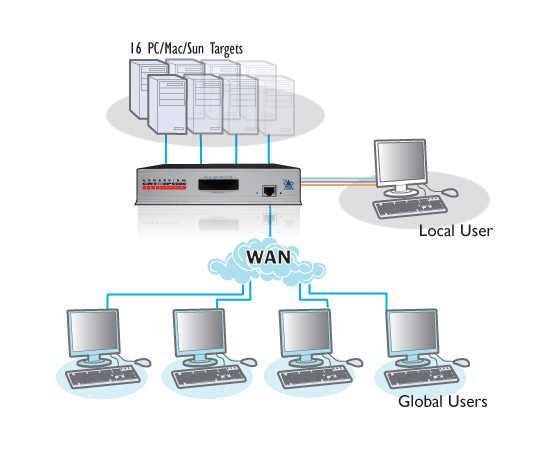

The ADDERView CATxIP 5000 product is a full-featured, high-density KVM-over-IP switch that allows up to 5 local, remote and global users to simultaneously access and control BIOS-level computers. A combination of USB console support, global IP access and a full KVM feature set ensures powerful and flexible switching of USB, video and audio signals. The product combines 4 non-blocking simultaneous IP connections with a local port (5 separate users) with control of up to 16 separate devices. The small form factor design allows two units to sit within 1U of rack space and support 32 computers and 10 sessions. Any type of server can be connected to when ADDERView CATxIP 5000 is combined with ADDER Computer Access Modules (CAM). This product is part of the CATx range.
Scope of delivery: ADDERView AVX5016IP, power supply unit, rubber feet, 2x CD-ROM
Optional accessories:
- Serial console support: Connection via CATx-CONSOLE CAM
- Global control of up to 16 cross-platform servers: local and remote access via LAN or WAN
- Concurrent users: up to 4 over IP plus 1 locally
- Connectivity options: CATx cabling or IP
- High performance USB, video and audio
- Security: Through authentication and encryption
- Small form factor unit: Two units per 1U rack space
- Flexible plug-and-play installation: Easy set-up, complemented by multi-platform support and flexible expansion
Scope of delivery: ADDERView AVX5016IP, power supply unit, rubber feet, 2x CD-ROM
Optional accessories:
- RMK4S: Single Rack Brackets
- RMK4D: Rack brackets for dual units
| Graphic Port: | VGA |
|---|---|
| KVM Ports: | 16 Ports |
| Keyboard & Mouse: | USB |
| Local Users: | 1 User |
| Option: | Audio |
| Power Supply: | Dual AC, Single AC |
| Remote Users: | 4 Users |
Features
Serial console support
Connection via CATx-CONSOLE CAM
4 simultaneous global IP users
Connect via IP to any of the 16 connected devices.
Local user support
Direct connection for 1 local user to connect directly to the switch via CATx cabling.
User Access Control
Up to 16 different user profiles can be created and access rights defined for each user.
Global User (IP)
Compatibility with Real VNC client software (or an alternative browser) specifically designed for secure, high-performance KVM-over-IP applications.
Encryption and authentication
AES128-bit encryption and RSA2048 authentication ensure that your control system remains secure at all times.
USB keyboard and mouse control
Any USB keyboard and mouse can be used to control the ADDERView CATx 5000 switch. Full keyboard remapping is supported to ensure seamless cross-platform functionality.
Flawless video quality
Resolutions up to 1600 x 1200 at 60 Hz with DDC (Display Data Channel) emulation.
True multi-platform support
Support for all computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure error-free operation.
Simple cascade
Automatically detects cascade connections to support up to 256 computers.
Optional audio
44.1 kHz digital stereo audio with audio-enabled CAM modules.
Option port
Integration with RS232 controlled power switches for full reboot capability.
Computer access modules
Flash-upgradeable CAMs are available for PS/2, USB and Sun keyboard and mouse support with optional audio.
Standard transmission distance
KVM communication from the switch to the target devices can be up to 50 m.
Rack mount / rack drawers
One or two CATxIP 5000 switches can be mounted in 1U rack height, giving a maximum of 32 ports perU. Due to their small size, the units are also ideal for mounting behind KVM rack drawers. Also available: ADDERView RDX 5000IP high density rack tray with integrated ADDERView CATxIP 5000.
Embedded KVM option
CATxIP 5000 technology can be embedded in rack drawers and industrial equipment.
Power control functions
Are supported via a dedicated serial port.
LDAP integration
Optional features to authenticate users against your existing LDAP infrastructure.
Integrated RS232
For controlling other external devices, such as power management products.
Configuration
16 separate users internally with unique access rights stored in the switch.
ADDER.net
Network management software that automates the management of your network control hardware.
Serial console support
Connection via CATx-CONSOLE CAM
4 simultaneous global IP users
Connect via IP to any of the 16 connected devices.
Local user support
Direct connection for 1 local user to connect directly to the switch via CATx cabling.
User Access Control
Up to 16 different user profiles can be created and access rights defined for each user.
Global User (IP)
Compatibility with Real VNC client software (or an alternative browser) specifically designed for secure, high-performance KVM-over-IP applications.
Encryption and authentication
AES128-bit encryption and RSA2048 authentication ensure that your control system remains secure at all times.
USB keyboard and mouse control
Any USB keyboard and mouse can be used to control the ADDERView CATx 5000 switch. Full keyboard remapping is supported to ensure seamless cross-platform functionality.
Flawless video quality
Resolutions up to 1600 x 1200 at 60 Hz with DDC (Display Data Channel) emulation.
True multi-platform support
Support for all computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure error-free operation.
Simple cascade
Automatically detects cascade connections to support up to 256 computers.
Optional audio
44.1 kHz digital stereo audio with audio-enabled CAM modules.
Option port
Integration with RS232 controlled power switches for full reboot capability.
- Flash upgrade
- Synchronise with other CATx 1000 switches for multi-video applications
- Upload / download CATx 1000 user and host information
- Remote control
Computer access modules
Flash-upgradeable CAMs are available for PS/2, USB and Sun keyboard and mouse support with optional audio.
Standard transmission distance
KVM communication from the switch to the target devices can be up to 50 m.
Rack mount / rack drawers
One or two CATxIP 5000 switches can be mounted in 1U rack height, giving a maximum of 32 ports perU. Due to their small size, the units are also ideal for mounting behind KVM rack drawers. Also available: ADDERView RDX 5000IP high density rack tray with integrated ADDERView CATxIP 5000.
Embedded KVM option
CATxIP 5000 technology can be embedded in rack drawers and industrial equipment.
Power control functions
Are supported via a dedicated serial port.
LDAP integration
Optional features to authenticate users against your existing LDAP infrastructure.
Integrated RS232
For controlling other external devices, such as power management products.
Configuration
16 separate users internally with unique access rights stored in the switch.
ADDER.net
Network management software that automates the management of your network control hardware.
Technical details
Approvals
Hardware compatibility
Video, mouse, keyboard and optional audio support for PC, Sun, Mac, RS/6000, Alpha and SGI computers with upgradeable PS/2, USB or Sun Flash computer access modules (CAMs).
Operating system compatibility
Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Video modes
Support for standard video modes for PC, Sun and Mac up to 1920 x 1200 resolution at 60 Hz. DDC emulation is supported via connected Computer Access Modules (CAMs).
Cable guidelines
CAT5e or CAT6 cabling is recommended
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Computer connections on the switch
RJ45 (8p8c)
Peripherals Receiver (RX)
Local console
Computer connections
RJ45 10 / 100Mb Ethernet connector with auto-sensing. Other connections DB9 socket for flash upgrade, sync boxes and other special functions. DB9 connector for RS232 triggered power switches. DB9 connector (ADDERView IP only) for modem connection.
Physical design
Compact 1U high-metal enclosure construction for rack mounting (rack mounting kits available) Width: 198 mm, Height: 44 mm, Depth: 120 mm, Weight: 0.77 kg
Power supply
Approvals
- CE
- FCC
Hardware compatibility
Video, mouse, keyboard and optional audio support for PC, Sun, Mac, RS/6000, Alpha and SGI computers with upgradeable PS/2, USB or Sun Flash computer access modules (CAMs).
Operating system compatibility
Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Video modes
Support for standard video modes for PC, Sun and Mac up to 1920 x 1200 resolution at 60 Hz. DDC emulation is supported via connected Computer Access Modules (CAMs).
Cable guidelines
CAT5e or CAT6 cabling is recommended
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Computer connections on the switch
RJ45 (8p8c)
Peripherals Receiver (RX)
Local console
- Video: HDD15 socket
- Keyboard/mouse: USB type A sockets
- Audio: 3.5 mm stereo jack
Computer connections
- Video: HDD15
- Keyboard/mouse: Optional USB, PS/2 and Sun MiniDin8
- Audio (optional): 3.5 mm stereo jack Network connection (ADDERView IP models only)
RJ45 10 / 100Mb Ethernet connector with auto-sensing. Other connections DB9 socket for flash upgrade, sync boxes and other special functions. DB9 connector for RS232 triggered power switches. DB9 connector (ADDERView IP only) for modem connection.
Physical design
Compact 1U high-metal enclosure construction for rack mounting (rack mounting kits available) Width: 198 mm, Height: 44 mm, Depth: 120 mm, Weight: 0.77 kg
Power supply
- IEC power cable (included)
- Input: 100-240 VAC 0.5 A 50-60 Hz Output: 5V DC 4.0A
