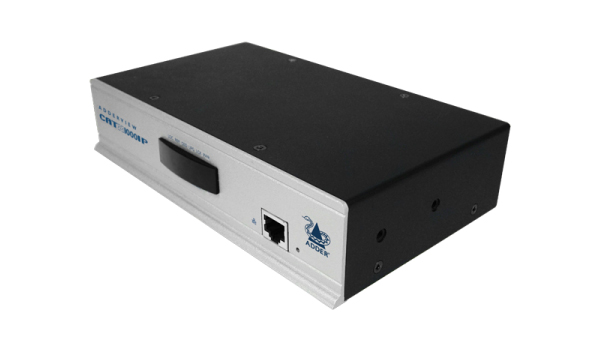

ADDERView - AVX1016IP
CATx KVMA Switch - 1 Local/Remote User, 16 Computers
Producentens varenummer:
AVX1016IP
Vores artikelnummer:
490186
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Produktinformation "ADDERView - AVX1016IP"

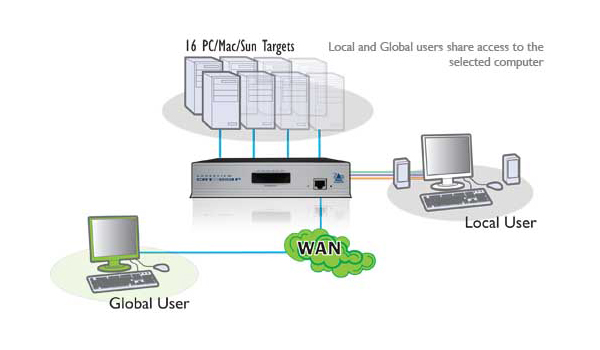

The ADDERView CATx 1000 switch is a high-density, small form factor KVM product that provides local and remote access and enables control of up to 16 multi-platform servers over CATx cabling. A combination of USB console support and a full KVM feature set ensures powerful switching of USB, video and audio signals, ideal for server room and desktop environments. Any type of server can be connected to when ADDERView CATx 1000 is combined with ADDER Computer Access Modules (CAM). This product is part of the CATx range.
Scope of delivery: ADDERView AVX1016IP, power supply, rubber feet, CD-ROM
Optional accessories:
- Control of up to 16 cross-platform servers: local and remote access via LAN or WAN.
- Connection options: CATx cabling or IP
- High-performance USB, video and audio
- Security: through authentication and encryption
- Small form factor unit: two units per 1U rack space
- Flexible plug-and-play installation: easy set-up, complemented by multi-platform support and flexible expansion
Scope of delivery: ADDERView AVX1016IP, power supply, rubber feet, CD-ROM
Optional accessories:
- RMK-ALIP: Single rack mounts.
- RMK-ALIP-DUAL: Rack brackets for dual units
| Graphic Port: | VGA |
|---|---|
| KVM Ports: | 16 Ports |
| Keyboard & Mouse: | USB |
| Option: | Audio |
| Power Supply: | Single AC |
Features
User access control
Up to 16 different user profiles can be created and access rights defined for each user.
Local user support
Direct connection for 1 local user to connect directly to the switch via CATx cable.
Global User (IP)
Compatibility with Real VNC client software (or alternative browser) specifically designed for secure, high performance KVM-over-IP applications.
Encryption and authentication
AES128-bit encryption and RSA2048 authentication ensure that your control system remains secure at all times.
USB keyboard and mouse control
Any USB keyboard and mouse can be used to control the ADDERView CATx 1000 switch. Full keyboard remapping is supported to ensure seamless cross-platform functionality.
Video modes
Support for standard video modes for PC, Sun and Mac up to 1600 x 1200 resolution at 60 Hz.
True multi-platform support
Support for all computer platforms with PS / 2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure error-free operation.
Easy cascade
Expand easily by using only CATx cables to connect units and cascade connections to support up to 256 computers.
Optional audio
44.1 kHz digital stereo audio with audio-enabled CAM modules.
Option port
Integration with RS232-controlled power switches for full reboot capability.
Integrated CATx extender
Controlled with an ADDERLink X200 or X100 receiver and the integrated CATx extender from a distance of up to 300 m via a CATx cable.
Computer access modules
Flash-updatable CAMs are available for PS / 2, USB and Sun keyboard and mouse support with optional audio.
Standard transmission distance
KVM communication from the switch to the target devices can be up to 10 m.
Rack mount/rack drawers
One or two CATx 1000 switches can be mounted in 1U rack height, giving a maximum of 32 ports perU. Due to their small size, the units are also ideal for mounting behind KVM rack drawers.
Embedded KVM option
CATx 1000 technology can be embedded in rack drawers and industrial equipment.
Power control functions
Are supported via a dedicated serial interface.
User access control
Up to 16 different user profiles can be created and access rights defined for each user.
Local user support
Direct connection for 1 local user to connect directly to the switch via CATx cable.
Global User (IP)
Compatibility with Real VNC client software (or alternative browser) specifically designed for secure, high performance KVM-over-IP applications.
Encryption and authentication
AES128-bit encryption and RSA2048 authentication ensure that your control system remains secure at all times.
USB keyboard and mouse control
Any USB keyboard and mouse can be used to control the ADDERView CATx 1000 switch. Full keyboard remapping is supported to ensure seamless cross-platform functionality.
Video modes
Support for standard video modes for PC, Sun and Mac up to 1600 x 1200 resolution at 60 Hz.
True multi-platform support
Support for all computer platforms with PS / 2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure error-free operation.
Easy cascade
Expand easily by using only CATx cables to connect units and cascade connections to support up to 256 computers.
Optional audio
44.1 kHz digital stereo audio with audio-enabled CAM modules.
Option port
Integration with RS232-controlled power switches for full reboot capability.
- Flash upgrade
- Synchronise with other CATx 1000 switches for multi-video applications
- Upload/download CATx 1000 user and host information
- Remote control
Integrated CATx extender
Controlled with an ADDERLink X200 or X100 receiver and the integrated CATx extender from a distance of up to 300 m via a CATx cable.
Computer access modules
Flash-updatable CAMs are available for PS / 2, USB and Sun keyboard and mouse support with optional audio.
Standard transmission distance
KVM communication from the switch to the target devices can be up to 10 m.
Rack mount/rack drawers
One or two CATx 1000 switches can be mounted in 1U rack height, giving a maximum of 32 ports perU. Due to their small size, the units are also ideal for mounting behind KVM rack drawers.
Embedded KVM option
CATx 1000 technology can be embedded in rack drawers and industrial equipment.
Power control functions
Are supported via a dedicated serial interface.
Technical details
Approvals / Conformity
Hardware Compatibility
Video, mouse, keyboard and optional audio support for PC, Sun, Mac, RS/6000, Alpha and SGI computers with upgradeable PS/2, USB or Sun Flash computer access modules (CAMs).
Operating system compatibility
Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Video modes
Support for standard video modes for PC, Sun and Mac up to 1920 x 1200 resolution at 60 Hz. DDC emulation is supported via connected Computer Access Modules (CAMs).
Cable guidelines
CAT5e or CAT6 cabling is recommended.
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Computer connections on the switch
RJ45 (8p8c)
Peripherals Receiver (RX)
Local console
Connections on the computer
RJ45 10/100Mb Ethernet port with auto-sensing. Other connections DB9 socket for flash upgrade, synchronisation boxes and other special functions. DB9 connector for RS232-triggered power switches. DB9 connector (ADDERView IP only) for modem connection.
Physical design
Power supply unit
IEC power cable (included in delivery)
Approvals / Conformity
- CE
- FCC
Hardware Compatibility
Video, mouse, keyboard and optional audio support for PC, Sun, Mac, RS/6000, Alpha and SGI computers with upgradeable PS/2, USB or Sun Flash computer access modules (CAMs).
Operating system compatibility
Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Video modes
Support for standard video modes for PC, Sun and Mac up to 1920 x 1200 resolution at 60 Hz. DDC emulation is supported via connected Computer Access Modules (CAMs).
Cable guidelines
CAT5e or CAT6 cabling is recommended.
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Computer connections on the switch
RJ45 (8p8c)
Peripherals Receiver (RX)
Local console
- Video: HDD15 socket
- Keyboard/mouse: USB type A sockets
- Audio: 3.5 mm stereo jack
Connections on the computer
- Video: HDD15
- Keyboard/mouse: Optional USB, PS/2 and Sun MiniDin8
- Audio (optional): 3.5 mm stereo jack
RJ45 10/100Mb Ethernet port with auto-sensing. Other connections DB9 socket for flash upgrade, synchronisation boxes and other special functions. DB9 connector for RS232-triggered power switches. DB9 connector (ADDERView IP only) for modem connection.
Physical design
- Compact 1U high-metal chassis construction for rack mounting (rack mounting kits available)
- Width: 198 mm, height: 44 mm, depth: 120 mm
- Weight: 770 g
Power supply unit
IEC power cable (included in delivery)
