HW Group - HWg-SH4s - 600634
Door / access monitoring unlocks 1 electromagnetic lock and is subordinate to the SH4, DHCP, HTTP (without accessories)
Producentens varenummer:
600634
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Produktinformation "HW Group - HWg-SH4s - 600634"
The HWg-SH4s is a door unlocker subordinate to the HWg-SH4s unit. The HWg-SH4s unit opens an electromagnetic lock.
The SH4 is an ultimate access system that works with any electromagnetic lock and any RFID reader. It works in your data centre as well as in your office or even in your home. Whether you have one door or several hundred racks, the SH4 system provides a cost-effective way to manage access to your technology.
Up to 2 electromagnetic locks and 2 RFID readers of your choice can be connected to each SH4 unit. There are many locks and RFID readers on the market. The SH4 already supports the most common models and more can be added on request.
A typical application for HWg-SH4 is in a rack cabinet, not only in individual cabinets but also as part of a data centre. The HWg-SH4 unit is then installed inside the rack and the RFID reader is attached to one of the doors (or both). If there is only one HWg-SH4, it can be easily configured in offline mode via its WWW interface. However, if HWg-SH4 is installed in a data centre where one unit is installed in each cabinet, it is recommended to use the units in online mode with HWg-DCD.
A solution with decentralised HWg-SH4e/HWg-SH4s units One of the main advantages of the HWg-SH4 system is the possibility to use a control unit with several subordinate HWg-SH4e or HWg-SH4s units. In such cases, the use of an RFID reader with a keypad connected to HWg-SH4 is expected. Individual doors have their own unique numbers that correspond to a door (key/lock) number or to a rack cabinet number (in which case the number is used as the door code). In individual rack cabinets, subordinate units HWg-SH4s or HWg-SH4e are installed, which directly control the door locks.
Scope of delivery: HW Group HWg-SH4s - 600634
The SH4 is an ultimate access system that works with any electromagnetic lock and any RFID reader. It works in your data centre as well as in your office or even in your home. Whether you have one door or several hundred racks, the SH4 system provides a cost-effective way to manage access to your technology.
Up to 2 electromagnetic locks and 2 RFID readers of your choice can be connected to each SH4 unit. There are many locks and RFID readers on the market. The SH4 already supports the most common models and more can be added on request.
A typical application for HWg-SH4 is in a rack cabinet, not only in individual cabinets but also as part of a data centre. The HWg-SH4 unit is then installed inside the rack and the RFID reader is attached to one of the doors (or both). If there is only one HWg-SH4, it can be easily configured in offline mode via its WWW interface. However, if HWg-SH4 is installed in a data centre where one unit is installed in each cabinet, it is recommended to use the units in online mode with HWg-DCD.
A solution with decentralised HWg-SH4e/HWg-SH4s units One of the main advantages of the HWg-SH4 system is the possibility to use a control unit with several subordinate HWg-SH4e or HWg-SH4s units. In such cases, the use of an RFID reader with a keypad connected to HWg-SH4 is expected. Individual doors have their own unique numbers that correspond to a door (key/lock) number or to a rack cabinet number (in which case the number is used as the door code). In individual rack cabinets, subordinate units HWg-SH4s or HWg-SH4e are installed, which directly control the door locks.
Scope of delivery: HW Group HWg-SH4s - 600634
| Device: | Accessories, Expansion Board |
|---|
Features
- Controls two electromagic locks
- Is controlled and configured by a SH4 unit
- Can be managed in the free DCD2-SW
- List of supported accessories (RFID + handles)
Technical details
Applications and use:
- Protocols: DHCP, HTTP, HWg-DCD

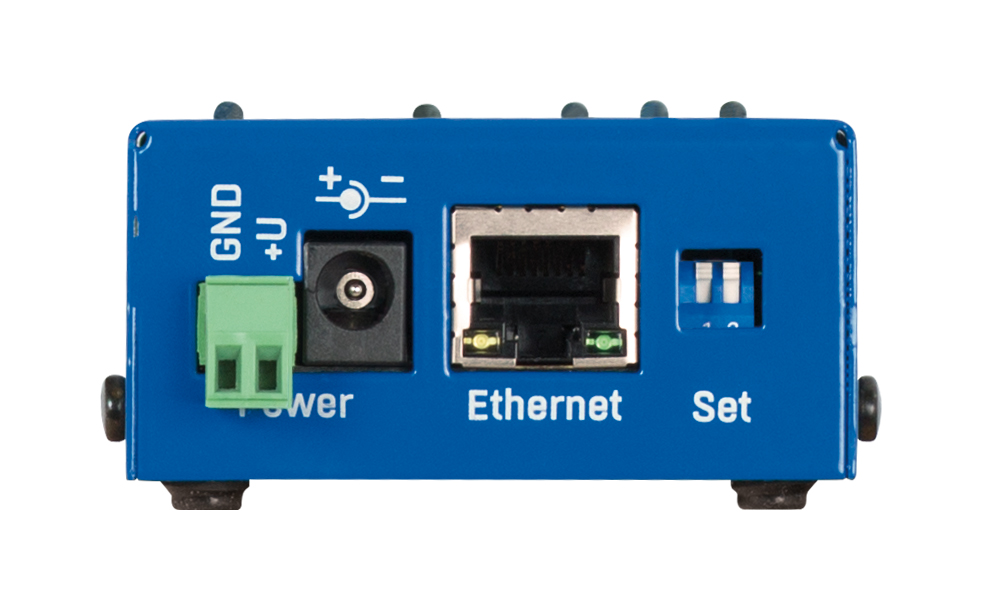

- Ethernet:10/100Mbit

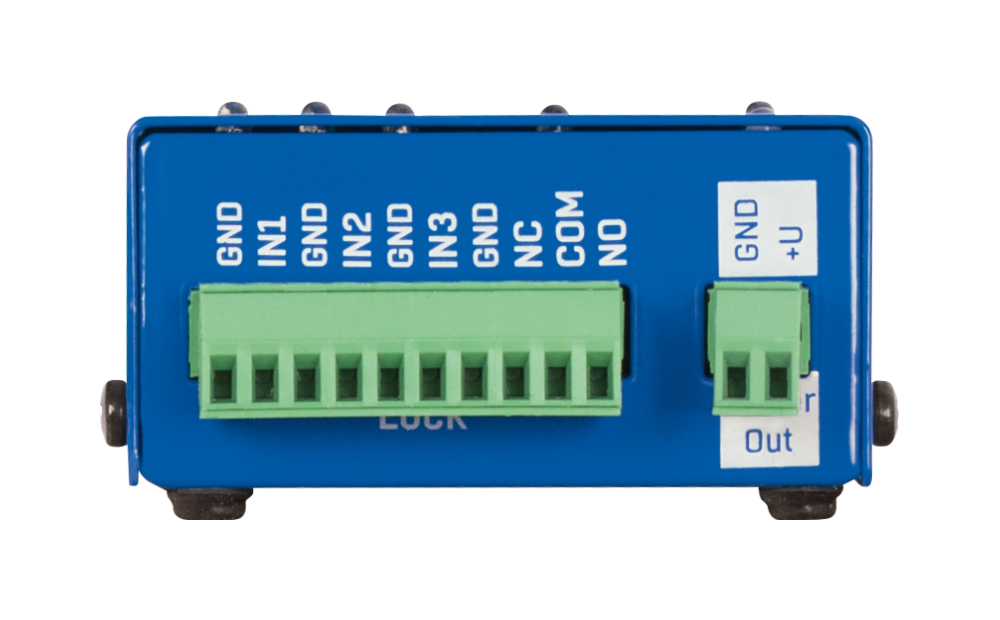

- Inputs: 3 dry contact
- Output load voltage: 24V DC/60V AC
- Output load current: 1000mA
- Operating environment: -20°C - 80°C / 0%RH - 100%RH
- Storage environment: -30°C - 60°C / 5%RH - 95%RH
- Dimensions: 68 x 70 x 33 (WxHxD) / 200g
- Installation: rack, table
- Protection class: IP40
Applications and use:
- Multi-family house access system
- Access into a company building with one gate
- Building access system with availability for other applications
- Standalone rack solution
