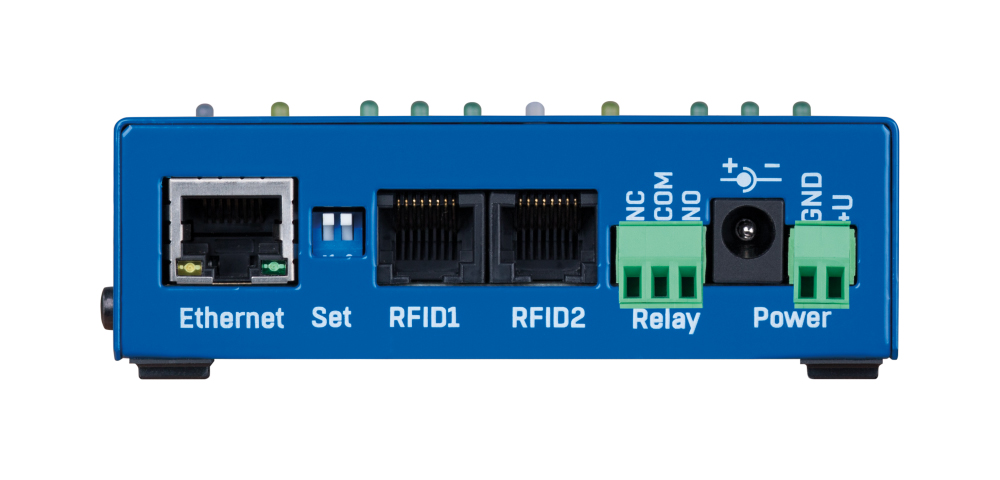

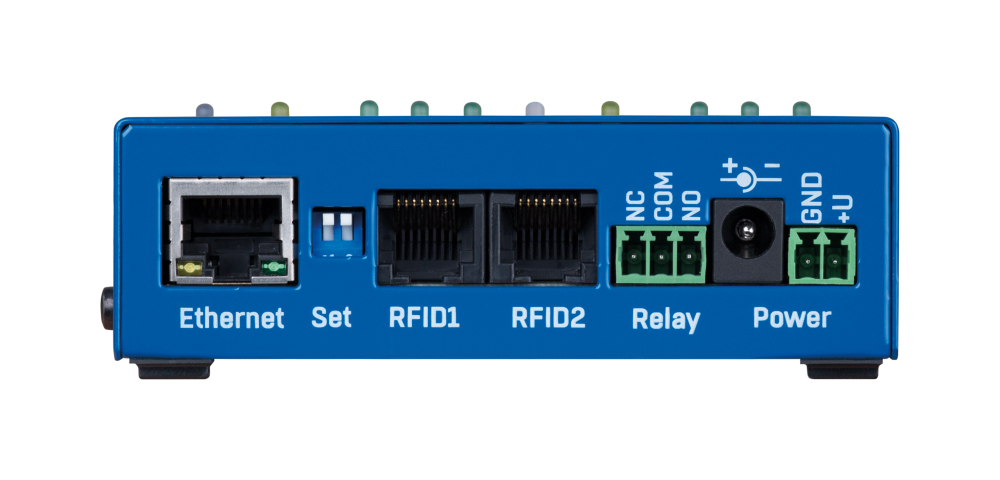

HW Group - HWg-SH4 - 600564
SH4 - 600564 Door / access monitoring Control of 2 electromagnetic locks, expandable up to max. 16 units, On/Off operation, SNMP, DHCP, HTTP, XML, SMTP, SMTP TLS, Email (without accessories)
Producentens varenummer:
600564
Vores artikelnummer:
930106
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
We will find a suitable replacement product for your requirements - please contact our sales department.
Produktinformation "HW Group - HWg-SH4 - 600564"
The SH4 is an ultimate access system that works with any electromagnetic lock and RFID reader. It works in your data centre as well as in your office or even in your home. Whether you have one door or several hundred racks, the SH4 system provides a cost-effective way to manage access to your technology.
Up to 2 electromagnetic locks and 2 RFID readers of your choice can be connected to each SH4 unit. There are many locks and RFID readers on the market. The SH4 already supports the most popular models and more can be added on request.
Scope of delivery: HW Group HWg-SH4 - 600564
Up to 2 electromagnetic locks and 2 RFID readers of your choice can be connected to each SH4 unit. There are many locks and RFID readers on the market. The SH4 already supports the most popular models and more can be added on request.
Scope of delivery: HW Group HWg-SH4 - 600564
Features
- Controls two electromagnetic locks
- Can connect two independent RFID readers (with or without keypad)
- Additional HWg-SH4e and HWg-SH4s units can be connected to the SH4 unit (max.16 units)
- Online/offline mode
- Online mode uses the central management server application HWg-DCD
- SNMP for remote monitoring in monitoring centres
- Supports SNMP traps
- List of supported accessories (RFID + handles)
Technical details
Applications and use
- Protocols: HTTP, DHCP, SNMP, SNMP v1,SNMP trap, SNTP, SMTP, SMTP TLS, XML, HWg-DCD, Syslog, Net-GSM
- E-mail addresses: 2
- Ethernet:10/100Mbit
- RS-232: yes
- Inputs: 6 dry contacts
- Alarms: 1 x SMS , 2 x Trap
- Output load voltage: 24V DC/60V AC
- Output load current: 1000mA
- PoE/48V: Optional
- Operating environment: -20°C - 80°C / 0%RH - 100%RH
- Storage environment: -30°C - 60°C / 5%RH - 95%RH
- Dimensions: 105 x 94 x 33 (WxHxD) / 400g
- Installation: Rack
- Protection class: IP40
- Housing: Metal
- Configuration: Web
Applications and use
- Multi-family house access system
- Access into a company building with one gate
- Building access system with availability for other applications
- Stand alone solution for racks
