ADDERView - RD1916IP
Keyboard drawer, 16-port, IP, 19-inch TFT LCD panel, CATx - UK version
Producentens varenummer:
RD1916IP XX
Vores artikelnummer:
490285
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Product information "ADDERView - RD1916IP"

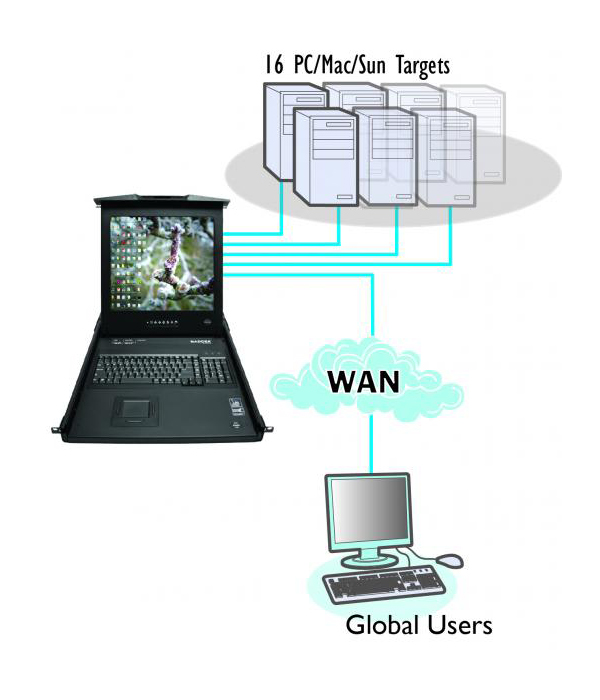

The ADDERView RDX 1000IP is the complete server room solution with local and remote management.
The 1U keyboard tray is available in most keyboard languages and features either a 17-inch or 19-inch premium Samsung SXGA 1280 x 1024 TFT LCD panel with touchpad control and advanced OSD for device selection. Control 16 computers directly from the taskbar or remotely via a secure IP connection. Expand to support up to 256 computers with CATx 1000 switches.
ADDER's CAM modules allow you to connect the switch to any type of server, including PC, Mac and Sun, via a CATx cable. Country code reporting, DDC and continuous keyboard and mouse emulation also ensure error-free operation in your unique installation.
Scope of delivery: ADDERView RD1916IP, power supply unit, CD-ROM, mounting bracket, 8x screws, 8x washers, 6x M6 cage nuts
Optional accessories:
Computer Access Modules (CAM):
- This is the UK model (English keyboard + UK IEC)
The 1U keyboard tray is available in most keyboard languages and features either a 17-inch or 19-inch premium Samsung SXGA 1280 x 1024 TFT LCD panel with touchpad control and advanced OSD for device selection. Control 16 computers directly from the taskbar or remotely via a secure IP connection. Expand to support up to 256 computers with CATx 1000 switches.
ADDER's CAM modules allow you to connect the switch to any type of server, including PC, Mac and Sun, via a CATx cable. Country code reporting, DDC and continuous keyboard and mouse emulation also ensure error-free operation in your unique installation.
Scope of delivery: ADDERView RD1916IP, power supply unit, CD-ROM, mounting bracket, 8x screws, 8x washers, 6x M6 cage nuts
Optional accessories:
Computer Access Modules (CAM):
- CATX-PS2 (PS/2 only)
- CATX-USB (USB only)
- CATX-SUNA (Sun incl. audio)
| Display size: | 19 |
|---|---|
| KVM Ports: | 6 Ports |
| Local Users: | 1 User |
| Network: | Single LAN |
Features
One local and one IP user
Allows a global user to connect via IP and share access to one of the 16 connected computers.
Global user (IP)
Use Java web browsers or Real VNC client software, which, unlike HTTPS web browsers, is specifically designed for secure, high-performance KVM-over-IP applications. Up to 1600 x 1200 resolutions with scalable windows.
True multi-platform capability and connectivity
The RDX 1000 supports all computer platforms with PS / 2, USB or Sun keyboard and mouse interfaces.
LDAP integration plus ADDER.Net management software
Automate the task of managing your network hardware and authenticating users against your existing LDAP infrastructure.
RS232 port
Use the built-in RS232 to control other external devices such as power management devices.
Configuration and expansion
The RDX allows you to configure 16 separate users internally with unique access permissions, all stored in the switch. By cascading a single CATx 1000 from the unit, 31 computers can be controlled from one remote. Easily expand further by using just one CATx cable for more units. Cascade connections are automatically detected to support up to 256 computers.
Encryption and authentication
The integrated enterprise KVM-over-IP switch uses AES128-bit encryption and RSA2048 authentication to ensure your control system remains secure at all times.
Intelligent video thresholding
ADDER's innovative active de-artifacting technology automatically calculates the ideal threshold for each computer or KVM switch, so video displays are updated with optimal immediacy - while "screen clutter" is kept to an absolute minimum.
Flexible IP screen scaling
ADDER solutions offer one-click screen scaling, allowing users to quickly adjust target devices running displays of any size and aspect ratio. ADDER solutions also allow users to easily override scaling when they need a non-scaled pixel-to-pixel mapping.
One local and one IP user
Allows a global user to connect via IP and share access to one of the 16 connected computers.
Global user (IP)
Use Java web browsers or Real VNC client software, which, unlike HTTPS web browsers, is specifically designed for secure, high-performance KVM-over-IP applications. Up to 1600 x 1200 resolutions with scalable windows.
True multi-platform capability and connectivity
The RDX 1000 supports all computer platforms with PS / 2, USB or Sun keyboard and mouse interfaces.
LDAP integration plus ADDER.Net management software
Automate the task of managing your network hardware and authenticating users against your existing LDAP infrastructure.
RS232 port
Use the built-in RS232 to control other external devices such as power management devices.
Configuration and expansion
The RDX allows you to configure 16 separate users internally with unique access permissions, all stored in the switch. By cascading a single CATx 1000 from the unit, 31 computers can be controlled from one remote. Easily expand further by using just one CATx cable for more units. Cascade connections are automatically detected to support up to 256 computers.
Encryption and authentication
The integrated enterprise KVM-over-IP switch uses AES128-bit encryption and RSA2048 authentication to ensure your control system remains secure at all times.
Intelligent video thresholding
ADDER's innovative active de-artifacting technology automatically calculates the ideal threshold for each computer or KVM switch, so video displays are updated with optimal immediacy - while "screen clutter" is kept to an absolute minimum.
Flexible IP screen scaling
ADDER solutions offer one-click screen scaling, allowing users to quickly adjust target devices running displays of any size and aspect ratio. ADDER solutions also allow users to easily override scaling when they need a non-scaled pixel-to-pixel mapping.
Technical details
Video modes
Support for standard video modes for PC, Sun and Mac.
Hardware compatibility
Video, mouse and keyboard for PC, Sun, Mac, RS / 6000, Alpha and SGI computers with upgradeable Computer Access Modules (CAMs) for PS / 2, USB or Sun Flash.
Operating system compatibility
Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Expandable platform
Cascade with CATx 1000 units to expand the system to 256 computers and one global IP user.
Connections
Physical design
Power supply
Operating temperature
0 - 35 °C
Approvals
CE, FCC
Video modes
Support for standard video modes for PC, Sun and Mac.
Hardware compatibility
Video, mouse and keyboard for PC, Sun, Mac, RS / 6000, Alpha and SGI computers with upgradeable Computer Access Modules (CAMs) for PS / 2, USB or Sun Flash.
Operating system compatibility
Works with all currently known software and operating systems, including all versions of Windows, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Expandable platform
Cascade with CATx 1000 units to expand the system to 256 computers and one global IP user.
Connections
- CATx computer connections: all RJ45 Ethernet network ports with 10/100 auto-sensing: RJ45
- 1 CATx RJ45 style for remote connection
- Power connection: locking 3-pin connector (12 V DC, 5 A)
- RS232 triggered power switching and synchronisation: DB9 connector
Physical design
- Compact 1U rack-mountable metal enclosure construction
- Width: 589 mm, height: 44 mm, depth: 650 mm
- Weight: RD1716IP 15 kg, RD1916IP 17 kg
Power supply
- Mains adapter with IEC mains cable (included in delivery)
- Input: 100-240VAC 0.5A 50-60Hz
- Output: 12VDC 5A
Operating temperature
0 - 35 °C
Approvals
CE, FCC
