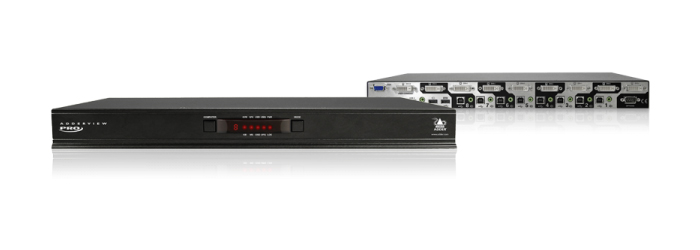

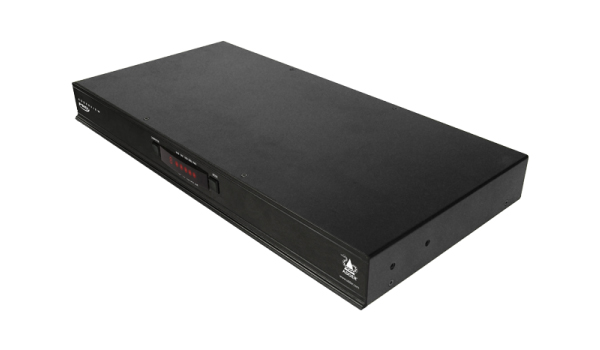

ADDERView - AV8PRO-DVI
USB 2.0, DVI und Audio KVM Switch - 8 Ports
Producentens varenummer:
AV8PRO-DVI
Vores artikelnummer:
490234
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Product information "ADDERView - AV8PRO-DVI"
Part of the ADDERView PRO range, the AV8PRO DVI is a KVMA switch that allows eight computers to be controlled from a single KVM console via dual-link DVI or high-resolution analogue video connections. This eight-port switch is available in four-port (AV4PRO DVI), VGA or DisplayPort variants.
Scope of delivery: ADDERView AV8PRO-DVI, power supply, rubber feet, CD-ROM, two 19" rackmount brackets incl. four screws
- Access multiple applications

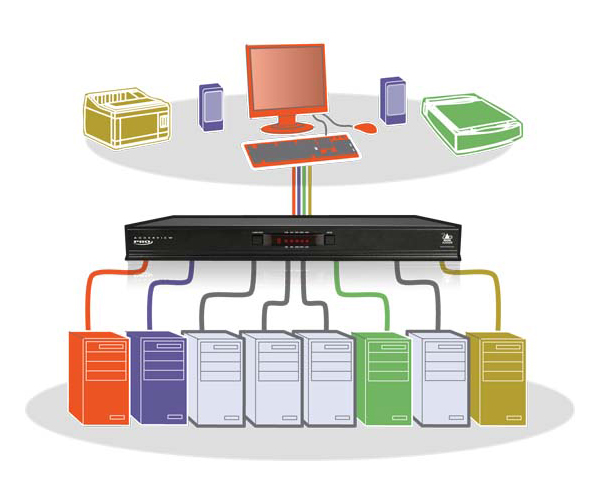

Allow one display, keyboard and mouse to switch control between up to eight computers - Smooth and reliable USB switching
Adder's USB True Emulation ensures fast and reliable switching
Scope of delivery: ADDERView AV8PRO-DVI, power supply, rubber feet, CD-ROM, two 19" rackmount brackets incl. four screws
| Graphic Port: | DVI |
|---|---|
| KVM Ports: | 8 Ports |
| Keyboard & Mouse: | USB |
| Option: | Audio |
| Power Supply: | Single AC |
| Remote Users: | 1 User |
Features
Enhanced DDC EDID Profile
Ensures that the graphics card is always optimised for use with your display.
High resolution video
Dual-link DVI capabilities allow users to work at very high resolutions, including 2K (2048 x 1080), WQXGA (2560 x 1600) and 4K (4096 x 2160) per head, with a choice of digital or analogue.
USB True Emulation
USB 2.0 enables connection to any USB user interface device from mice and keyboards to graphics tablets, jog shuttles, joysticks and 3D explorers.
Independent USB device selection
Switching options allow the operator to use a keyboard and mouse on one computer while USB peripherals are connected to others.
Channel selection options
Switch with selectable keyboard hotkeys, three-button mice or front panel controls, or add an RC4 remote control.
Broad USB 2.0 HID support
A range of USB devices can be connected, including printers, scanners and non-standard user interface devices.
'Options' port for control, synchronisation and upgrade.
Port allows remote switching with simple ASCII codes; units to be switched synchronously to create a multi-video head switching system; and firmware upgrades via the same port.
Enhanced DDC EDID Profile
Ensures that the graphics card is always optimised for use with your display.
High resolution video
Dual-link DVI capabilities allow users to work at very high resolutions, including 2K (2048 x 1080), WQXGA (2560 x 1600) and 4K (4096 x 2160) per head, with a choice of digital or analogue.
USB True Emulation
USB 2.0 enables connection to any USB user interface device from mice and keyboards to graphics tablets, jog shuttles, joysticks and 3D explorers.
Independent USB device selection
Switching options allow the operator to use a keyboard and mouse on one computer while USB peripherals are connected to others.
Channel selection options
Switch with selectable keyboard hotkeys, three-button mice or front panel controls, or add an RC4 remote control.
Broad USB 2.0 HID support
A range of USB devices can be connected, including printers, scanners and non-standard user interface devices.
'Options' port for control, synchronisation and upgrade.
Port allows remote switching with simple ASCII codes; units to be switched synchronously to create a multi-video head switching system; and firmware upgrades via the same port.
Technical details
Video resolutions
Dual-link DVI capabilities allow users to work at very high resolutions, including 2K (2048 x 1080) and 4K (4096 x 2160) for film post-production, as well as WQXGA (2560 x 1600).
Audio
3.5 mm stereo jack
Approvals / Compliance
Standards
USB 2.0 Type B, low, full and high speed
Cable requirements
All standard cables
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Connections - User
Connections - Computer
USB 2.0 type B, dual-link DVI-I, 3.5 mm stereo jack
Physical design
1U high metal enclosure 482 mm / 19 "(W), 215 mm / 8.5" (D), 45 mm / 1.8 "(H)
Power
2.5 mm DC socket (power supply unit included), 100-240 VAC 50 / 60Hz input to power supply unit, 5 VDC 2A output from power supply unit
Software compatibility
Works with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare, etc.
Video resolutions
Dual-link DVI capabilities allow users to work at very high resolutions, including 2K (2048 x 1080) and 4K (4096 x 2160) for film post-production, as well as WQXGA (2560 x 1600).
Audio
3.5 mm stereo jack
Approvals / Compliance
- CE
- FCC
Standards
USB 2.0 Type B, low, full and high speed
Cable requirements
All standard cables
Operating temperature
0 to 40 ° C / 32 to 104 ° F.
Connections - User
- Video: HDD15, dual-link DVI-D
- Keyboard / Mouse: 2 x USB type A.
- Switched USB: 2 x USB 2.0 type A.
- Audio: 3.5 mm stereo jack
Connections - Computer
USB 2.0 type B, dual-link DVI-I, 3.5 mm stereo jack
Physical design
1U high metal enclosure 482 mm / 19 "(W), 215 mm / 8.5" (D), 45 mm / 1.8 "(H)
Power
2.5 mm DC socket (power supply unit included), 100-240 VAC 50 / 60Hz input to power supply unit, 5 VDC 2A output from power supply unit
Software compatibility
Works with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare, etc.
