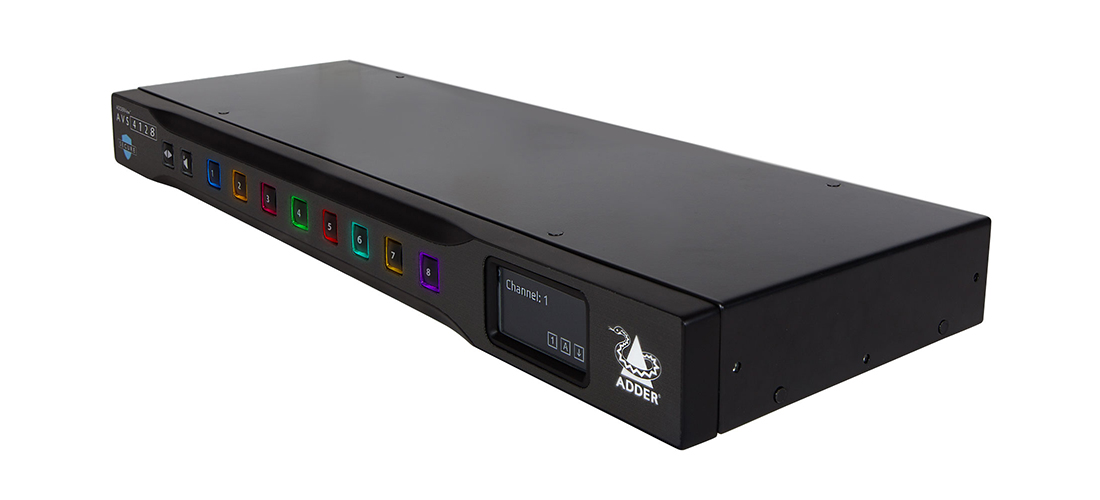

ADDERView - AVS-4128
DP/HDMI 4K/60Hz Flexi-Switch (8-Port)
Producentens varenummer:
AVS-4128
Vores artikelnummer:
490546
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Product information "ADDERView - AVS-4128"

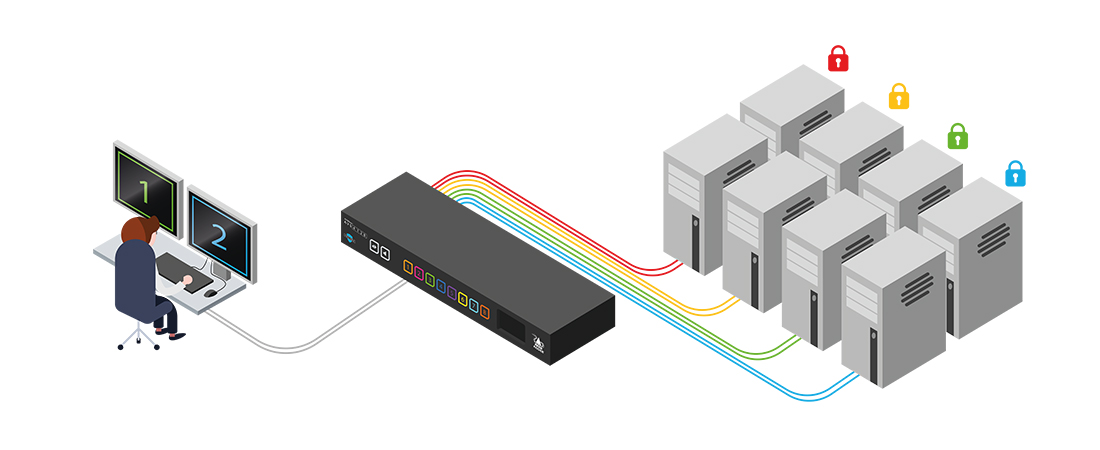

The ADDERView Secure Flexi-Switch is designed for applications that require more features than a standard 4-port KVM switch can provide. The Secure Flexi-Switch has eight input computer ports that can be connected to a combination of single and dual head computers. Allows the user real-time control of up to two computers simultaneously.
Scope of delivery: ADDERView AVS-4128, power supply, quick start guide.
Optional accessories:
- NIAP PP 4.0 compliant design
- TAA compliant
Scope of delivery: ADDERView AVS-4128, power supply, quick start guide.
Optional accessories:
- AS-4CR: ADDER Secure 4-Port Card Reader
- AS-UHF: ADDER Secure USB port extension
- RMK14: Rackmount kit
- VSCD10: DP video cable (2m)
- VSCD15: HDMI video cable (2m)
- VSC22: Audio cable (2m)
- VSC24: USB cable (type A to type B - 2m)
| Graphic Port: | DisplayPort, HDMI |
|---|---|
| KVM Ports: | 8 Ports |
| Keyboard & Mouse: | USB |
| Option: | Audio |
| Power Supply: | Single AC |
Features
Unidirectional keyboard, video, mouse and audio data paths.
Unidirectional optical diodes ensure that data paths run in only one direction, preventing data loss from shared peripherals. A unidirectional structure also protects against timing analysis or forced malfunction attacks and prevents computers from affecting the operation of shared circuits.
Keyboard Locks Status
Shows status of keyboard locks (CAPS-LOCK, NUM-LOCK, SCROLL-LOCK) , which are blocked by unidirectional data paths.
No shared RAM between channels
The keyboard and mouse processor is switched off and reset at each switchover to prevent shared RAM leaks. All data buffers are actively cleared after they are used.
Automatic switching (configuration option)
Free-flow KVM and audio control between ports without having to press any buttons. Simply move the mouse between windows.
Flexible connections
The user can switch between a combination of single and dual head computers. Two single-head computers can be controlled simultaneously.
Hardware tamper protection
Holographic tamper-evident labels protect the product's casing and give a clear visual indication when it has been opened or damaged.
Video performance
Up to UHD 4K video resolution at 60 fps for graphics-intensive applications that require very high quality.
Non-reprogrammable firmware
No port can be used to access the product's firmware or memory. Firmware is permanently stored in non-reprogrammable read-only memory (ROM) to prevent changes. Firmware integrity is checked by a self-test at power-up. Detection of a critical error disables the unit and provides a clear visual indication to the user.
Restricted USB function
The USB ports only accept HID (Human Interface Devices) such as keyboards and mice. Other devices, such as USB memory drives, are actively prohibited.
Channel identification
Reduce the likelihood of operator error by displaying a name for each channel and its security classification on the e-paper display. The colour of the channel LED can also be configured to reflect the security classification.
Unidirectional keyboard, video, mouse and audio data paths.
Unidirectional optical diodes ensure that data paths run in only one direction, preventing data loss from shared peripherals. A unidirectional structure also protects against timing analysis or forced malfunction attacks and prevents computers from affecting the operation of shared circuits.
Keyboard Locks Status
Shows status of keyboard locks (CAPS-LOCK, NUM-LOCK, SCROLL-LOCK) , which are blocked by unidirectional data paths.
No shared RAM between channels
The keyboard and mouse processor is switched off and reset at each switchover to prevent shared RAM leaks. All data buffers are actively cleared after they are used.
Automatic switching (configuration option)
Free-flow KVM and audio control between ports without having to press any buttons. Simply move the mouse between windows.
Flexible connections
The user can switch between a combination of single and dual head computers. Two single-head computers can be controlled simultaneously.
Hardware tamper protection
Holographic tamper-evident labels protect the product's casing and give a clear visual indication when it has been opened or damaged.
Video performance
Up to UHD 4K video resolution at 60 fps for graphics-intensive applications that require very high quality.
Non-reprogrammable firmware
No port can be used to access the product's firmware or memory. Firmware is permanently stored in non-reprogrammable read-only memory (ROM) to prevent changes. Firmware integrity is checked by a self-test at power-up. Detection of a critical error disables the unit and provides a clear visual indication to the user.
Restricted USB function
The USB ports only accept HID (Human Interface Devices) such as keyboards and mice. Other devices, such as USB memory drives, are actively prohibited.
Channel identification
Reduce the likelihood of operator error by displaying a name for each channel and its security classification on the e-paper display. The colour of the channel LED can also be configured to reflect the security classification.
Technical details
Approvals / Compliance
Video resolutions
The system supports UHD 4K resolutions of maximum 3840 x 2160 at 60 Hz.
Software Compatibility
USB HID of Windows, Linux and Mac host computer operating systems, including touch screens compatible with Microsoft Digitizer.
Console connections
Computer connections
8x dual ports for DP / HDMI, USB type B, audio 3.5 mm
Front panel
Physical design
18.9"/480 mm (w), 1.85"/47 mm (h), 5.98"/152 mm (d) 2.6 kg (5.73 lbs)
Power supply
Operating temperature
0 ° C to 40 ° C
Storage temperature
-20 ° C to 60 ° C
Humidity
0-80%, non-condensing
Approvals / Compliance
- CE
- FCC Class A
- NIAP PP 4.0 compliant design for Peripheral Sharing Devices (PSD)
Video resolutions
The system supports UHD 4K resolutions of maximum 3840 x 2160 at 60 Hz.
Software Compatibility
USB HID of Windows, Linux and Mac host computer operating systems, including touch screens compatible with Microsoft Digitizer.
Console connections
- 2x Dual connector for DP / HDMI, USB type A, audio 3.5 mm
- RJ12 for remote control

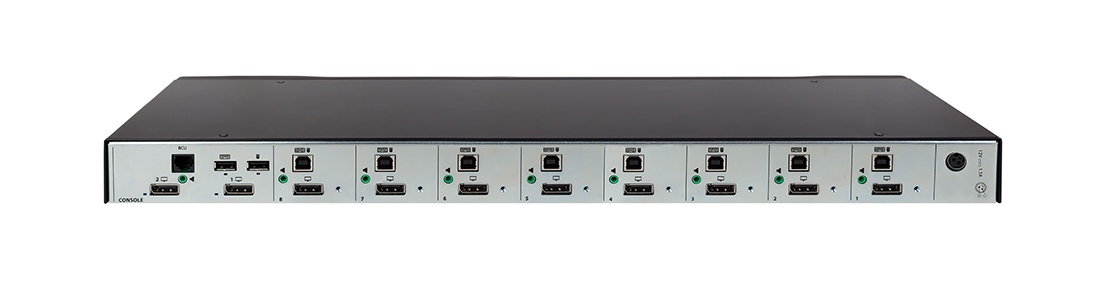

Computer connections
8x dual ports for DP / HDMI, USB type B, audio 3.5 mm

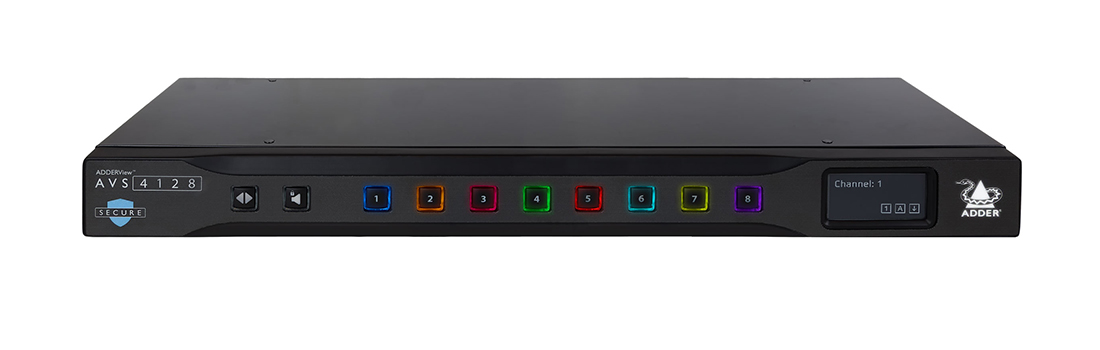

Front panel
- Monitor selection button
- Audio hold button and status LED
- 8x channel selection button and status LED 212x104 E-paper for status display
Physical design
18.9"/480 mm (w), 1.85"/47 mm (h), 5.98"/152 mm (d) 2.6 kg (5.73 lbs)
Power supply
- 100 - 240 V AC, 47/63 Hz
- 12 V DC 30 W output from power supply unit
Operating temperature
0 ° C to 40 ° C
Storage temperature
-20 ° C to 60 ° C
Humidity
0-80%, non-condensing
