ServerLift RS-500X Rail Lift
Extension for manual or automatic ServerLIFT lift to insert and finally mount IT equipment at a specific angle in racks and their guide rails. Maximum tilt: 5 degrees, tilt adjustment via hand crank. Maximum load: up to 227kg.
Producentens varenummer:
RS500-X
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "ServerLift RS-500X Rail Lift"

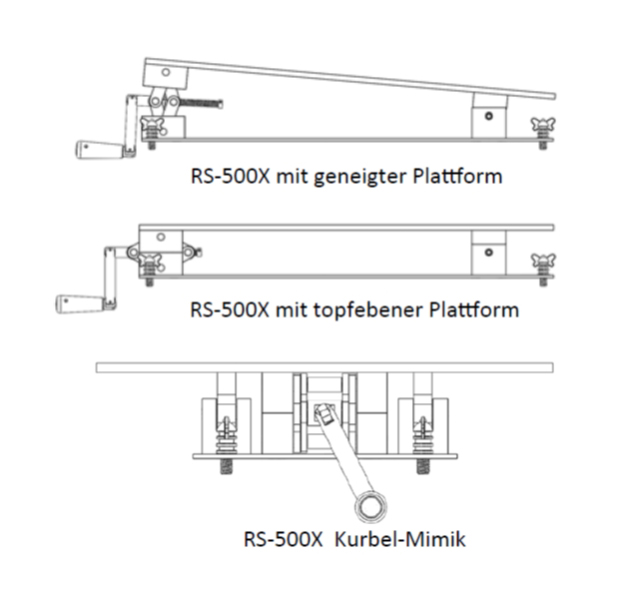

The RS-500X™ Rail Lift supports server equipment while giving the operator control over the angle of the server at all points of installation or removal from the rails. Capable of attaching to any ServerLIFT platform, the RS-500X can be used to easily tilt servers into slotted guard rails or keep them level for non-slotted, bolt-in installs.
Scope of delivery: ServerLift RS-500X Rail Lift
Scope of delivery: ServerLift RS-500X Rail Lift
Technical details
Special features
When used, never exceed the maximum permissible load of the respective ServerLIFT model or that of the RS-500X. The lower value is always the limiting factor! If the RS-500X is used together with the ServerLIFT SL-350X, for example, make sure that the lift's own maximum load of just under 159 kg is not exceeded!
Special features
- Load surface accessories for ServerLIFT hoists
- Easy installation of IT equipment in the rack
- Easy installation and removal of IT equipment even with J-shaped mountings on the guide rails in the rack
- Hand crank with multi-joint design
- Easy handling even in confined spaces and under difficult installation conditions
- Maximum load: up to 227kg
When used, never exceed the maximum permissible load of the respective ServerLIFT model or that of the RS-500X. The lower value is always the limiting factor! If the RS-500X is used together with the ServerLIFT SL-350X, for example, make sure that the lift's own maximum load of just under 159 kg is not exceeded!
