ServerLIFT SL-500FX Front-Loading Lift
Automatic lift for installation and transport of heavy IT components (server racks) in data centres, load capacity up to 230 kg, height up to 2.85m, front loading system. Built-in TouchSTOP function, motor stops when touching the ceiling etc. 20" immersion depth with optional extension (accessory). Heavy duty platform resists sagging and twisting. Tilt adjustment for stepless insertion. . Special casters for trackless travel in server room, effortlessly makes transitions. Dual locking wheels.
Producentens varenummer:
SLF500‐XI
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "ServerLIFT SL-500FX Front-Loading Lift"

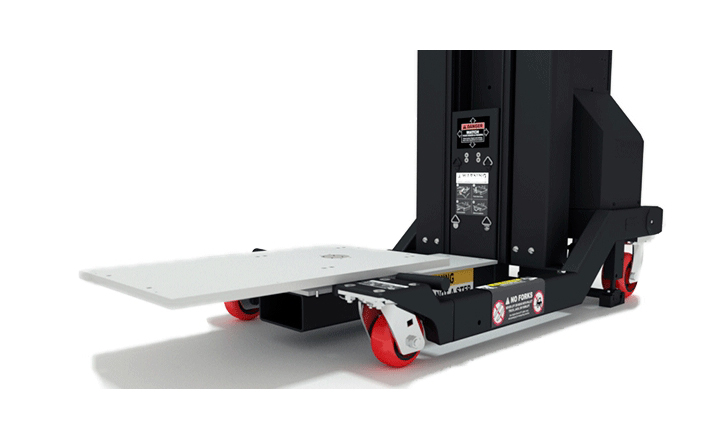

The ServerLIFT SL-500FX™ Front-Loading Powered lift is optimal for uniquely designed data centers, manufacturers, test labs, and system integrators with wider aisles, lots of space, or obstacles in front of the rack. Equipped with all of the features of the ServerLIFT SL-500X® side-loading lift, the SL-500FX unit has a unique front-loading configuration, allowing for support up to 11.5″ (29.2 cm), or 20″ (50.8 cm) when used with the FE-3X™ attachment, into the rack.
Scope of delivery: ServerLIFT SL-500FX Front-Loading Lift
Scope of delivery: ServerLIFT SL-500FX Front-Loading Lift
Features
- Fully electrically liftable
- Built-in Easy Glide shelf
- QuickTILT levelling system

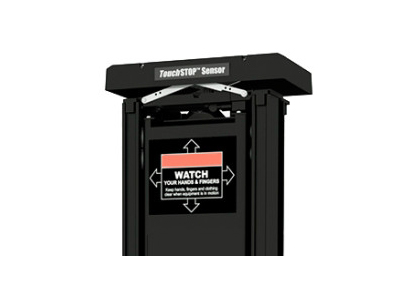

- TouchSTOP sensor
- Fully enclosed
- Full access to the area
- Low profile
- Front-loading capability
- Two-point stabiliser brake
- Compact design
- Easy-grip handles
- Large swivel castors
Technical details
1 year battery warranty.
The fully automatic Severlift models cannot be used without battery, via mains cable.
Special features
- Width: 62.5 cm
- Height: 1.12 m
- Platform height retracted: 16.8 cm
- Platform height extended: 2.44 m
- Height lowered: 1.76 m
- Height raised: 2.85 m
- Platform movement forward: 29.2 cm
- Moving platform width: 36.8 cm
- Platform length: 61 cm
- Total platform width: 61 cm
1 year battery warranty.
The fully automatic Severlift models cannot be used without battery, via mains cable.
Special features
- Lifts up to 227 kg load to a height of 2.85m within 60 seconds
- Compact design provides easy movement and control in data centre environments with narrow rack aisles
- Easy loading from the front, left or right ensures optimal alignment of equipment for easy commissioning in server racks
- Retractable platform positions IT equipment horizontally for easy installation
- Easy dexterous control in confined spaces and narrow rack aisles
- Safe for use in data centres: hydraulic-free chassis and fail-safe battery
- Sturdy steel construction
- Easy installation and quick commissioning
- Easy to turn and rotate, two-point braking system for super-secure hold
