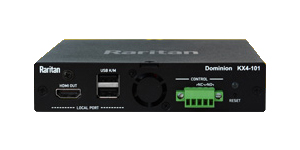

Raritan - DKX4-101
Powerful single-port KVM-over-IP switch for 4K Ultra HD, with local HDMI/USB pass-through port
Listepris:
6.533,65 kr.*
Forhandlerpris - Login
Leveringstid: Varer er bestilt, vil være tilgængelige igen inden længe
Producentens varenummer:
DKX4-101
Vores artikelnummer:
211769
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Raritan - DKX4-101"
The Dominion® KX IV-101 (DKX4-101), the most powerful KVM-over-IP switch, from Raritan, delivers a new level of Ultra HD 4K performance for remote access and management. More powerful and flexible than any other KVM-over-IP solution, it supports higher video resolutions, faster frame rates, higher video quality and faster virtual media.
The KX IV-101 supports unblocked, Java-free, BIOS-level remote access to a server, PC or workstation over LAN, WAN or even the Internet. As a native HDMI device, the KX IV-101 is offered with various cables/adapters for VGA, DVI, Mini DisplayPort and USB-C. It offers the user maximum flexibility when accessing remote computers via user station, laptop, PC or smartphone. The KX IV-101 supports many popular Dominion features such as: Virtual Media, Absolute Mouse Synchronisation, LDAP/Radius/AD authentication, AES encryption, support for up to 8 simultaneous sessions and much more.
Scope of delivery: Raritan DKX4-101
The KX IV-101 supports unblocked, Java-free, BIOS-level remote access to a server, PC or workstation over LAN, WAN or even the Internet. As a native HDMI device, the KX IV-101 is offered with various cables/adapters for VGA, DVI, Mini DisplayPort and USB-C. It offers the user maximum flexibility when accessing remote computers via user station, laptop, PC or smartphone. The KX IV-101 supports many popular Dominion features such as: Virtual Media, Absolute Mouse Synchronisation, LDAP/Radius/AD authentication, AES encryption, support for up to 8 simultaneous sessions and much more.
Scope of delivery: Raritan DKX4-101
| Graphic Port: | HDMI |
|---|---|
| KVM Ports: | 1 Port |
| Power Supply: | Single AC |
Features
- Ultra HD, 4K30 HDMI video
- 1080p at 60 frames per second
- 1080p in high quality with 4:4:4 colour
- HDMI audio
- Java-free access, anytime, anywhere
- Input/output control for devices
- PC / server power on/off
- Laptop / PC / user station
- New platform / user interface
- Local pass-through port
- Integration with CommandCenter and user station
Technical details
- Form factor: 0-U form factor, including L-bracket, with RACK-KIT-DKX4-101-3 3 units can be mounted in a rack with 1 U
- Power supply: Single, automatic voltage detection and cable with lockable plug, 100-240 V AC 50-60 Hz, 12.5 W/20 W max./operation
- Operating temperature/humidity: 0 °C-55 °C / 20%-80% r. h.
- Storage temperature/humidity: -20 °C-80 °C / 10%-90% r. h.
- Dimensions / Weight: 140 mm (W) x 144 mm (D) x 30 mm (H), 0.65 kg
- Remote connection network protocols: 1 Gigabit Ethernet port (RJ-45) dual-stack IPv6/IPv4, TCP/IP, Telnet, SSH, HTTPS, RADIUS, LDAP, DHCP and SNMP V2 and V3
- Server connection: HDMI port with cable with lockable connector, USB-B to USB-A port of server
- Local port: HDMI pass-through port. 2x USB-A port for keyboard and mouse control
- Video resolution examples: 1024 x 768 at 60 Hz, 1280 x 720 at 60 Hz, 1280 x 1024 at 60 Hz, 1360 x 768 at 60 Hz, 1400 x 1050 at 60 Hz, 1440 x 900 at 60 Hz, 1600 x 1200 at 60 Hz, 1920 x 1080 at 60 Hz, 1920 x 1200 at 60 Hz, 1680 x 1050 at 60 Hz, 2560 x 1440 at 60 Hz, 2560 x 1600 at 60 Hz, 3840 x 2160 at 30 Hz, 4096 x 2160 at 30 Hz
- Terminal block: Output pins: N/O, N/C, ground (floating contact). Switching capacity: 2 A/30 V DC, or 0.5 A/60 V DC or 0.3 A/125 V AC
- Input pins: Input and input ground (potential-free contact). Does not support voltage inputs
