QuWireless - A955S
Integrated multi-band LTE omni antennas + WiFi omni antennas + place to install Teltonika RUT956 or RUT955 (All-in-one)
Producentens varenummer:
A955S
Vores artikelnummer:
860003
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "QuWireless - A955S"
Integrated multi-band LTE omni antennas + WiFi omni antennas + place to install Teltonika RUT956 or RUT955 (All-in-one)

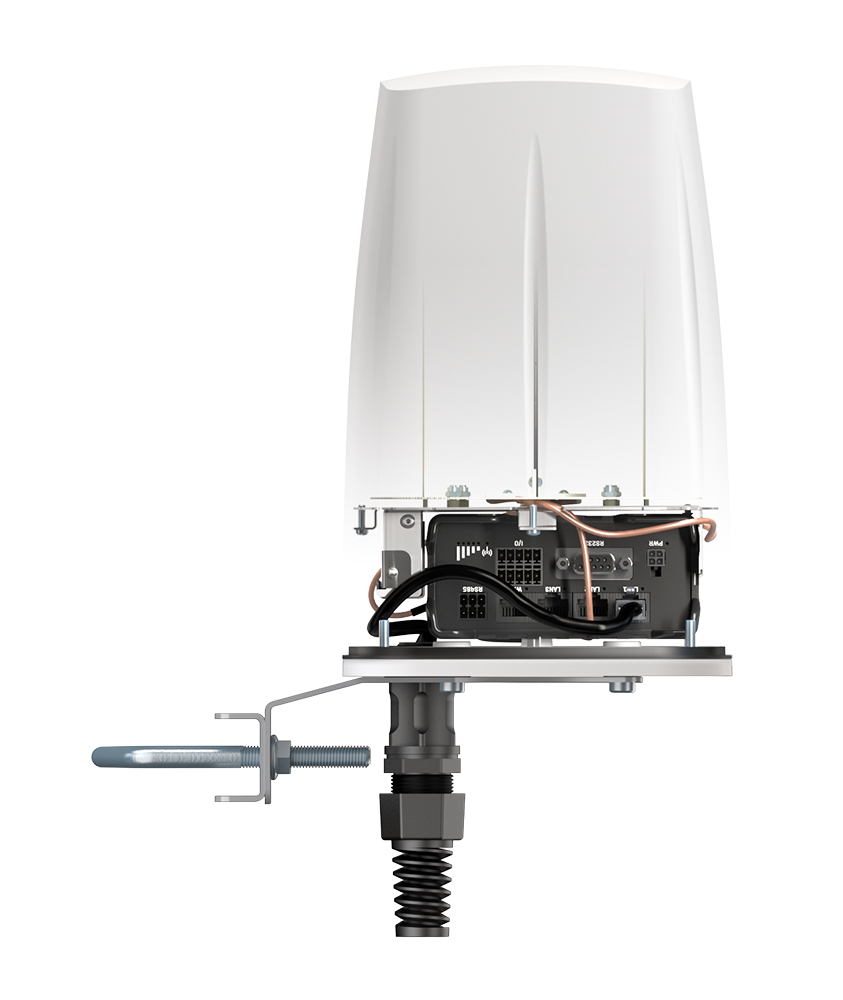

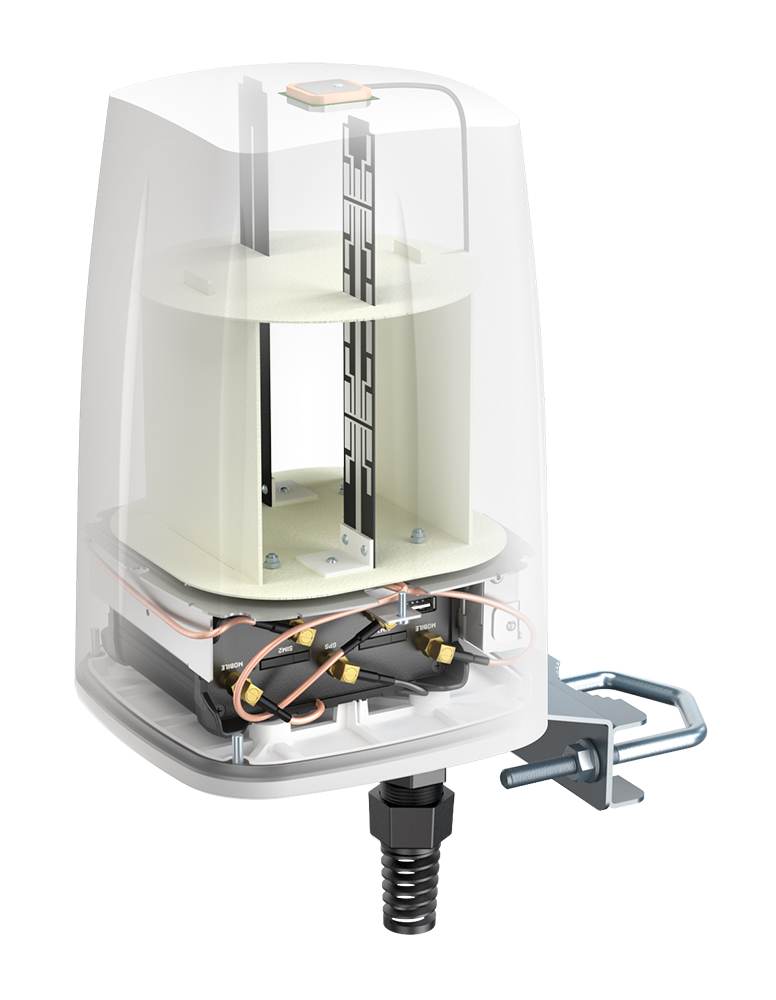

QuSpot omni LTE antenna for Teltonika RUT956, RUT955 or RUT906 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi and GPS antenna. If you use RUT956, RUT955 or RUT906 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
SCOPE OF DELIVERY: QuWireless - A955S
| Antennas: | Outdoor Antenna |
|---|
Features
- Outdoor antenna works in any weather conditions, IP67
- Antenna perfectly matched with the router
- Passive PoE support
Technical Specifications
LTE Antenna Specification
- Frequency:
- 694 - 960 MHz
- 1.7 - 2.2 GHz
- 2.2 - 2.7 GHz
- Gain:
- 694 - 960 MHz: 2 dBi
- 1.7 - 2.2 GHz: 2 dBi
- 2.2 - 2.7 GHz: 4 dBi
- Supported LTE/5G Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
- VSWR: <1.60, max <2.00
- Radiation Pattern: 360°/35° ±5°
- Polarization: Vertical
- Impedance: 50 Ω
Wi-Fi Antenna Specification
- Frequency: 2.4 - 2.5 GHz
- Gain: 6 dBi
- VSWR: <1.70, max <2.00
- Radiation Pattern: 360°/25° ±5°
- Polarization: Vertical
- Impedance: 50 Ω
Mechanical Specification
- Materials: ABS, Aluminum, PTFE
- Connector Type: RJ45
- Protection Rating: IP67
- Dimensions:
- 160 x 160 x 240 mm
- 6.3 x 6.3 x 9.45 inches
- Weight:
- 1.5 kg
- 3.31 lbs
- Operating Temperature:
- -40°C to 80°C
- -40°F to 176°F
- Mast Diameter:
- 40-60 mm
- 1.57-2.36 inches
Frequency Bands
- LTE / 4G GSM: 694 MHz / 960 MHz
- LTE / 4G UMTS: 1710 MHz / 2170 MHz
- LTE / 4G WCS DARS: 2300 MHz / 2400 MHz
- LTE / 4G: 2400 MHz / 2700 MHz
