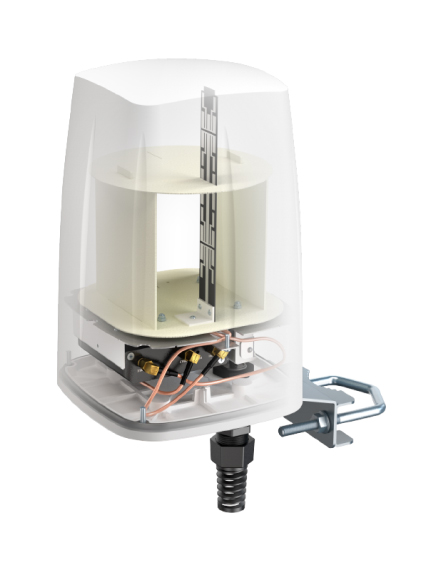

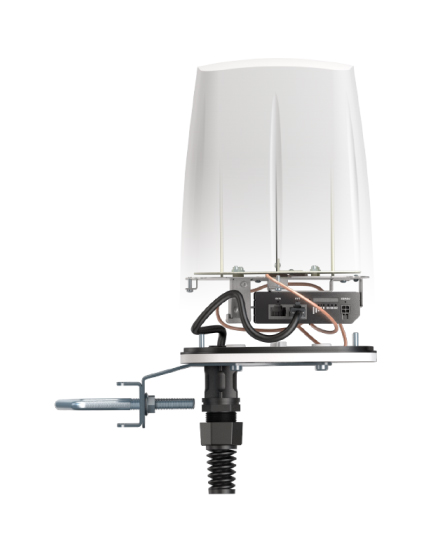

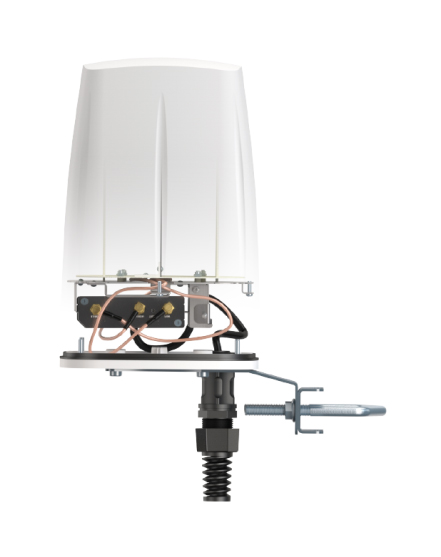

QuWireless - A240S
Integrated multi-band LTE omni antenna + WiFi omni antenna + place to install Teltonika RUT241, RUT240, RUT230 or RUT200 (All-in-one)
QuSpot omnidirectional LTE antenna for Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 routers is a perfect outdoor device for mobile and fixed installations e.g. CCTV, hotspots, industrial areas, campervans, ships etc.. In addition to having omnidirectional, multi-band LTE antennas, it has also embedded omnidirectional Wi-Fi antenna. If you use RUT2xx with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
SCOPE OF DELIVERY: QuWireless - A240S
| Antennas: | Indoor Antenna, Outdoor Antenna |
|---|
Features
- Outdoor antenna works in any weather conditions, IP67
- Antenna perfectly matched with the router
- Wall or mast mounting system
Technical Specifications
LTE Antenna Specification
- Frequency:
- 694 - 960 MHz
- 1.7 - 2.2 GHz
- 2.2 - 2.7 GHz
- Gain:
- 694 - 960 MHz: 2 dBi
- 1.7 - 2.2 GHz: 2 dBi
- 2.2 - 2.7 GHz: 4 dBi
- Supported LTE/5G Bands: 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256
- VSWR: <1.60, max <2.00
- Beamwidth: 360°/35° ±5°
- Polarization: Vertical
- Impedance: 50 Ω
Wi-Fi Antenna Specification
- Frequency: 2.4 - 2.5 GHz
- Gain: 6 dBi
- VSWR: <1.70, max <2.00
- Beamwidth: 360°/25° ±5°
- Polarization: Vertical
- Impedance: 50 Ω
Mechanical Specification
- Materials: ABS, Aluminum, PTFE
- Connector Type: RJ45
- Protection Rating: IP67
- Dimensions:
- 160 x 160 x 240 mm
- 6.3 x 6.3 x 9.45 inches
- Weight:
- 1.5 kg
- 3.31 lbs
- Operating Temperature:
- From -40°C to 80°C
- From -40°F to 176°F
- Mast Diameter:
- 40-60 mm
- 1.57-2.36 inches
Frequency Bands
- LTE / 4G GSM: 694 MHz / 960 MHz
- LTE / 4G UMTS: 1710 MHz / 2170 MHz
- LTE / 4G WCS DARS: 2300 MHz / 2400 MHz
- LTE / 4G: 2400 MHz / 2700 MHz
