Nexmosphere - XZ-W11
Product information "Nexmosphere - XZ-W11"
XZ range
The Nexmosphere XZ range presents a diverse selection of sensors that detect the status and characteristics of the objects to which they are applied. This allows for the logging and seamless communication of these acquired values and for the system to actively respond to predefi ned critical threshold values. With this, the XZ range provides a robust solution for object analysis and programming responsive actions, enhancing its utility across a spectrum of applications.

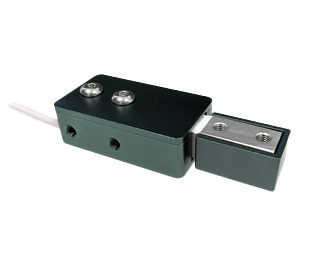

Weight sensor - bar type
The bar-type weight sensor is designed for easy installation in product displays across various retail environments. With high accuracy, this sensor detects shelf weight, promptly triggering API messages when a product is lifted or placed back. In scenarios where multiple distinct products populate the shelf, the sensor distinguishes the lifted product by analyzing detected weight differences, even in cases of subtle variations between items.
PACKAGE CONTENTS: XZ-W11
| Temperature Range: | Standard Temperature Range |
|---|
Features
- Pick-up detection through weight difference
- Weight measurement
- Anomaly detection
- Plug and smile interface
- Compatible with any Nexmosphere Xperience controller
- Powered by and configurable with Nexmosphere Xperience controller
- Store up to 16 unique items in the memory of the sensor
- Adjustable weight measurement settings
- Responsive triggers upon pick-up and placement
- Accurate weight measurement
- Adjustable weight measurement settings
- Anomaly API message upon detection
- Anomaly does not interfere with normal sensor operation
- Easy installation with M5 bolts
- Smart sensor casing facilitates multiple installation options
- Unique cable connection (bottom feed or side feed) enables easy cable installation
- Calibration features guarantee accurate weight measurements
Mounting specifications
The XZ weight sensor has 2 ends. The larger end is to be attached to a firm structural part of your fixture. The platform on which the items are placed is to be attached to the smaller end of the sensor. Installation is done with M5 bolts. The weight sensor will only work stable when installed firmly. Please see the product manual for elaborate mounting specifications and options.
Thermal specifications
- Operating temperature: +10'C...+40'C/ +50'F ... +104'F
- Storage temperature: -20'C...+50'C/ -4'F ... +122'F
Electrical specifications
- Operating voltage: 5V DC (via X-talk interface)
- Power consumption: 100mA
Weight measurement specifications
- Maximum weight: 10KG
- Minimum weight: 5g
- Accuracy: 0.5-2g
Miscellaneous
- Custom cable lengths available on request
- 2-year warranty (optional 3-year extended warranty available)
Mechanical dimensions
- LxWxH: 85.5 x 31 x 17.5 mm
- Fixation: M5 bolts (not included)
