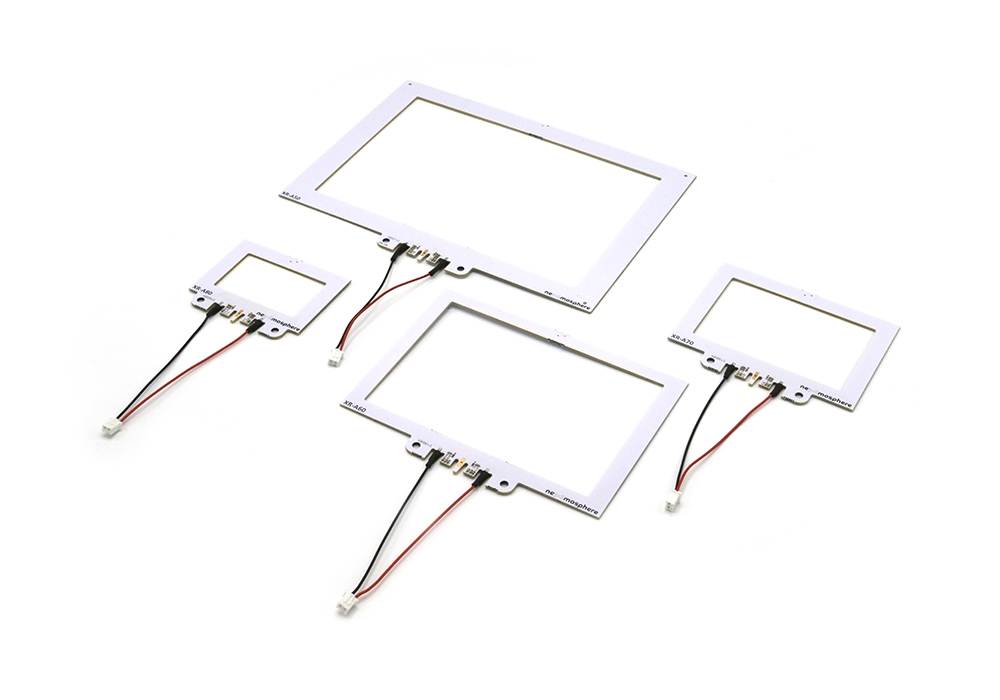

Nexmosphere - XR-A60
RFID antenna rectangular A6, 148x105mm
Producentens varenummer:
XR-A60
Vores artikelnummer:
900381
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Nexmosphere - XR-A60"
The XR antenna is a slim, easy to built-in RFID antenna. It can be hidden behind a variety of non-metallic design materials like acrylics, wood, glass and stone. Define your detection surface area and match it with the right shape and size antenna for your product and application.
Wireless pickup detection
The XR antenna connects to the XR antenna driver. Together they register the pick-ups, as well as the place-downs of RFID tagged merchandise when the product is either lifted from or placed back on an antenna. During both events, an event-specific trigger is sent from the Xperience controller to the connected media player that can be used to, for example, start a video or illuminate a string of LEDs.
Wireless pickup detection
The XR antenna connects to the XR antenna driver. Together they register the pick-ups, as well as the place-downs of RFID tagged merchandise when the product is either lifted from or placed back on an antenna. During both events, an event-specific trigger is sent from the Xperience controller to the connected media player that can be used to, for example, start a video or illuminate a string of LEDs.
- Pick-up and place-down registration
- Highly responsive
- Compatible with all Nexmosphere RFID tags
- Multi-tag detection (up to 4 RFID tags simultaneously)
Features
- Connects to XR Antenna driver
- Wireless pick-up detection surface
Technical details
Mounting specifications
Keep away from metal objects or surfaces*
Spacing between antennas is required*
Detection distance is 20–40 mm depending on the overlying material and direct environment*
Works under glass, acrylic, wood, cardboard, stone, and non-metallic materials
*(see XR installation guide for specific details)
Thermal specifications
Operating temperature: +10’C…+40’C/ +50’F…+104’F
Storage temperature: -20’C…+50’C/ -4’F…+122’F
Electrical specifications
RFID frequency: 13.56Mhz
Miscellaneous
Mounting holes for easy fixation
1-year warranty (optional 3-year extended warranty available)
Customized layouts and board shapes available on request
