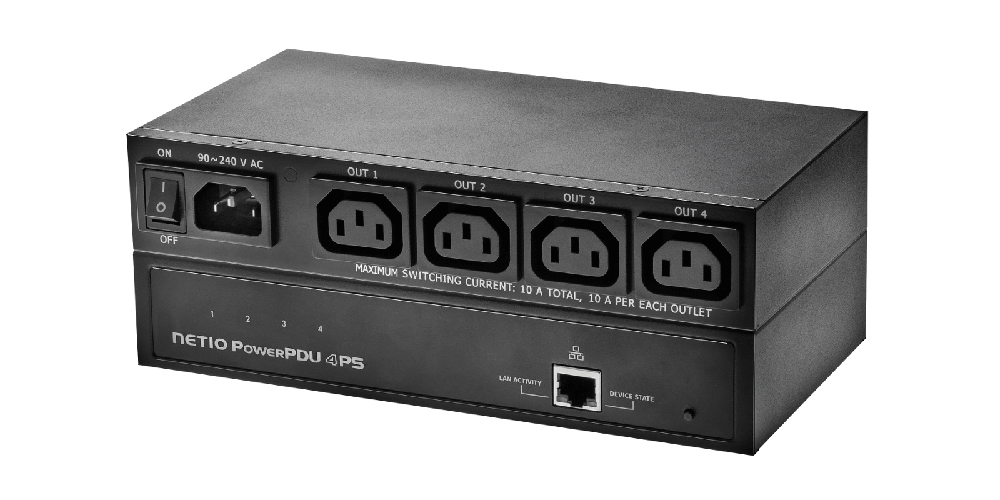

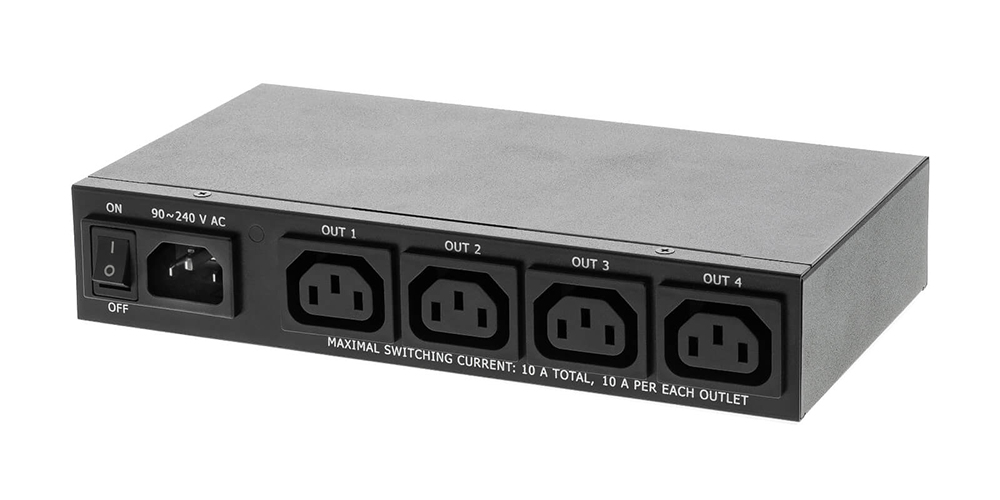

NETIO - PowerPDU 4PS
LAN PDU with 4 IEC-320 C13 controlled outputs, SNMP, MQTT-flex, NETIO Cloud and more.
Producentens varenummer:
PowerPDU 4PS
Vores artikelnummer:
900238
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "NETIO - PowerPDU 4PS"
NETIO PowerPDU 4PS is a smart PDU (Power Distribution Unit) with four power outlets (4x IEC-320 C13). Each output can be switched on/off individually. NETIO PowerPDU 4PS can be mounted in rack cabinets – horizontally, vertically, or as a 1U device. Integration into third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy thanks to the open API. With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.
Features
NETIO PowerPDU 4PS can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).
NETIO PowerPDU 4PS does not support electrical measurements. Each output can be individually switched on/off or power-cycled. To switch the outputs on in a sequence, a power-up delay can be configured for each output.
The NETIO Mobile 2 app controls each output individually over LAN (local network) or the NETIO Cloud service.
NETIO Cloud is a TLS-secured service for controlling the outputs from anywhere (Web or Open API).
Open API allows controlling the outputs over the network using various protocols (http XML/JSON, Modbus/TCP, MQTT, SNMP, Telnet and more... ).
AV drivers make it easy to connect NETIO sockets to professional Audio/Video systems such as Neets, CRESTRON, Control4 and more.
NETIO PowerPDU 4PS can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).
NETIO PowerPDU 4PS does not support electrical measurements. Each output can be individually switched on/off or power-cycled. To switch the outputs on in a sequence, a power-up delay can be configured for each output.
The NETIO Mobile 2 app controls each output individually over LAN (local network) or the NETIO Cloud service.
NETIO Cloud is a TLS-secured service for controlling the outputs from anywhere (Web or Open API).
Open API allows controlling the outputs over the network using various protocols (http XML/JSON, Modbus/TCP, MQTT, SNMP, Telnet and more... ).
AV drivers make it easy to connect NETIO sockets to professional Audio/Video systems such as Neets, CRESTRON, Control4 and more.
Technical Details
LAN (RJ45): Yes
WiFi: No
Online demo: Yes
Web: Built-in web server
FW upgrade: Yes (via device WEB interface)
Download: FW Archive
Mobile app: NETIO Mobile 2 (Android & iOS)
Cloud connection needed for instalation: No
Control button for each output: No
Service: NETIO Cloud (paid service, secured by TLS)
Open API (M2M protocols)
Scheduler function: Yes
IP WatchDog function: Yes
Sending emails: No
Events Log: Yes (web)
Power input: 1x IEC320 C14 na 110/230V (10A)
Mechanical power switch: Yes
Power output: 4x IEC-320 C13 (max 10A)
Number of controlled outputs: 4
Electrical measurement: No
Number of metered outputs: 0
Internal consumption: Max 1,8 W
SPD - Surge protection: Yes, type 3
Switching element: relay SPST-NO, ZVS
ZVS (Zero voltage switching): Yes
IOC (output state independent from FW update): Yes
PowerUp state of outputs: On / Off / LAST state
Mechanical characteristics: Metal housing, 220 x 40 x 120 mm
Mounting position: Horizontal (1x / 2x) / vertical in a 19“ rack
Protection: IP30
Sound output: No
Temperature range: -20°C to +65°C
LAN (RJ45): Yes
WiFi: No
Online demo: Yes
Web: Built-in web server
FW upgrade: Yes (via device WEB interface)
Download: FW Archive
Mobile app: NETIO Mobile 2 (Android & iOS)
Cloud connection needed for instalation: No
Control button for each output: No
Service: NETIO Cloud (paid service, secured by TLS)
Open API (M2M protocols)
JSON over HTTP (default)
MQTT-flex (extended MQTT, SSL enabled)
HTTP Push JSON
HTTP Push XML
SNMP v1
SNMP v3
Modbus / TCP
XML over HTTP
URL API (http get) (outputs only)
Telnet (outputs only, backwards compatibility with KSHELL)
Lua support: NoMQTT-flex (extended MQTT, SSL enabled)
HTTP Push JSON
HTTP Push XML
SNMP v1
SNMP v3
Modbus / TCP
XML over HTTP
URL API (http get) (outputs only)
Telnet (outputs only, backwards compatibility with KSHELL)
Scheduler function: Yes
IP WatchDog function: Yes
Sending emails: No
Events Log: Yes (web)
Power input: 1x IEC320 C14 na 110/230V (10A)
Mechanical power switch: Yes
Power output: 4x IEC-320 C13 (max 10A)
Number of controlled outputs: 4
Electrical measurement: No
Number of metered outputs: 0
Internal consumption: Max 1,8 W
SPD - Surge protection: Yes, type 3
Switching element: relay SPST-NO, ZVS
ZVS (Zero voltage switching): Yes
IOC (output state independent from FW update): Yes
PowerUp state of outputs: On / Off / LAST state
Mechanical characteristics: Metal housing, 220 x 40 x 120 mm
Mounting position: Horizontal (1x / 2x) / vertical in a 19“ rack
Protection: IP30
Sound output: No
Temperature range: -20°C to +65°C
