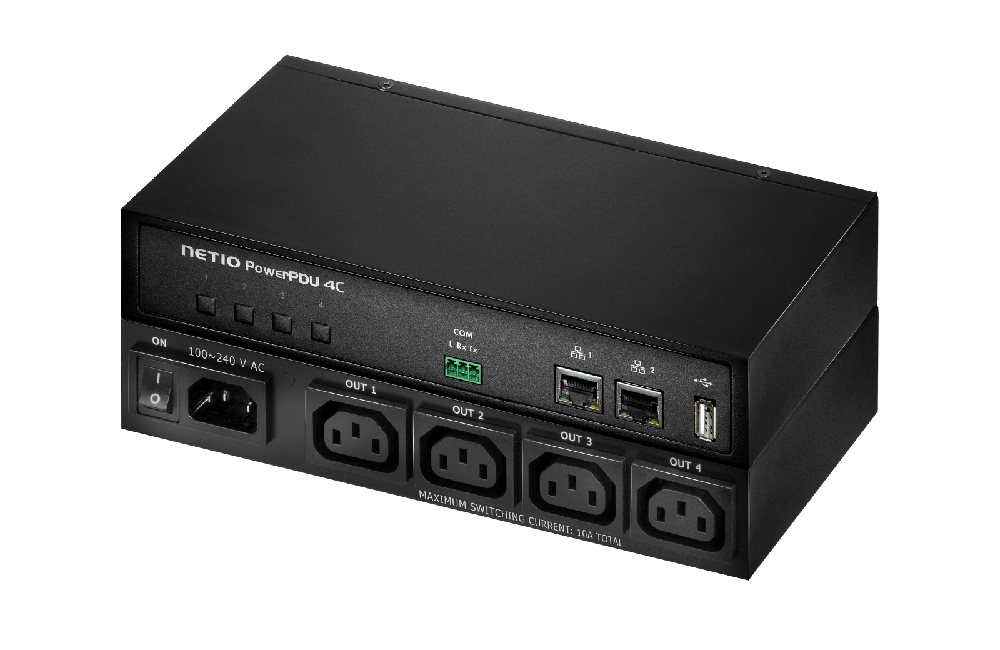

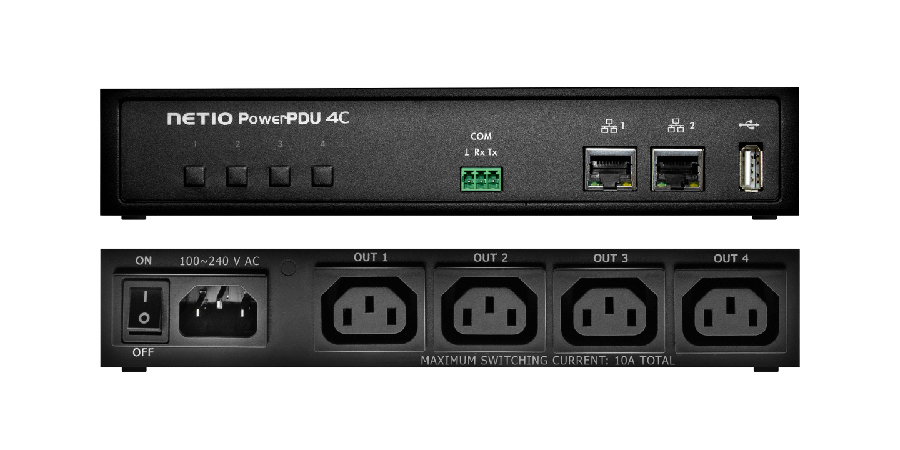

NETIO - PowerPDU 4C
4x controlled IEC320 power socket, supports serial port and custom LUA scripts
Producentens varenummer:
PowerPDU 4C
Vores artikelnummer:
900239
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "NETIO - PowerPDU 4C"
NETIO PowerPDU 4C is a small 110/230V PDU (Power Distribution Unit). Each of the four IEC-320 C13 outlets can be independently controlled (On / Off / Reset / Toggle). Electrical parameters (A, W, kWh, TPF, V, Hz) are measured with high accuracy at each outlet. The device features two LAN ports (and a built-in Ethernet switch) for connecting to a LAN. Each power output supports ZCS (Zero Current Switching) to protect the connected equipment. With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.
Features
- 4x output: IEC320
- Socket control options:
- Buttons
- NETIO Mobile iOS/Android app
- WEB browser
- M2M API (CGI, Telnet, SNMPv3, ..)
- Built-in LAN switch (2x RJ-45)
- IP Watchdog function automatically restarts unresponsive devices
- Scheduler - a smart calendar
- Behavior can be programmed in LUA
- Email alert to power outage
- API/M2M interface
- SNMPv3
- CGI (HTTP GET)
- KSHELL + Telnet
- XML API (HTTPs)
- Supported protocols: HTTP, HTTPs, SMTP, DNS, NTP, UPnP, DHCP, SNMP, ICMP
- RS-232 serial port (3 pins) can be read and controlled in LUA scripts. IEC320 sockets can be switched on/off with a command or by detecting a particular string in the serial communication.
Technical Details
Power ratings
Supply voltage: 110/230 VAC / Max 10A
Low internal consumption: 2 to 5 W
Surge protection: Yes
4x IEC-320 C13 / Max 10A per output
PowerUp state: Yes – configurable default power-on state (On / Off / LAST)
ZCS (Zero Current Switching): Yes – configurable default state (On / Off / LAST)
IOC (Independent Output Control): Yes
Power measurement
4x Current [A]
4x Consumption [kWh]
4x Output power [W]
4x TPF (True Power Factor)
Frequency [Hz]
Voltage [V]
Phase [-180° to 180°]
Accuracy: better than 1% (25°C)
Communication
2x LAN 10/100 Mbps (RJ-45)
Built-in unmanaged Ethernet switch
RS-232 serial port (3 pins: Rx, Tx, GND)
USB: Only as a 5V / 1A supply output
Mobile app: NETIO Mobile 2 (Android & iOS)
FW upgrade over the Web interface: Yes
Protocols: HTTP, HTTPS, SMTP, DNS, NTP, UPnP, DHCP, SNMP, ICMP, MQTT, SSL, Modbus/TCP
Service
Cloud connection needed for installation: No
Service: NETIO Cloud (paid service, secured by TLS)
Controls
Main power switch
4x button for individual sockets
LED indication of current outlet states
Sound indication: Yes
Open M2M API
JSON over HTTP (default protocol)
MQTT (not MQTT-flex)
SNMP v1 (reading only)
SNMP v3
Modbus/TCP
XML over HTTP
URL API (http get) (Outputs only)
Telnet (Outputs only, backwards compatible with KSHELL)
HTTPs Push JSON
HTTPs Push XML
Lua Active Client protocols
Lua PING request (AN09, AN24, AN25)
Lua XML over HTTP get (AN13, AN14)
Lua URL API over HTTP get (AN06)
Lua SNMP v1 (AN16)
Lua MQTT (AN35)
Lua RS-232 (Serial port) (AN18)
Build-in functions
IP WatchDog function
Scheduler function (calendar)
Lua scripting
Support for in-device Lua scripts: Yes
M2M Active Client: Yes
Lua access to RS-232: Yes
Operating conditions
Temperature: -20°C to +65°C
For indoor use only (IP30)
Package contents
NETIO PowerPDU 4C
QIG (printed Quick Installation Guide)
Power cable (Europlug C13 by default)
Miscellaneous
Warranty: 24 months
NETIO PowerPDU 4C: 220 x 40 x 120 (w x h x d)
Cable length: 1m
Weight: 0.8 Kg
Package: 255 x 73 x 204 mm (w x h x d)
Standards:
Power ratings
Supply voltage: 110/230 VAC / Max 10A
Low internal consumption: 2 to 5 W
Surge protection: Yes
Max energy 125J
Maximum applied voltage 300Vrms
Max. peak current 20/80us 4500A
Max. clamping voltage 775V
Power outputsMaximum applied voltage 300Vrms
Max. peak current 20/80us 4500A
Max. clamping voltage 775V
4x IEC-320 C13 / Max 10A per output
PowerUp state: Yes – configurable default power-on state (On / Off / LAST)
ZCS (Zero Current Switching): Yes – configurable default state (On / Off / LAST)
IOC (Independent Output Control): Yes
Power measurement
4x Current [A]
4x Consumption [kWh]
4x Output power [W]
4x TPF (True Power Factor)
Frequency [Hz]
Voltage [V]
Phase [-180° to 180°]
Accuracy: better than 1% (25°C)
Communication
2x LAN 10/100 Mbps (RJ-45)
Built-in unmanaged Ethernet switch
RS-232 serial port (3 pins: Rx, Tx, GND)
USB: Only as a 5V / 1A supply output
Mobile app: NETIO Mobile 2 (Android & iOS)
FW upgrade over the Web interface: Yes
Protocols: HTTP, HTTPS, SMTP, DNS, NTP, UPnP, DHCP, SNMP, ICMP, MQTT, SSL, Modbus/TCP
Service
Cloud connection needed for installation: No
Service: NETIO Cloud (paid service, secured by TLS)
Controls
Main power switch
4x button for individual sockets
LED indication of current outlet states
Sound indication: Yes
Open M2M API
JSON over HTTP (default protocol)
MQTT (not MQTT-flex)
SNMP v1 (reading only)
SNMP v3
Modbus/TCP
XML over HTTP
URL API (http get) (Outputs only)
Telnet (Outputs only, backwards compatible with KSHELL)
HTTPs Push JSON
HTTPs Push XML
Lua Active Client protocols
Lua PING request (AN09, AN24, AN25)
Lua XML over HTTP get (AN13, AN14)
Lua URL API over HTTP get (AN06)
Lua SNMP v1 (AN16)
Lua MQTT (AN35)
Lua RS-232 (Serial port) (AN18)
Build-in functions
IP WatchDog function
Scheduler function (calendar)
Lua scripting
Support for in-device Lua scripts: Yes
M2M Active Client: Yes
Lua access to RS-232: Yes
Operating conditions
Temperature: -20°C to +65°C
For indoor use only (IP30)
Package contents
NETIO PowerPDU 4C
QIG (printed Quick Installation Guide)
Power cable (Europlug C13 by default)
Miscellaneous
Warranty: 24 months
NETIO PowerPDU 4C: 220 x 40 x 120 (w x h x d)
Cable length: 1m
Weight: 0.8 Kg
Package: 255 x 73 x 204 mm (w x h x d)
Standards:
EN 61010-1 ed.2:2011
EN 61326-1 ed.2:2013
EN 55011 ed.3:2010
EN 61326-1 ed.2:2013
EN 55011 ed.3:2010
