NETIO - PowerDIN 4PZ
Dual electricity meter with LAN/WiFi + I/O for IT or AV applications and small AC chargers (max 16A).
Producentens varenummer:
PowerDIN 4PZ
Vores artikelnummer:
900240
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "NETIO - PowerDIN 4PZ"

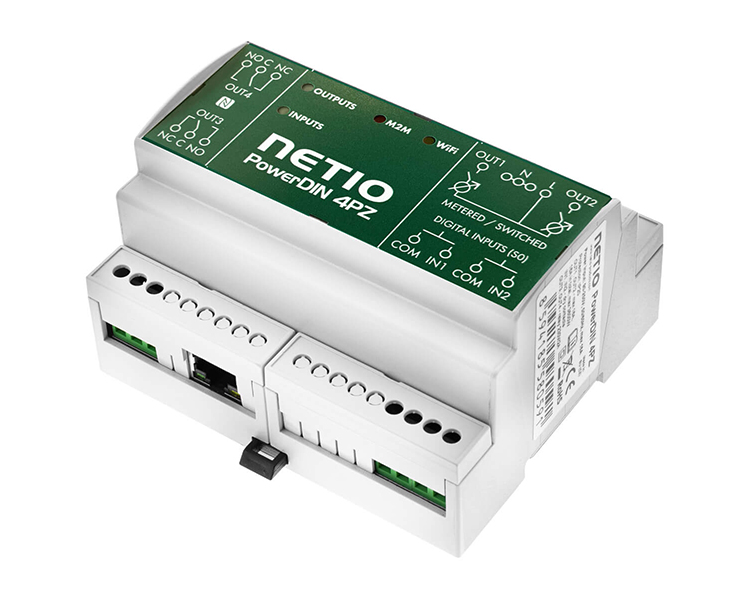

PowerDIN 4PZ is a dual 110-230V / Max 16A electricity meter with LAN/WiFi and I/O, designed to fit on a DIN rail. Enables control over the Web, NETIO Cloud, Open API. Each of the 4 outputs can be switched on or off independently using the Web interface, or with Open API and NETIO Cloud. States of two dry contact digital inputs (including S0 pulse counts) can be also read remotely. Integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy thanks to the Open API.
Features
NETIO PowerDIN 4PZ is a 2-channel 110-230V/ Max 16A electricity meter with relays at outputs and LAN (Ethernet) or WiFi connectivity.
Open API enables integration with third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ..).
NETIO PowerDIN 4PZ is a 2-channel 110-230V/ Max 16A electricity meter with relays at outputs and LAN (Ethernet) or WiFi connectivity.
- The two metered 110/230VAC outputs can be switched off thanks to a built-in relay.
- Two other outputs feature NO/NC relay contacts.
- Two digital inputs can be used to connect push-buttons or S0 meters.
Open API enables integration with third-party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT, Telnet, ..).
- LAN or WiFi connection, NFC configuration
- WEB interface
- Channels 1, 2: metering + relay
- Channels 3, 4: relay contacts
- OPEN API: MQTT-flex, Modbus/TCP, Telnet, JSON, XML, SNMP, ..
- ZCS – Zero-current switching
- Mobile app: NETIO Mobile2 (Android & iOS)
- Service: NETIO Cloud
Technical Details
LAN (RJ45): Yes
WiFi: Yes
Web: Built-in web server
Online demo: Yes (link)
FW upgrade: Yes – web (Download: FW Archive)
Mobile app: NETIO Mobile 2 (Android & iOS)
Installation without a Cloud connection: Yes
Control button: Yes (under the panel)
Service: NETIO Cloud (for a fee, TLS security)
Open API (M2M protocols)
Scheduler function: Yes
IP WatchDog function: Yes
Power WatchDog function: Yes
Sending e-mails: No
Power input: Terminal block (2.5mm2 / 22-14 AWG) 100-240VAC (50/60 Hz) / max 16A
Power output: Terminal block (2.5mm2 / 22-14 AWG)
Digital Outputs: 4 in total
Metered outputs: 2 channels
DO Metered Power outputs + switching element: 2x Relay + ZCS (Out 1 & Out 2: SPST-NO) – Max 16A
DO Relay outputs: 2x Relay (Out 3 & Out 4: NO/NC) – Max 2A
Digital Inputs: 2 + S0 counter (4 bytes)
Internal consumption: Max 2 W
SPD – surge protection: Yes, type 3
Switching element: Relay (Out 1, 2: SPST-NO)
ZCS (Zero Current Switching): Yes (outputs 1, 2)
IOC (output state independent from FW updates): Yes
PowerUp state of outputs: On / Off / LAST state
Power-Up sequence (switching outputs on with a delay): Yes

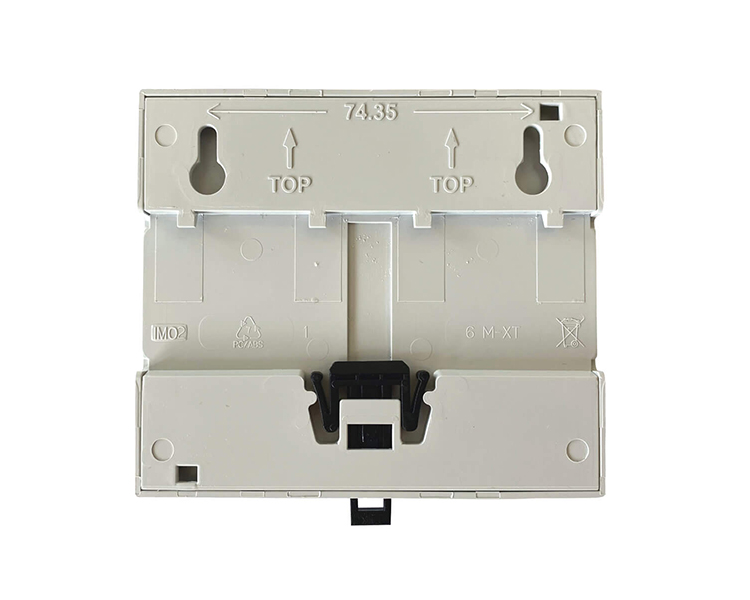

Mechanical: 108 x 91 x 62 mm = 6M (Standard DIN rail Unis - each 18mm)
Protection: IP20
Sound output: No
Temperature range: -20°C to +55°C
Designed and manufactured: European Union (Czech Republic, Prague)
LAN (RJ45): Yes
WiFi: Yes
Web: Built-in web server
Online demo: Yes (link)
FW upgrade: Yes – web (Download: FW Archive)
Mobile app: NETIO Mobile 2 (Android & iOS)
Installation without a Cloud connection: Yes
Control button: Yes (under the panel)
Service: NETIO Cloud (for a fee, TLS security)
Open API (M2M protocols)
JSON over HTTP (default)
MQTT-flex (extended MQTT, SSL enabled)
HTTP Push JSON
HTTP Push XML
SNMP v1
SNMP v3
Modbus / TCP
XML over HTTP
URL API (http get) (outputs only)
Telnet (outputs only, backwards compatibility with KSHELL)
Lua support: NoMQTT-flex (extended MQTT, SSL enabled)
HTTP Push JSON
HTTP Push XML
SNMP v1
SNMP v3
Modbus / TCP
XML over HTTP
URL API (http get) (outputs only)
Telnet (outputs only, backwards compatibility with KSHELL)
Scheduler function: Yes
IP WatchDog function: Yes
Power WatchDog function: Yes
Sending e-mails: No
Power input: Terminal block (2.5mm2 / 22-14 AWG) 100-240VAC (50/60 Hz) / max 16A
Power output: Terminal block (2.5mm2 / 22-14 AWG)
Digital Outputs: 4 in total
Metered outputs: 2 channels
DO Metered Power outputs + switching element: 2x Relay + ZCS (Out 1 & Out 2: SPST-NO) – Max 16A
DO Relay outputs: 2x Relay (Out 3 & Out 4: NO/NC) – Max 2A
Digital Inputs: 2 + S0 counter (4 bytes)
Internal consumption: Max 2 W
SPD – surge protection: Yes, type 3
Switching element: Relay (Out 1, 2: SPST-NO)
ZCS (Zero Current Switching): Yes (outputs 1, 2)
IOC (output state independent from FW updates): Yes
PowerUp state of outputs: On / Off / LAST state
Power-Up sequence (switching outputs on with a delay): Yes
Mechanical: 108 x 91 x 62 mm = 6M (Standard DIN rail Unis - each 18mm)
Protection: IP20
Sound output: No
Temperature range: -20°C to +55°C
Designed and manufactured: European Union (Czech Republic, Prague)
