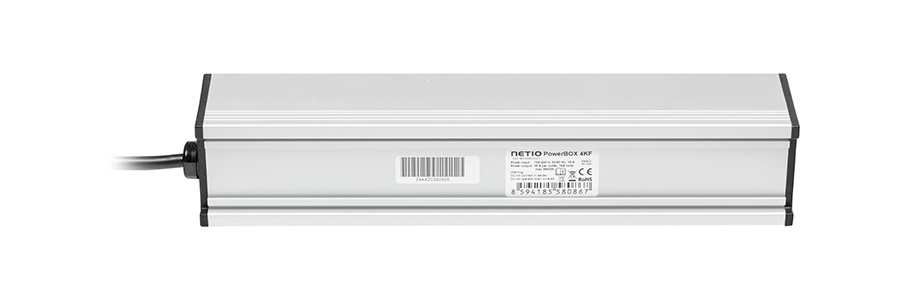

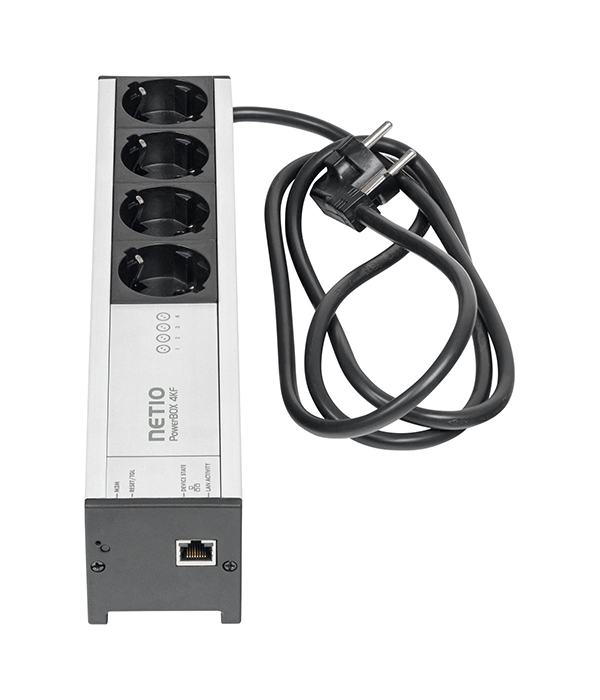

NETIO - PowerBOX 4KF
LAN-enabled smart power strip with 4 outputs
Producentens varenummer:
PowerBOX 4KF
Vores artikelnummer:
900274
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "NETIO - PowerBOX 4KF"
NETIO PowerBOX 4Kx is a LAN-enabled smart power strip with 4 outputs. Each output socket can be switched on or off individually over the web interface. Integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy thanks to the Open API. Electrical parameters (A, W, kWh, TPF) are measured with high accuracy at each output. With the secure NETIO Cloud service, the outputs can be controlled from anywhere.
Features
NETIO PowerBOX 4Kx can be configured with a web browser (output control, measurements, timer settings, …). Individual outputs can be also controlled using the NETIO Cloud service, the mobile app or the Open API (http JSON/XML, SNMP, Modbus/TCP, Telnet, MQTT and more).
PowerBOX 4Kx is a smart LAN power socket in the form of a power extension cable. A RJ45 Ethernet cable is used to connect to the LAN.
The last letter of the model number indicates one of the three European socket types (4KF – most of EU (German Schuko), 4KE – French type, 4KG – British type).
Electrical parameters (A, W, kWh, TPF, V, Hz) are measured with high accuracy at each output.
Each output can be switched on and off according to the current time and day of week. The time schedule can be different for each output.
NETIO PowerBOX 4Kx can be configured with a web browser (output control, measurements, timer settings, …). Individual outputs can be also controlled using the NETIO Cloud service, the mobile app or the Open API (http JSON/XML, SNMP, Modbus/TCP, Telnet, MQTT and more).
PowerBOX 4Kx is a smart LAN power socket in the form of a power extension cable. A RJ45 Ethernet cable is used to connect to the LAN.
The last letter of the model number indicates one of the three European socket types (4KF – most of EU (German Schuko), 4KE – French type, 4KG – British type).
Electrical parameters (A, W, kWh, TPF, V, Hz) are measured with high accuracy at each output.
Each output can be switched on and off according to the current time and day of week. The time schedule can be different for each output.
Technical Details
LAN (RJ45): Yes
WiFi: No
Online demo: Yes
Web: Built-in web server
FW upgrade: Yes (via WEB interface)
Download: FW Archive
Mobile app: NETIO Mobile 2 (Android & iOS)
Cloud connection needed for installation: No
Control button: Yes
Service: NETIO Cloud (paid service)
Open API (M2M protocols)
Scheduler function: Yes
IP WatchDog function: Yes
Power WatchDog function: Yes
Sending emails: No
Event log: Yes (web)
Electrical measurements
Power output: The “x” in the “4Kx” model number specifies the socket type (4 sockets)
Number of controlled outputs: 4
Electrical measurements: Yes
Number of metered outputs: 4
Available electrical socket versions:
SPD - Surge protection: Yes, type 3
Switching element: relay SPST-NO, ZCS
ZCS (Zero Current Switching): Yes
IOC (output state independent from FW upgrades): Yes
PowerUp state of outputs: On / Off / LAST state
PowerUp delay: Yes
Mechanical: Aluminium profile
Sound output: No
Temperature range: -20°C to +65°C / 10A
LAN (RJ45): Yes
WiFi: No
Online demo: Yes
Web: Built-in web server
FW upgrade: Yes (via WEB interface)
Download: FW Archive
Mobile app: NETIO Mobile 2 (Android & iOS)
Cloud connection needed for installation: No
Control button: Yes
Service: NETIO Cloud (paid service)
Open API (M2M protocols)
Modbus/TCP
MQTT-flex
Telnet
http URL API
JSON over HTTP
XML over HTTP
SNMP v1/v3
http Push XML
http Push JSON
Lua support: NoMQTT-flex
Telnet
http URL API
JSON over HTTP
XML over HTTP
SNMP v1/v3
http Push XML
http Push JSON
Scheduler function: Yes
IP WatchDog function: Yes
Power WatchDog function: Yes
Sending emails: No
Event log: Yes (web)
Electrical measurements
4x Current [A]
4x Consumption [Wh]
4x Output power [W]
4x TPF (True Power Factor)
4x Phase [°]
4x Reverse Energy [Wh]
Frequency [Hz]
Voltage [V]
Accuracy: better than 1% (25°C)
Power input: The “x” in the “4Kx” model number specifies the plug type4x Consumption [Wh]
4x Output power [W]
4x TPF (True Power Factor)
4x Phase [°]
4x Reverse Energy [Wh]
Frequency [Hz]
Voltage [V]
Accuracy: better than 1% (25°C)
Power output: The “x” in the “4Kx” model number specifies the socket type (4 sockets)
Number of controlled outputs: 4
Electrical measurements: Yes
Number of metered outputs: 4
Available electrical socket versions:
Type F - DE schuko – PowerBOX 4KF (230V / 16A)
Type E – FR – PowerBOX 4KE (230V / 16A)
Type G – UK – PowerBOX 4KG (230V / 13A)
Internal consumption: Max 1-2 WType E – FR – PowerBOX 4KE (230V / 16A)
Type G – UK – PowerBOX 4KG (230V / 13A)
SPD - Surge protection: Yes, type 3
Switching element: relay SPST-NO, ZCS
ZCS (Zero Current Switching): Yes
IOC (output state independent from FW upgrades): Yes
PowerUp state of outputs: On / Off / LAST state
PowerUp delay: Yes
Mechanical: Aluminium profile
PowerBOX 4KE, 4KF: 320 x 66 x 63 mm + cable 1,6 m
PowerBOX 4KG: 368 x 66 x 63 mm + cable 1,6 m
Protection: IP30PowerBOX 4KG: 368 x 66 x 63 mm + cable 1,6 m
Sound output: No
Temperature range: -20°C to +65°C / 10A
