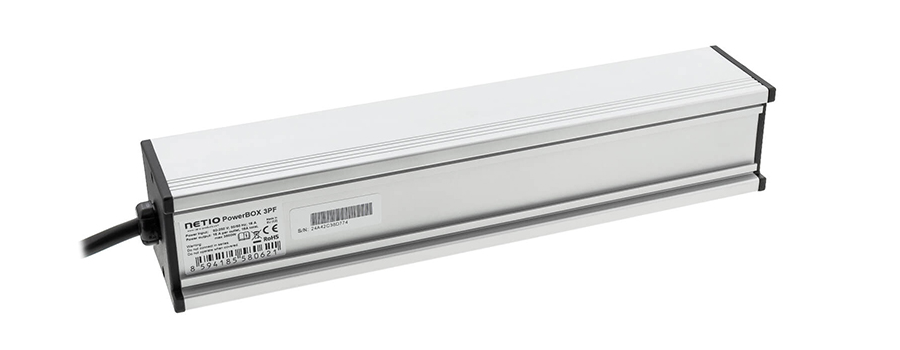

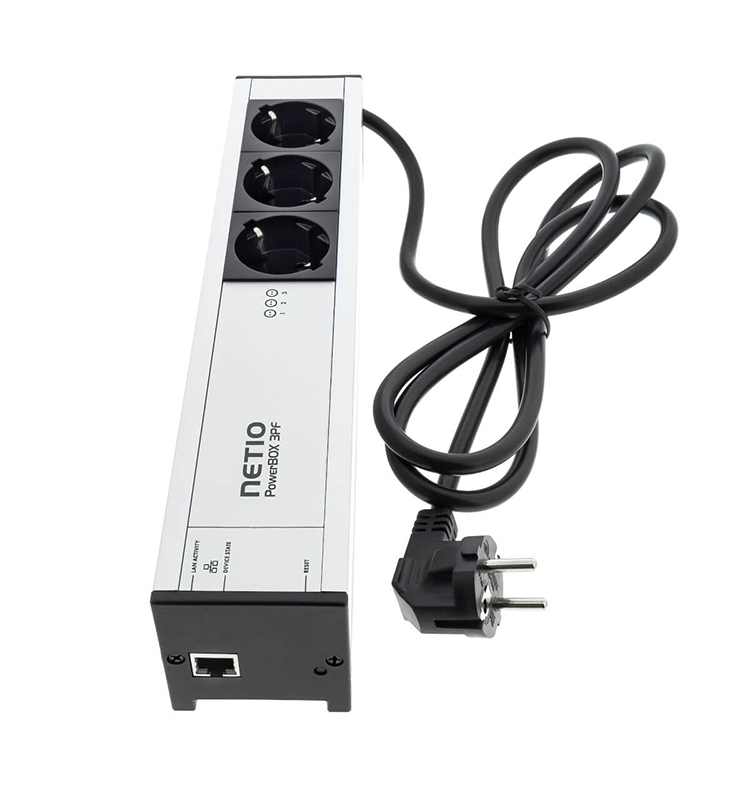

NETIO - PowerBOX 3PF
Electrical sockets controlled over a LAN. 3 outputs of Type F (Schuko) 230V/16A, used in most of Europe.
Producentens varenummer:
PowerBOX 3PF
Vores artikelnummer:
900230
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "NETIO - PowerBOX 3PF"
NETIO PowerBOX 3Px is a professional electrical socket device with 3 outputs and LAN connectivity. Each output socket can be separately switched on or off over the web interface. Integration into third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy thanks to the open API. With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.
Features
NETIO PowerBOX 3Px can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).
PowerBOX 3Px is a smart IoT LAN power socket in the form of an extension cable. A RJ45 Ethernet cable is used to connect to the LAN.
NETIO PowerBOX 3Px can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).
PowerBOX 3Px is a smart IoT LAN power socket in the form of an extension cable. A RJ45 Ethernet cable is used to connect to the LAN.
Technical Details
LAN (RJ45): Yes
WiFi: No
Online demo: Yes
Web: Built-in web server
FW upgrade: Yes (via the device’s WEB interface)
Download: FW Archive
Mobile app: NETIO Mobile2 (Android & iOS)
Cloud connection needed for installation: No
Control button for each output: No
Service: NETIO Cloud (paid service, secured by TLS)
Open API (M2M protocols)
Scheduler function: Yes
IP WatchDog function: Yes
Sending e-mails: No
Event log: Yes (web)
Power input: The “x” in the “3Px” model number specifies the plug type
Mechanical Power Switch: No
Power output: The “x” in the “3x” model number specifies the socket type (3 sockets)
Number of controlled outputs: 3
Electrical measurements: No
Number of metered outputs: 0
Available electrical socket versions:
SPD – surge protection: Yes, type 3
Switching element: relay SPST-NO, ZVS
ZVS (Zero Voltage Switching): Yes
IOC (output state independent from FW updates): Yes
PowerUp state of outputs: On / Off / LAST state
Mechanical characteristics: Aluminium profile – 320 x 62 x 62 mm + cable 1.6 m
Protection: IP30
Sound output: No
Temperature range: -20°C to +65 °C
LAN (RJ45): Yes
WiFi: No
Online demo: Yes
Web: Built-in web server
FW upgrade: Yes (via the device’s WEB interface)
Download: FW Archive
Mobile app: NETIO Mobile2 (Android & iOS)
Cloud connection needed for installation: No
Control button for each output: No
Service: NETIO Cloud (paid service, secured by TLS)
Open API (M2M protocols)
JSON over HTTP (default)
MQTT-flex (extended MQTT, SSL enabled)
HTTP Push JSON
HTTP Push XML
SNMP v1
SNMP v3
Modbus / TCP
XML over HTTP
URL API (http get) (outputs only)
Telnet (outputs only, backwards compatibility with KSHELL)
Lua support: NoMQTT-flex (extended MQTT, SSL enabled)
HTTP Push JSON
HTTP Push XML
SNMP v1
SNMP v3
Modbus / TCP
XML over HTTP
URL API (http get) (outputs only)
Telnet (outputs only, backwards compatibility with KSHELL)
Scheduler function: Yes
IP WatchDog function: Yes
Sending e-mails: No
Event log: Yes (web)
Power input: The “x” in the “3Px” model number specifies the plug type
Mechanical Power Switch: No
Power output: The “x” in the “3x” model number specifies the socket type (3 sockets)
Number of controlled outputs: 3
Electrical measurements: No
Number of metered outputs: 0
Available electrical socket versions:
Type F – DE schuko – PowerBOX 3PF (230V / 16A)
Type E – FR – PowerBOX 3PE (230V / 16A)
Type G – UK – PowerBOX 3PG (230V / 13A)
Internal consumption: 1-2 WType E – FR – PowerBOX 3PE (230V / 16A)
Type G – UK – PowerBOX 3PG (230V / 13A)
SPD – surge protection: Yes, type 3
Switching element: relay SPST-NO, ZVS
ZVS (Zero Voltage Switching): Yes
IOC (output state independent from FW updates): Yes
PowerUp state of outputs: On / Off / LAST state
Mechanical characteristics: Aluminium profile – 320 x 62 x 62 mm + cable 1.6 m
Protection: IP30
Sound output: No
Temperature range: -20°C to +65 °C
