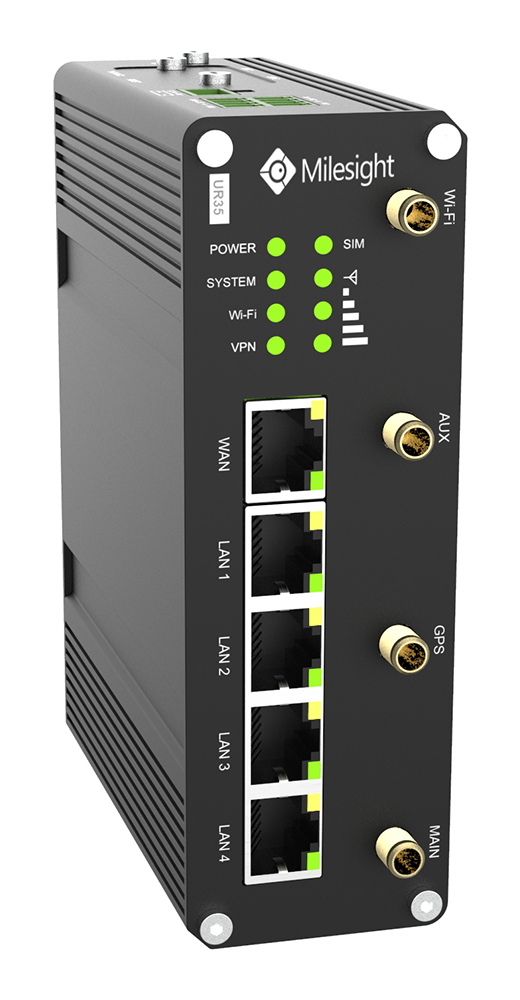

Milesight - UR35-L00E
Industrial mobile router (without Wi-Fi, GPS and PoE)
Producentens varenummer:
UR35-L04EU
Vores artikelnummer:
740007
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Produktinformation "Milesight - UR35-L00E"
The UR35 is an industrial 4G LTE mobile router with a 5-port Ethernet interface for mission-critical communications. Featuring multiple network protocols and VPN tunnels, UR35 provides secure and reliable solutions for a range of M2M / IoT deployments.
To meet market requirements, UR35 is built with hardened housing, industrial components and a wide operating range from -40 ° C to 70 ° C for harsh environments. In addition to dual SIM redundancy and Wi-Fi for seamless wireless connectivity, it also has 4 PSE PoE ports, serial ports and digital I / O for field communication.
Scope of delivery: Milesight UR35-L00E
To meet market requirements, UR35 is built with hardened housing, industrial components and a wide operating range from -40 ° C to 70 ° C for harsh environments. In addition to dual SIM redundancy and Wi-Fi for seamless wireless connectivity, it also has 4 PSE PoE ports, serial ports and digital I / O for field communication.
Scope of delivery: Milesight UR35-L00E
Features
- Hardened and robust housing
- 4 PoE PSE Ethernet ports
- Supports Wi-Fi client and AP mode
- 1 RS232 serial port and 1 RS485 port
- 1 digital input and 1 digital output
- OpenVPN / IPsec / PPTP / L2TP / DMVPN / GRE
- Wide operating temperature range and input voltage
Technical details
Capabilities
Interfaces
Network
Maintenance
Hardware
Physical properties
Capabilities
- Central processor: 528 MHz, 32-bit ARM Cortex-A7
- Flash: 128 MB
- Memory: 128 MB DDR3
- Built-in: Watchdog
- Geographic positioning system: GPS + GLONASS
- Micro SD: Supports micro SD cards up to 128 GB
Interfaces
- SIM slots: 2
- Ethernet ports: 5 × 10/100 Mbit/s
- Serial ports: 1 x RS232 + 1 x RS485 or 2 x RS485
- DI / DO: 1 × DI + 1 × DO
- Antenna ports: 2 x mobile phone ports, 1 x Wi-Fi port, 1 x GPS port
Network
- Network protocols: PPP, PPPoE, SNMP v1 / v2c / v3, TCP, UDP, DHCP, RIP v1 / v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
- AAA: RADIUS, TACACS +, LDAP, local authentication
- Firewall: Anti-DDoS, SPI, ACL, DMZ, port mapping, MAC binding
- Wi-Fi (optional): IEEE 802.11b / g / n
- Serial interface: Transparent (TCP client / server, UDP), Modbus gateway (Modbus RTU to Modbus TCP), Modbus master
- Reliability: VRRP, WAN failover, dual SIM backup
- VPN: OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE
Maintenance
- Management: Web, CLI, SMS, watchdog, on-demand dial-up
- Multi-level authority: Multiple levels of user authority
Hardware
- Power consumption: 9-48 VDC
- Output power (optional): 4 × 802.3af / with PoE PSE
- Ingress protection: IP30
- Housing & weight: Metal, 481 g (1,06 lb)
- Dimensions: 135 x 100 x 45 mm (5,31 x 3,94 x 1,77 in)
- Mounting: Desktop, wall or DIN rail mounting
Physical properties
- Operating temperature: -40 ° C to + 70 ° C (-40 ° F to + 158 ° F) Reduced cell performance above 60 ° C.
- Storage temperature: -40 ° C to + 85 ° C (-40 ° F to + 185 ° F)
- Relative humidity: 0% to 95% (non-condensing) at 25 ° C / 77 ° F.
- Certifications: RoHS, CE, FCC, AT & T (UR32)
