Milesight - UG67-L08GL

Features

• Quad-core industrial processor with big memory
• Equip with SX1302 chip, handing a higher amount of traffic with lower consumption
• 8 half/full-duplex channels
• IP67 waterproof enclosure and industrial design for harsh environment applications
• Wall or pole mounting optional
• PoE or DC supply optional
• Capacitor for sending alarms in case of power failure

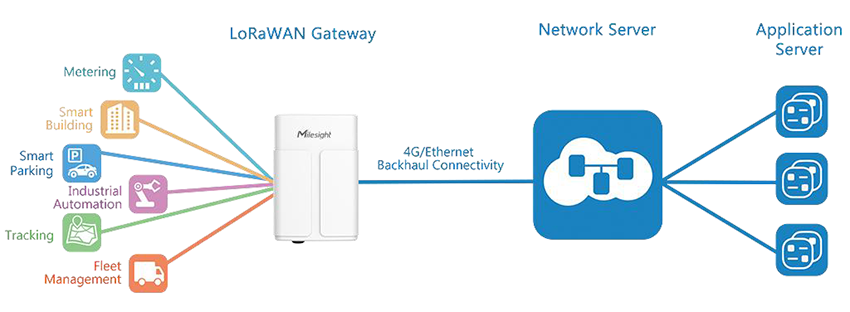

• Multi backhaul backups with Ethernet, cellular (4G) and Wi-Fi
• Enable security communication with multiple VPNs like IPsec/OpenVPN/LT2P/PPTP/ DMVPN/WireGuard
• Devicehub and Milesight Development Platform provide easy and centralized management of remote devices
• Compatible with mainstream network servers like The Things Stack, ChirpStack, Actility, AWS, etc.
• Detect and analyze the noise level and provide intuitive diagram for deployment
• Built-in network server and MQTT(s)/HTTP(s) API for easily integration
• Support BACnet/IP and Modbus to integrate LoRaWAN® data to BMS/PLC system easily
• Embedded Python SDK for users secondary development
• Fast and user-friendly programming by Node-RED development tool

Hardware Specifications

Hardware System

• CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
• Memory: 512 MB DDR4 RAM
• Flash: 8 GB eMMC

LoRaWAN

• Antenna Connector: 2 × 50 Ω N-Female External Connectors
• Channel: 8 (Half/Full-duplex)
• Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
• Sensitivity: -140dBm Sensitivity @292bps
• Tx Power: 27dBm Max
• LBT: Support

Ethernet Interface

• Port: 1 × RJ45 WAN Port (PoE PD supported)
• Physical Layer: 10/100/1000 Base-T (IEEE 802.3)
• Data Rate: 10/100/1000 Mbps (Auto-Sensing)
• Interface: Auto MDI/MDIX
• Mode: Full or Half Duplex (Auto-Sensing)
• Ethernet Isolation: 1.5 kV RMS

Wi-Fi Interface

• Antenna: Internal Antenna
• Standards: IEEE 802.11 b/g/n, 2.4GHz
• Tx Power:
  • 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
  • 802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
  • 802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
  • 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
  • 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
  • 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
  • 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)

Cellular Interface (Optional)

• Network: 4G LTE
• Antenna: Internal Antenna
• SIM Slot: 1 (Mini SIM-2FF)

GNSS

• Technology: GPS/GLONASS/QZSS/SBAS
• Antenna: Internal Antenna
• Sensitivity: -161dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition
• Position Accuracy: 2.5m CEP (Open Air)

Others

• Reset Button: 1 × RST
• USB: 1 × Type-C for Console
• LED Indicators: 1 × SYS, 1 × LoRa, 1 × LTE
• Power Connector: 1 × M12 A-Coded Connector
• Built-in: Watchdog, RTC, Timer

Power Supply and Consumption

• Power Supply:
  • 802.3 af PoE
  • 6~12 VDC via M12 Connector
• Power Consumption: Typical 3.6 W, Max 4.8 W

Physical Characteristics

• Ingress Protection: IP67
• Material & Color: PC (UL94 V0) + ADC-12 Aluminum, White
• Weight: 1463g
• Dimensions: 240 x 164 x 90.9 mm (9.45 x 6.46 x 3.58 in)
• Installation: Wall or Pole Mounting

Environmental

• Operating Temperature: -40°C to +70°C (-40°F to +158°F) Reduced Cellular Performance Above 60°C
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F

Approvals

• Regulatory: CE, FCC, RCM,TELEC, ANATEL
• Environmental: RoHS

Software Specifications

LoRaWAN

• Supported Devices: Around 2000 Class A/B/C Devices (10 min uplink interval)
• Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
• Compatibility: DeviceHub LNS, Milesight Development Platform LNS, Milesight IoT Cloud, etc.

Packet Forwarder

• Noise Analyzer: Scan the noise of the frequencies for channel selection
• Packet Filter: Add whitelist or blacklist to filter the packets
• Data Retransmission: Re-transmit the data packets after network recovery

Embedded Network Server

• Decode and Encode: Inbuilt Milesight devices codec library, support custom codec setup
• Gateway Fleet: Work as the network server of other Milesight blind-filling gateways
• Multicast: Support multicast downlink control
• FUOTA: Upgrade FUOTA supported end devices
• Integration: MQTT, HTTP(s), BACnet/IP, Modbus TCP, Modbus RTU over TCP

Network

• Network Protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, MQTTS, BACnet/IP, Modbus RTU over TCP, Modbus TCP, etc.
• VPN Tunnel: OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN/WireGuard
• Firewalls: Access Control, DMZ, Port Mapping (DNAT), MAC Binding, Filtering (IP&Domain)
• DDNS: Supported >16 service providers, others can be configured manually
• Multilevel Authority: Multiple Levels of User Authority
• Reliability: WAN Failover
• Diagnostics Tools: Ping, Traceroute, Tcpdump, QXDM, Log Server

Wi-Fi Interface

• Standards: IEEE 802.11 b/g/n, 2.4GHz
• Mode: AP or Client mode
• Security:
  • AP: WPA-PSK/WPA2-PSK authentication, WEP/TKIP/AES encryption
  • Client: WPA-PSK/WPA2-PSK/WPA-Enterprise/WPA2-Enterprise authentication, WEP/TKIP/AES encryption

Management

• Configuration: Web, CLI (SSH/Telnet), SMS, On-demand dial up, SNMP, HTTP API, MQTT API, Milesight Development Platform, DeviceHub
• Update: Web, Milesight Development Platform, DeviceHub
• Device Management: Milesight Development Platform, DeviceHub
• Event Alarm: Power On/Off, Network Up/Down, VPN Up/Down, etc

Others

• App: Python SDK, Node-RED
