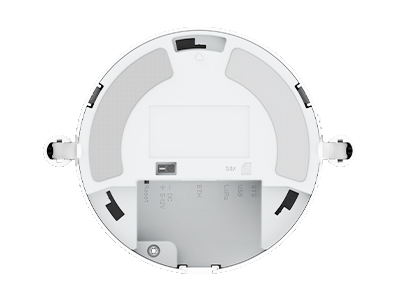

Milesight - UG63
Mini LoRaWAN Gateway
Producentens varenummer:
UG63-L08GL-868M
Vores artikelnummer:
740202
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Milesight - UG63"
UG63 is a 8-channel light weight indoor LoRaWAN® gateway. Adopting, SX1302chip, UG63 can set up packet forwarding connection between end nodes and mainstream network servers(suchasTTN, Chirpstack, etc.). With its compact size and high performance, it is highly suitable for independent deployment of LoRaWAN® networks in small-scale scenarios or single spaces. It can also serve as a supplementary gateway, along with UG65/UG67 or other main gateways, to enhance LoRaWAN® signal coverage in large-scale scenarios by filling in signal blind spots. It is an ideal supplement for wide indoor areas such as office, parking lots, campuses,etc.
Scope of delivery: Milesight - UG63
Scope of delivery: Milesight - UG63
Features
- Compact and Eye-catching Design
- Cost-Effective for Small-Scale Deployments
- Supports Cellular and Ethernet Backhaul
- Wire-Free Deployment with 4G
- Highly Compatible with Mainstream Network Servers
- Blind Spot Coverage
- Global Frequency Plans
- Remote Configuration and Management
Technical details
Hardware System
CPU: Dual-core 240MHz, 32-bit Xtensa® LX7
Memory: 8 MB PSRAM
Flash: 16 MB Flash
LoRaWAN®
Antenna Connector: 1 × External Antenna
Channel: 8 (Half-duplex)
Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity: -140dBm Sensitivity @292bps
Output Power: 27dBm Max
Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Cellular Interface (Optional)
Network: 4G LTE (CAT 1)/GSM
Antenna: 1 x External Antenna
Cellular Band:
L08GL (Global except North America):
Ethernet Interface
Port: 1 × RJ45 WAN Port
Physical Layer: 10/100 Base-T (IEEE 802.3)
Data Rate: 10/100 Mbps (Auto-Sensing)
Interface: Auto MDI/MDIX
Mode: Full or Half Duplex (Auto-Sensing)
Wi-Fi
Standards: IEEE 802.11b/g/n, 2.4 GHz
Mode: AP Mode (Device Configuration Only)
Others
Button: 1 × Reset Button
Console Port: 1 × USB 2.0 (Type-C) for Power Supply and Console
LED Indicators: 1 × SYSTEM, 1 x LTE
Built-in: Watchdog, Timer
Power Supply and Consumption
Power Input:
Physical Characteristics
Ingress Protection: IP30
Dimensions: 115 x 21 mm (4.52 x 0.83 in)
Color & Material: White, PC + ABS
Installation: Desktop, Wall or Ceiling Mounting
Environmental
Operating Temperature: -20°C to +50°C (-4°F to +122°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Ethernet Isolation: 1.5 kV RMS
Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F
Approvals
Regulatory: CE, FCC
Environmental: RoHS
Hardware System
CPU: Dual-core 240MHz, 32-bit Xtensa® LX7
Memory: 8 MB PSRAM
Flash: 16 MB Flash
LoRaWAN®
Antenna Connector: 1 × External Antenna
Channel: 8 (Half-duplex)
Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity: -140dBm Sensitivity @292bps
Output Power: 27dBm Max
Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Cellular Interface (Optional)
Network: 4G LTE (CAT 1)/GSM
Antenna: 1 x External Antenna
Cellular Band:
L08GL (Global except North America):
- LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66
- LTE-TDD: B34/38/39/40/41;
- GSM: B2/3/5/8
- LTE-FDD: B2/4/5/12/13/66
Ethernet Interface
Port: 1 × RJ45 WAN Port
Physical Layer: 10/100 Base-T (IEEE 802.3)
Data Rate: 10/100 Mbps (Auto-Sensing)
Interface: Auto MDI/MDIX
Mode: Full or Half Duplex (Auto-Sensing)
Wi-Fi
Standards: IEEE 802.11b/g/n, 2.4 GHz
Mode: AP Mode (Device Configuration Only)
Others
Button: 1 × Reset Button
Console Port: 1 × USB 2.0 (Type-C) for Power Supply and Console
LED Indicators: 1 × SYSTEM, 1 x LTE
Built-in: Watchdog, Timer
Power Supply and Consumption
Power Input:
- 5V by Type-C Port
- 5~12V DC by 3.5mm 2-pin Terminal Block
- 802.3af standard PoE input by (Optional) PoE Splitter
Physical Characteristics
Ingress Protection: IP30
Dimensions: 115 x 21 mm (4.52 x 0.83 in)
Color & Material: White, PC + ABS
Installation: Desktop, Wall or Ceiling Mounting
Environmental
Operating Temperature: -20°C to +50°C (-4°F to +122°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Ethernet Isolation: 1.5 kV RMS
Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F
Approvals
Regulatory: CE, FCC
Environmental: RoHS
