Milesight - UG56-L08GL
Industrial LoRaWAN® Gateway
Producentens varenummer:
UG56-L08GL
Vores artikelnummer:
740260
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Milesight - UG56-L08GL"
UG56 is a robust 8-channel indoor LoRaWAN® gateway. Adopting SX1302 chip and high-performance quad-core CPU, UG56 supports connection with more than 2000 nodes. UG56 has line of sight up to 15 km and can cover about 2 km in urbanized environment, which is ideally suited to smart building, smart industries and many other indoor applications.

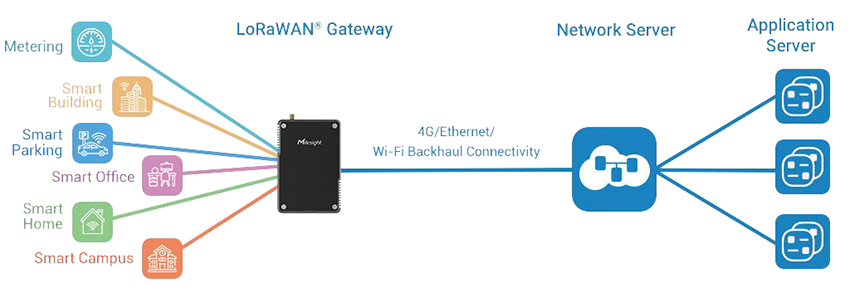

UG56 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated mainstream network servers (such as The Things Stack, ChirpStack, etc.), built-in network server and Milesight Development Platform for easydeployment
PACKAGE CONTENTS: UG56-L08GL
| Bandwidth: | 4G |
|---|---|
| Connection: | 10 / 100 / 1000-TX (RJ45) |
| Interface: | USB |
| Option: | SIM card slot |
| Temperature Range: | Extended Temperature Range |
Features
- Quad-core industrial processor with big memory
- Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
- 8 half-duplex channels
- Rugged metal enclosure for industrial applications
- Desktop, wall or DIN rail mounting
- Multi backhaul connectivity backups with Ethernet, cellular (4G) and Wi-Fi
- DeviceHub and Milesight Development Platform provide easy and centralized management of remote devices
- Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMV PN/WireGuard
- Compatible with mainstream network servers like The Things Stack, ChirpStack, Actility, AWS, etc.
- Detect and analyze the noise level and provide intuitive diagram for deployment
- Built-in network server and MQTT/HTTP/HTTPS API for easily integration
- Support BACnet/IP and Modbus to integrate LoRaWAN® data to BMS/PLC system easily
- Embedded Python SDK for users secondary development
- Fast and user-friendly programming by Node-RED development tool
Hardware Specifications
Hardware System
- CPU: Quad-core 1.3 GHz, 64-bit ARM Cortex-A35
- Memory: 512 MB DDR3 RAM
- Flash: 8 GB eMMC
- Extendable Storage: 1 × Micro SD Slot (Internal)
LoRaWAN
- Antenna Connector: 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
- Channel: 8 (Half-duplex)
- Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
- Sensitivity: -140 dBm Sensitivity @292bps
- Tx Power: 27 dBm Max
- Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
- LBT: Support
Ethernet Interface
- Port: 1 × RJ45 WAN Port (PoE PD supported)
- Physical Layer: 10/100 Base-T (IEEE 802.3)
- Data Rate: 10/100 Mbps (Auto-Sensing)
- Interface: Auto MDI/MDIX
- Mode Full or Half Duplex (Auto-Sensing)
- Ethernet Isolation: 1.5 kV RMS
Wi-Fi Interface
- Antenna: Internal Antenna
- Standards: IEEE 802.11b/g/n, 2.4 GHz
- Tx Power:
- 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
- 802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
- 802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
- 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
- 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
- 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
- 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
Cellular Interface (Optional)
- Network: 4G LTE
- Antenna Connector: 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
- SIM Slot: 1 (Mini SIM-2FF)
Others
- Reset Button: 1 × RST (Internal)
- USB: 1 × USB Type-C for Power Supply and Console
- LED Indicators: 1 × SYSTEM, 1 × LoRa
- Built-in: Watchdog, Timer
Power Supply and Consumption
- Power Input:
- 802.3 af PoE
- 5V/2A by Type-C Port
- Power Consumption: Typical 1.8 W, Max 6.9 W
Physical Characteristics
- Ingress Protection: IP30
- Housing & Color: Metal, Black
- Weight: 186g
- Dimensions: 110 x 75 x 24 mm (4.33 x 2.95 x 0.94 in)
- Installation: Desktop, Wall Mounting, DIN Rail Mounting
Environmental
- Operating Temperature: -20°C to +60°C (-4°F to +140°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F
Approvals
- Regulatory: CE, FCC, ISED
- Environmental: RoHS
Software Specifications
LoRaWAN
- Supported Devices: Around 2000 Class A/B/C Devices (10 min uplink interval)
- Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
- Compatibility: DeviceHub LNS, Milesight Development Platform LNS, Milesight IoT Cloud, etc.
Packet Forwarder
- Noise Analyzer: Scan the noise of the frequencies for channel selection
- Packet Filter: Add whitelist or blacklist to filter the packets
- Data Retransmission: Re-transmit the data packets after network recovery
Embedded Network Server
- Decode and Encode: Inbuilt Milesight devices codec library, support custom codec setup
- Gateway Fleet: Work as the network server of other Milesight blind-filling gateways
- Multicast: Support multicast downlink control
- FUOTA: Upgrade FUOTA supported end devices
- Integration: MQTT, HTTP(s), BACnet/IP, Modbus TCP, Modbus RTU over TCP
Network
- Network Protocols:PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, MQTTS, BACnet/IP, Modbus RTU over TCP, Modbus TCP, etc.
- VPN Tunnel: OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN/WireGuard
- Firewalls: Access Control, DMZ, Port Mapping (DNAT), MAC Binding, Filtering (IP&Domain)
- DDNS: Supported >16 service providers, others can be configured manually
- Multilevel Authority: Multiple Levels of User Authority
- Reliability: WAN Failover
- Diagnostics Tools: Ping, Traceroute, Tcpdump, QXDM, Log Server
Wi-Fi Interface
- Standards: IEEE 802.11 b/g/n, 2.4GHz
- Mode: AP or Client mode
- Security:
- AP: WPA-PSK/WPA2-PSK authentication, WEP/TKIP/AES encryption
- Client: WPA-PSK/WPA2-PSK/WPA-Enterprise/WPA2-Enterprise authentication, WEP/TKIP/AES encryption
Management
- Configuration: Web, CLI (SSH/Telnet), SMS, On-demand dial up, SNMP, HTTP API, MQTT API, Milesight Development Platform, DeviceHub
- Update: Web, Milesight Development Platform, DeviceHub
- Device Management: Milesight Development Platform, DeviceHub
- Event Alarm: Power On, Network Up/Down, VPN Up/Down, etc.
Others
- App: Python SDK, Node-RED
