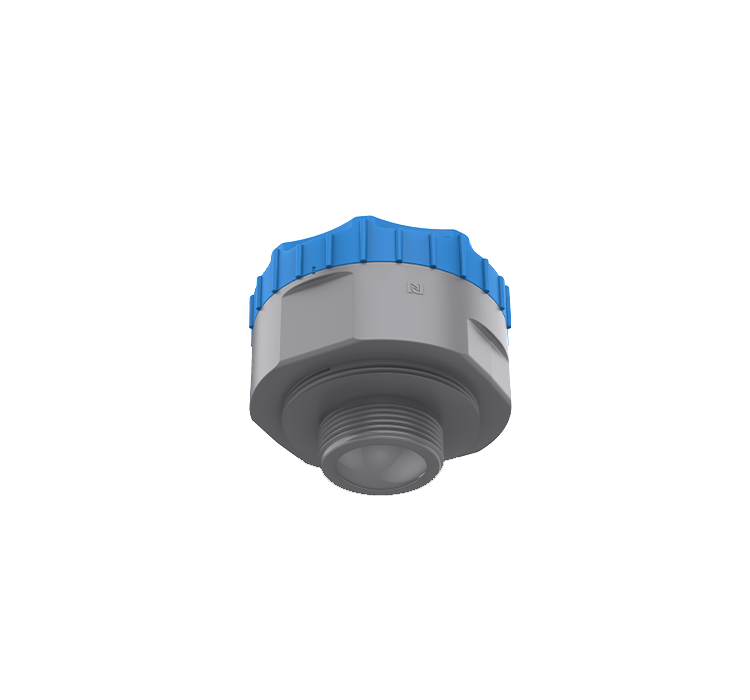

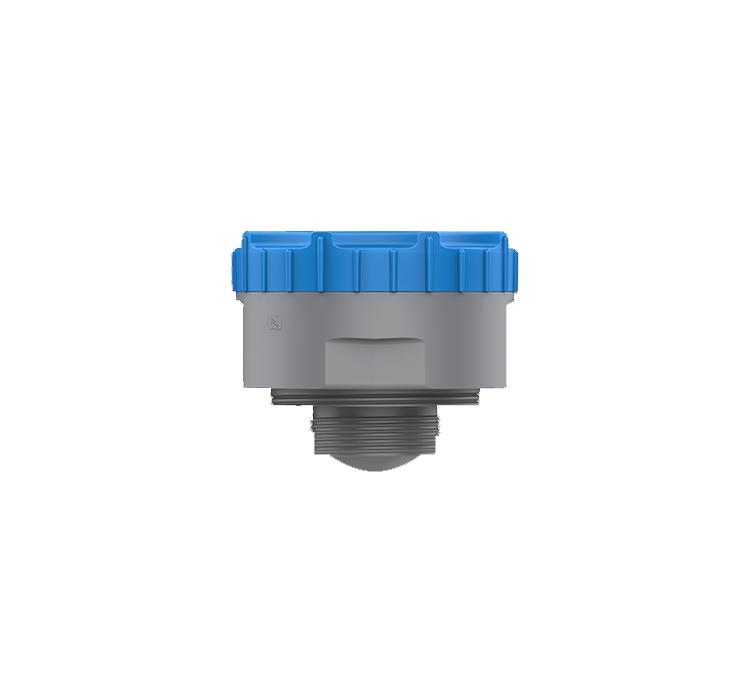

Milesight - EM410-RDL-868M
EM410-RDL is a non-contact Radar Distance/Level Sensor that adopts Millimeter Wave Radar technology. By measuring millimeter-wave signals at higher frequencies, it provides more stable performance over longer distances, and is less affected by environmental conditions. It can detect the distance between the sensor and liquid of various types, unaffected by temperature, dust, condensate etc. With IP68 waterproof and sealed enclosure, it can withstand the worst environment, while maintaining the measurement accuracy, and does not require routine maintenance.
The LoRaWAN® version can be integrated with Milesight LoRaWAN® gateway and Milesight Development Platform, enabling remote and visual management of all sensor data.
EM410-RDL can used in sewers, rivers, impounding reservoir, storage tanks and other locations that require to measure distance and level.
PACKAGE CONTENTS: EM410-RDL-868M
| Temperature Range: | Extended Temperature Range |
|---|
Features
- 8° Radar beam angle can be focused on the target fluid, enabling accurate measurement of liquid level
- Wide measuring range of 0.3m to 12m with small blind zone
- Not affected by dust, condensate, temperature, acoustic noise, etc
- Non- invasive liquid level monitoring, can detect hazardous or non-hazardous liquids
- External antenna or internal antenna versions are optional for various applications
- Built-in 3-axis accelerometer sensor to monitor device tilt status
- Support to check radar-echo curve and one-click diagnostic to calibrate the distance, ensuring the accurate measurement under different environments
- Support blind zone alarm when the ranging results are within the blind zone
- Adopt PVDF material, offering excellent corrosion resistance, wear resistance and compressive strength for harsh environments
- IP68 waterproof design, resistant in fresh water to a maximum depth of 1m for up to 48 hours
- Thread design for common tank installation without extra accessories needed
- Store up to 2,000 historical records locally and support retransmission to prevent data loss
- Easy configuration via NFC and Bluetooth
- Support management and OTA upgrade via Milesight Development Platform
- Function well with standard LoRaWAN® gateways and network servers
Specifications
Measurement
Distance
- Technology: Millimeter Wave Radar
- Target: Liquids or Smooth Surface Solid
- Radar Frequency Band: 60GHz
- Detection Angle: 8°
- Detection Distance: 0.3m ~ 12m
- Accuracy: Up to ± 2mm
- Resolution: 1mm
Device Position
- Status: Normal/Tilt
Wireless Transmission
- Frequency: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
- Tx Power: 16 dBm (868 MHz)/20 dBm (915MHz)/19 dBm (470MHz)
- Sensitivity: -137dBm @300bps
- Mode: OTAA/ABP Class A
- Antenna:
- Internal Antenna or External Antenna (Hardware Optional)
- External Antenna (EA) Version: 1 × 50 Ω SMB Male Connector
Others
- LED Indicator: 1 × LED indicator (Internal)
- Configuration: Mobile App via NFC or Bluetooth
- Advanced Feature: Distance Threshold Alarm, Distance Change Alarm, Blind Zone Alarm, Radar-echo Curve, Diagnostic, Data Storage, Data Retrievability, Data Retransmission
Physical Characteristics
- Power Supply: 1 × 19000 mAh ER34615 Li-SOCL2 Battery
- Battery Life: Around 7 Years
- Operating Temperature: -40°C ~ 70°C
- Relative Humidity: 0 ~ 100% (non-condensing)
- Ingress Protection: IP68 (1m underwater, 48 hours)
- Dimension: Φ 100 × 92.2 mm (Ф 3.94 × 3.63 in)
- Weight: 400g
- Color & Material: Blue + Grey, PVDF
- Installation: Wall Bracket Mounting, Pole Bracket Mounting, Tank Threaded Installation
