MOXA - ioThinx 4533-LX

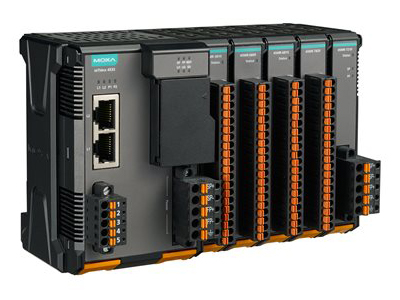

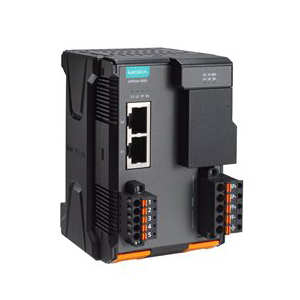

Advanced modular controller with built-in serial port, dual-core 1 GHz CPU, Linux, -20 to 60°C operating temperature
Producentens varenummer:
ioThinx 4533-LX
Vores artikelnummer:
14390
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Product information "MOXA - ioThinx 4533-LX"
The ioThinx 4530 Series is an advanced modular controller product with a unique hardware design, making it an ideal solution for a variety of industrial data-acquisition applications. The ioThinx 4530 Series has a unique mechanical design that reduces the amount of time required for installation and removal, simplifying deployment and maintenance. In addition, the ioThinx 4530 Series provides an Azure/AWS/Alibaba cloud-integration package so that users can easily save field data to different cloud accounts.
Easy Tool-free Installation and Removal
The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.
Azure/AWS/Alibaba Cloud Integration Package Provided
Saving field site data to the cloud to improve Overall Equipment Effectiveness (OEE) or implement predictive maintenance is an important aspect of IIoT or Industry 4.0 applications. To help users to connect to the cloud more easily, the ioThinx 4530 series provides a cloud integration package that includes a sample library and programming guide, saving engineers a lot of time on developing cloud connectivity applications.
Scope of delivery: MOXA - ioThinx 4533-LX
Easy Tool-free Installation and Removal
The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.
Azure/AWS/Alibaba Cloud Integration Package Provided
Saving field site data to the cloud to improve Overall Equipment Effectiveness (OEE) or implement predictive maintenance is an important aspect of IIoT or Industry 4.0 applications. To help users to connect to the cloud more easily, the ioThinx 4530 series provides a cloud integration package that includes a sample library and programming guide, saving engineers a lot of time on developing cloud connectivity applications.
Scope of delivery: MOXA - ioThinx 4533-LX
| Option: | Modulare I/O |
|---|---|
| Temperature Range: | Standard Temperature Range |
Features
- -40 to 75°C wide operating temperature model available
- Supports TPM v2.0 (optional)
- Supports secure boot function
- Easy tool-free installation and removal
- Built-in OPC UA server library
- Supports up to 64 45MR I/O and up to 5 45ML communication modules
- Includes Azure/AWS/Alibaba cloud Integration package
Technical details
Computer
CPU: NXP i.MX7D 1 GHz
OS: Linux kernel 4.4 (CIP, PREEMPT_RT), Debian 9
Clock: Real-time clock with capacitor backup
DRAM: 512 MB DDR3
MRAM: 128 kB
Storage Pre-installed: 8 GB eMMC (6 GB reserved for the user)
Storage Slot: microSD Slots x 1 (up to 32 GB)
Expansion Slots: Up to 64 (with 45MR I/O modules), Up to 5 (with 45ML communication modules)
Control Logic
Language: C/C++, Python
Computer Interface
Buttons: Reset button
Input/Output Interface
Rotary Switch: 0 to 9
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): Auto negotiation speed
Magnetic Isolation Protection: 1.5 kV (built-in)
Security Functions
Authentication: Local database
Encryption: AES-256, SHA-256
Security Protocols: SSHv2
Serial Interface
Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
No. of Ports: 1 x RS-232/422 or 2 x RS-485-2w
Connector: Spring-type Euroblock terminal
Serial Standards: RS-232/422/485 (software selectable)
Baudrate: 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Flow Control: RTS/CTS
Parity: None, Even, Odd
Stop Bits: 1, 2
Data Bits: 7, 8
Serial Signals
RS-232: TxD, RxD, RTS, CTS, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
System Power Parameters
Power Connector: Spring-type Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12 to 48 VDC
Power Consumption: 1940 mA @ 12 VDC
Over-Current Protection: 3 A @ 25°C
Over-Voltage Protection: 55 VDC
Output Current: 1 A (max.)
Field Power Parameters
Power Connector: Spring-type Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12/24 VDC
Over-Current Protection: 5 A @ 25°C
Over-Voltage Protection: 33 VDC
Output Current: 2 A (max.)
Physical Characteristics
Wiring: Serial cable, 16 to 28 AWG; Power cable, 12 to 26 AWG
Strip Length: Serial cable, 9 to 10 mm; Power cable, 12 to 13 mm
Housing: Plastic
Dimensions: 60.3 x 99 x 75 mm (2.37 x 3.9 x 2.96 in)
Weight: 207.7 g (0.457 lb)
Installation: DIN-rail mounting
Environmental Limits
Operating Temperature: -20 to 60°C (-4 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 4000 m
Computer
CPU: NXP i.MX7D 1 GHz
OS: Linux kernel 4.4 (CIP, PREEMPT_RT), Debian 9
Clock: Real-time clock with capacitor backup
DRAM: 512 MB DDR3
MRAM: 128 kB
Storage Pre-installed: 8 GB eMMC (6 GB reserved for the user)
Storage Slot: microSD Slots x 1 (up to 32 GB)
Expansion Slots: Up to 64 (with 45MR I/O modules), Up to 5 (with 45ML communication modules)
Control Logic
Language: C/C++, Python
Computer Interface
Buttons: Reset button
Input/Output Interface
Rotary Switch: 0 to 9
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): Auto negotiation speed
Magnetic Isolation Protection: 1.5 kV (built-in)
Security Functions
Authentication: Local database
Encryption: AES-256, SHA-256
Security Protocols: SSHv2
Serial Interface
Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
No. of Ports: 1 x RS-232/422 or 2 x RS-485-2w
Connector: Spring-type Euroblock terminal
Serial Standards: RS-232/422/485 (software selectable)
Baudrate: 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Flow Control: RTS/CTS
Parity: None, Even, Odd
Stop Bits: 1, 2
Data Bits: 7, 8
Serial Signals
RS-232: TxD, RxD, RTS, CTS, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
System Power Parameters
Power Connector: Spring-type Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12 to 48 VDC
Power Consumption: 1940 mA @ 12 VDC
Over-Current Protection: 3 A @ 25°C
Over-Voltage Protection: 55 VDC
Output Current: 1 A (max.)
Field Power Parameters
Power Connector: Spring-type Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12/24 VDC
Over-Current Protection: 5 A @ 25°C
Over-Voltage Protection: 33 VDC
Output Current: 2 A (max.)
Physical Characteristics
Wiring: Serial cable, 16 to 28 AWG; Power cable, 12 to 26 AWG
Strip Length: Serial cable, 9 to 10 mm; Power cable, 12 to 13 mm
Housing: Plastic
Dimensions: 60.3 x 99 x 75 mm (2.37 x 3.9 x 2.96 in)
Weight: 207.7 g (0.457 lb)
Installation: DIN-rail mounting
Environmental Limits
Operating Temperature: -20 to 60°C (-4 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 4000 m
