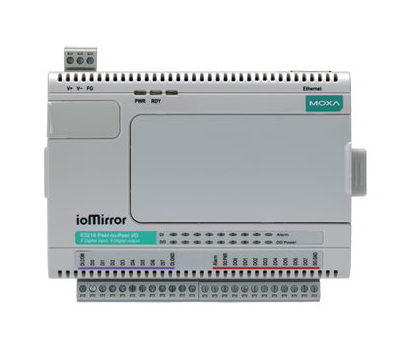

MOXA - ioMirror E3210
Universal Peer-to-Peer I/O, 8 DIs, 8 DOs, -10 to 60°C operating temperature
Producentens varenummer:
ioMirror E3210
Vores artikelnummer:
10930
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "MOXA - ioMirror E3210"
The ioMirror E3200 Series, which is designed as a cable-replacement solution to connect remote digital input signals to output signals over an IP network, provides 8 digital input channels, 8 digital output channels, and a 10/100M Ethernet interface. Up to 8 pairs of digital input and output signals can be exchanged over Ethernet with another ioMirror E3200 Series device, or can be sent to a local PLC or DCS controller. Over a local area network, the ioMirror can achieve a low signal latency (typically less than 20 ms). With the ioMirror, remote sensors can be connected to local controllers or display panels over copper, fiber, or wireless Ethernet infrastructures, and signals can be transmitted over virtually unlimited distances, without noise problems.
Split Sensor Signals to 16 Different Locations
The ioMirror E3200 Series can split one input signal to two digital output channels at two different IP addresses. Eight tank level signals can be monitored at 16 different display panels, all at the same time.
Local Alarm and Remote Alarm Messages for Monitoring Connectivity
The ioMirror E3200 Series has a 24 VDC alarm output channel that can activate an attached buzzer or LED display when the connection fails. In addition, both ioMirror modules can send messages to the ioEventLog software, ensuring that at least one of the warning messages will reach the ioEventLog software.
Scope of delivery: MOXA - ioMirror E3210
Split Sensor Signals to 16 Different Locations
The ioMirror E3200 Series can split one input signal to two digital output channels at two different IP addresses. Eight tank level signals can be monitored at 16 different display panels, all at the same time.
Local Alarm and Remote Alarm Messages for Monitoring Connectivity
The ioMirror E3200 Series has a 24 VDC alarm output channel that can activate an attached buzzer or LED display when the connection fails. In addition, both ioMirror modules can send messages to the ioEventLog software, ensuring that at least one of the warning messages will reach the ioEventLog software.
Scope of delivery: MOXA - ioMirror E3210
| I/O Interfaces: | Digital Input, Digital Output, I/O Sink |
|---|---|
| Interface: | Ethernet |
| Protocol: | ModBus, TCP, UDP |
| Temperature Range: | Standard Temperature Range |
Features
- Direct input-to-output signal communication over IP
- High-speed peer-to-peer I/O within 20 ms
- One physical alarm port for connectivity status
- Utility for quick and easy web-based settings
- Local alarm channel
- Remote alarm message
- Supports Modbus TCP for remote monitoring
- Optional LCD module for easy configuration
Technical details
Input/Output Interface
Digital Input Channels: 8
Digital Output Channels: 8
Alarm Contact Channels: 1
Isolation: 3k VDC or 2k Vrms
Buttons: Reset button
Digital Inputs
Connector: Screw-fastened Euroblock terminal
Digital Filtering Time Interval: Software configurable
Dry Contact: On: short to GND; Off: open
I/O Mode: DI
Over-Voltage Protection: 36 VDC
Points per COM: 8 channels
Sensor Type: Dry contact, Wet Contact (NPN)
Wet Contact (DI to GND): On: 10 to 30 VDC; Off: 0 to 3 VDC
Digital Outputs
Connector: Screw-fastened Euroblock terminal
Current Rating: 200 mA per channel
I/O Mode: DO
I/O Type: Sink
Over-Current Protection: 0.6 A per channel @ 25°C
Over-Temperature Shutdown: 160°C (min.)
Over-Voltage Protection: 35 VDC
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 1
Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
Configuration Options: Web Console (HTTP), Windows Utility (ioMirrorAdmin)
Industrial Protocols: Modbus TCP Server (Slave)
Management: BOOTP, DHCP Client, HTTP, TCP/IP, UDP
Time Management: SNTP
Modbus TCP
Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16
LED Interface
LED Indicators: PWR, Ready
Power Parameters
Power Connector: Screw-fastened Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12 to 48 VDC
Power Consumption: 136 mA @ 24 VDC
Alarm Contacts
I/O Type: Sink
Current Rating: Max. 200 mA per channel
Connector: Screw-fastened Euroblock terminal
Physical Characteristics
Housing: Plastic
Dimensions: 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)
Weight: 205 g (0.45 lb)
Wiring: I/O cable, 16 to 26 AWG; Power cable, 16 to 26 AWG
Installation: Wall mounting, DIN-rail mounting
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m (Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.)
Input/Output Interface
Digital Input Channels: 8
Digital Output Channels: 8
Alarm Contact Channels: 1
Isolation: 3k VDC or 2k Vrms
Buttons: Reset button
Digital Inputs
Connector: Screw-fastened Euroblock terminal
Digital Filtering Time Interval: Software configurable
Dry Contact: On: short to GND; Off: open
I/O Mode: DI
Over-Voltage Protection: 36 VDC
Points per COM: 8 channels
Sensor Type: Dry contact, Wet Contact (NPN)
Wet Contact (DI to GND): On: 10 to 30 VDC; Off: 0 to 3 VDC
Digital Outputs
Connector: Screw-fastened Euroblock terminal
Current Rating: 200 mA per channel
I/O Mode: DO
I/O Type: Sink
Over-Current Protection: 0.6 A per channel @ 25°C
Over-Temperature Shutdown: 160°C (min.)
Over-Voltage Protection: 35 VDC
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 1
Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
Configuration Options: Web Console (HTTP), Windows Utility (ioMirrorAdmin)
Industrial Protocols: Modbus TCP Server (Slave)
Management: BOOTP, DHCP Client, HTTP, TCP/IP, UDP
Time Management: SNTP
Modbus TCP
Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16
LED Interface
LED Indicators: PWR, Ready
Power Parameters
Power Connector: Screw-fastened Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12 to 48 VDC
Power Consumption: 136 mA @ 24 VDC
Alarm Contacts
I/O Type: Sink
Current Rating: Max. 200 mA per channel
Connector: Screw-fastened Euroblock terminal
Physical Characteristics
Housing: Plastic
Dimensions: 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)
Weight: 205 g (0.45 lb)
Wiring: I/O cable, 16 to 26 AWG; Power cable, 16 to 26 AWG
Installation: Wall mounting, DIN-rail mounting
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m (Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.)
