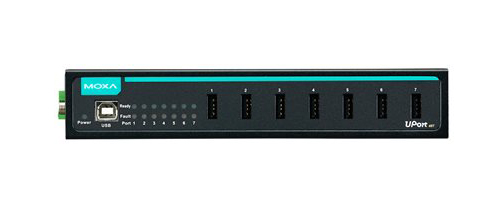

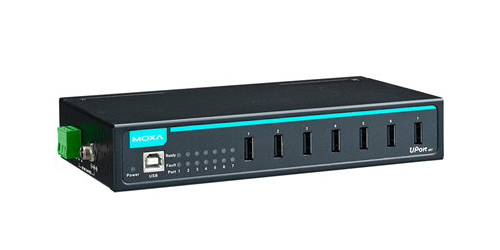

MOXA - UPort 407-T
7-port industrial USB hub, -40 to 85°C operating temperature
Producentens varenummer:
UPort 407-T w/o Adapter
Vores artikelnummer:
11584
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "MOXA - UPort 407-T"
The UPort® 404 and UPort® 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission rates through each port, even for heavy-load applications. The UPort® 404/407 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high-quality USB 2.0 hubs. In addition, the hubs are fully compliant with the USB plug-and-play spec and provide a full 500 mA of power per port, ensuring that your USB devices function properly. The UPort® 404 and UPort® 407 hubs’ support 12-40 VDC power, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.
Scope of delivery: MOXA - UPort 407-T
Scope of delivery: MOXA - UPort 407-T
| Connection: | USB Port |
|---|---|
| Power Supply: | External |
| Serial Ports: | 7 Ports |
| Temperature Range: | Extended Temperature Range |
Features
USB-IF Certification
The UPort® 404 and UPort® 407 USB 2.0 industrial-grade USB hubs have received the USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the high-speed USB operation of USB hubs designed to the USB 2.0 specification. This means that the UPort® 404/407 support Hi-Speed USB 2.0 for up to 480 Mbps USB transmission, which is fully compliant with interoperability requirements, has enough power for devices to function, and facilitates a smooth transition back to high-speed operation from the suspended state.
ESD Level 4 Protection
Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise-time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, Moxa’s UPort® 404/407 USB hubs provide ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user’s end product.
USB-IF Certification
The UPort® 404 and UPort® 407 USB 2.0 industrial-grade USB hubs have received the USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the high-speed USB operation of USB hubs designed to the USB 2.0 specification. This means that the UPort® 404/407 support Hi-Speed USB 2.0 for up to 480 Mbps USB transmission, which is fully compliant with interoperability requirements, has enough power for devices to function, and facilitates a smooth transition back to high-speed operation from the suspended state.
ESD Level 4 Protection
Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise-time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, Moxa’s UPort® 404/407 USB hubs provide ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user’s end product.
Technical details
USB Interface
Speed: 12 Mbps, 480 Mbps
USB Connector: USB Type B
USB Standards: USB 1.1/2.0 compliant
No. of USB Ports: 7
Power Parameters
Input Current: 2.3 A @ 12 VDC
Input Voltage: 12 to 40 VDC
Physical Characteristics
Housing: Aluminum
Dimensions: 100 x 35 x 192 mm (3.94 x 1.38 x 7.56 in)
Weight: Packaged: 965 g (2.13 lb), Product only: 950 g (2.1 lb)
Installation: Wall mounting, DIN-rail mounting (optional)
Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
USB Interface
Speed: 12 Mbps, 480 Mbps
USB Connector: USB Type B
USB Standards: USB 1.1/2.0 compliant
No. of USB Ports: 7
Power Parameters
Input Current: 2.3 A @ 12 VDC
Input Voltage: 12 to 40 VDC
Physical Characteristics
Housing: Aluminum
Dimensions: 100 x 35 x 192 mm (3.94 x 1.38 x 7.56 in)
Weight: Packaged: 965 g (2.13 lb), Product only: 950 g (2.1 lb)
Installation: Wall mounting, DIN-rail mounting (optional)
Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
