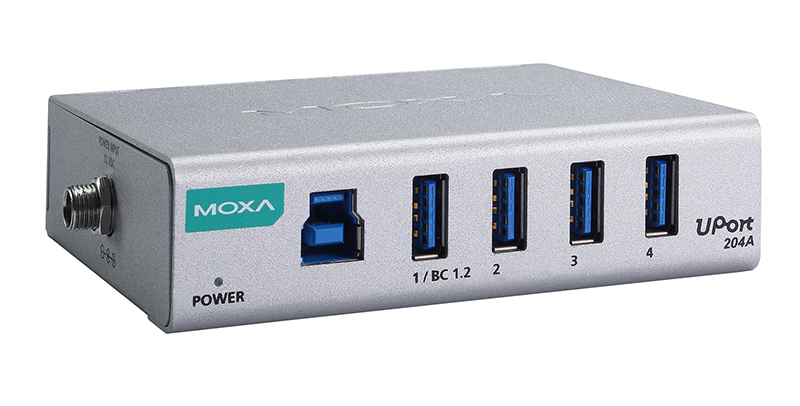

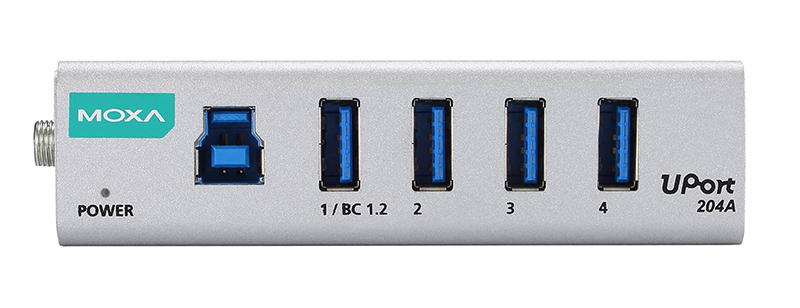

MOXA - UPort 204A
The UPort® 200A Series general-purpose USB 3.2 hubs can expand an USB port into 4 or 7 USB ports. The hubs are designed to provide true USB 3.2 Gen 1 SuperSpeed 5 Gbps data transmission rates through each port. The hubs are fully compliant with the USB plug-and-play spec and provide full 900 mA power per port, ensuring that your USB devices function properly. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.
BC 1.2 Compatibility
The UPort® 200A Series hubs has BC 1.2 compatible on port 1, which would provide 1.5 A charging power to the mobile device/power bank that also supports BC 1.2. The UPort® 200A Series supports CDP, DCD and SCD type.
ESD Level 4 Protection
Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise-time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, Moxa’s UPort® 200A Series USB hubs provide ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user’s end product.
PACKAGE CONTENTS:
- 1x UPort 204A USB hub
- 1 x USB 3.2 Gen 1 type A male to USB type B male cable, 1.2 M
- 1 x power adapter, suitable for your region
- 4 x rubber stand
| Mounting: | DIN-Rail |
|---|---|
| Port Number: | 5 Ports |
| Power Supply: | 12V DC |
| Temperature Range: | Standard Temperature Range |
Features
- USB-IF certification
- USB 3.2 SuperSpeed capability
- IP30 aluminum housing
- DIN-rail housing and wall-mountable housing
- 5-year warranty
Specifications
USB Interface
- USB Standards:
- USB 1.1/2.0 compliant
- USB 3.2 Gen 1
- Speed: 5 Gbps
- USB Connector:
- UFP: type B
- DFP: type A
- No. of USB Ports: 5 (UFP: 1, DFP 4)
Power Parameters
- Input Voltage: No. of power inputs: 1, 12 VDC
- Power Connector: Power jack
- Power Consumption: 2.65 A @ 12 VDC
- Reverse Polarity Protection: Supported
- Output Power Rating:
- Port 1: 900 / 1500 mA @ 5 VDC (BC 1.2 compatible)
- Rest of ports: 900 mA @ 5 VDC
Physical Characteristics
- Housing: Metal
- Dimensions: 85 x 27 x 100 mm (3.35 x 1.06 x 3.94 in)
- Weight: 208 g (0.46 lb)
- Installation: DIN-rail mounting (with optional kit), Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -20 to 75°C (-4 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS:
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
- IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
- IEC 61000-4-4 EFT: Power: 1 kV
- IEC 61000-4-5 Surge: Power: 1 kV
- IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
- IEC 61000-4-8 PFMF
- Safety: EN 62368-1, UL 62368-1, KC
- Environmental Testing: IEC 60068-2-1
- Freefall: IEC 60068-2-34
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Standards: Telcordia (Bellcore), GB
- Time: 2,678,801 hours
