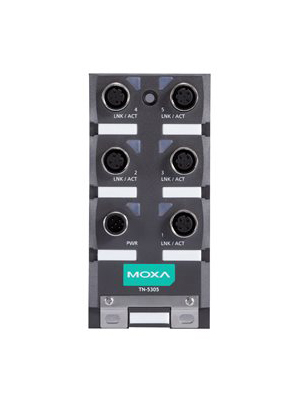

MOXA - TN-5305-T
Unmanaged IP67-rated Ethernet switch with 5 10/100BaseT(X) ports with M12 connectors, -40 to 75°C operating temperature, M12 power cable
Producentens varenummer:
TN-5305-T
Vores artikelnummer:
11678
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
We will find a suitable replacement product for your requirements - please contact our sales department.
Produktinformation "MOXA - TN-5305-T"
The TN-5305 Series Ethernet switches are IP67-rated for tough industrial applications. By using M12 connectors, you can rest assured that Ethernet cables will connect tightly to the switch, and will be robust enough to protect your applications from external disturbances, such as the vibration and shock encountered in the transportation industry.
The space-saving TN-5305 switches can be mounted virtually anywhere, and wide operating temperature (-40 to 75°C) models are also available for use in the most extreme weather conditions. TN-5305 Series Ethernet switches comply with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.
Scope of delivery: MOXA - TN-5305-T
The space-saving TN-5305 switches can be mounted virtually anywhere, and wide operating temperature (-40 to 75°C) models are also available for use in the most extreme weather conditions. TN-5305 Series Ethernet switches comply with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.
Scope of delivery: MOXA - TN-5305-T
| Certifications: | EN 50121, EN 50155, IP 67 |
|---|---|
| Connection: | 10 /100 |
| Mounting: | DIN-Rail |
| Option: | M12 port |
| Port Number: | 5 Ports |
| Power Supply: | 24V DC |
| Temperature Range: | -40°C to 75°C |
| Management: | Layer 2 unmanaged |
Features
- 10/100BaseT(X), 4-pin M12 (D-coded), F/H duplex mode, and auto MDI/MDI-X connection
- IP67-rated housing protection
- Power input: 12 to 45 VDC, 18 to 30 VAC
- Complies with all EN 50155 mandatory test items
- -40 to 75°C operating temperature range (-T models)
Technical details
Ethernet Interface
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 5
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control
Power Parameters
Input Current: 0.1 A @ 24 VDC, 0.08 A @ 36 VDC
Input Voltage: 18 to 30 VAC (47 to 63 Hz), 24 to 36 VDC
Inrush Current (Max.): 0.28 A @ 24 VDC
No. of Power Inputs: 1
Operating Voltage: 18 to 30 VAC, 12 to 45 VDC
Power Connector: M12 A-coded male connector
Physical Characteristics
Housing: Plastic top cover, metal bottom plate
IP Rating: IP67
Dimensions: 60 x 125 x 29.6 mm (2.36 x 4.92 x 1.09 in)
Weight: Packaged: 270 g (0.56 lb)
Installation: DIN-rail mounting (with optional kit), Wall mounting
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m
Ethernet Interface
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 5
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control
Power Parameters
Input Current: 0.1 A @ 24 VDC, 0.08 A @ 36 VDC
Input Voltage: 18 to 30 VAC (47 to 63 Hz), 24 to 36 VDC
Inrush Current (Max.): 0.28 A @ 24 VDC
No. of Power Inputs: 1
Operating Voltage: 18 to 30 VAC, 12 to 45 VDC
Power Connector: M12 A-coded male connector
Physical Characteristics
Housing: Plastic top cover, metal bottom plate
IP Rating: IP67
Dimensions: 60 x 125 x 29.6 mm (2.36 x 4.92 x 1.09 in)
Weight: Packaged: 270 g (0.56 lb)
Installation: DIN-rail mounting (with optional kit), Wall mounting
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m
