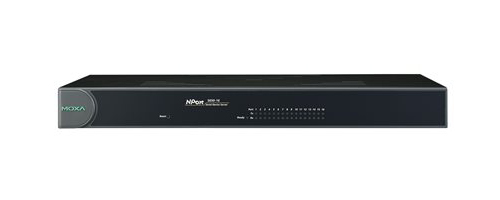

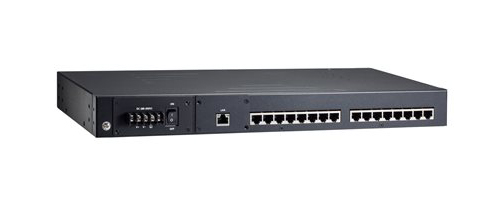

MOXA - NPort 5610-16
16-port RS-232 rackmount device server with RJ45 connectors and 100 to 240 VAC power input
Listepris:
8.910,20 kr.*
Forhandlerpris - Login
Leveringstid: Varer er bestilt, vil være tilgængelige igen inden længe
Producentens varenummer:
NPort 5610-16
Vores artikelnummer:
10234
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "MOXA - NPort 5610-16"
With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.
Scope of delivery: MOXA - NPort 5610-16
Scope of delivery: MOXA - NPort 5610-16
| Connection: | Fiber Optic |
|---|---|
| Power Supply: | Internal Single AC |
| Protocol: | RS 232 |
| Serial Ports: | 16 Ports |
Features
- Standard 19-inch rackmount size
- Easy IP address configuration with LCD panel (excluding wide-temperature models)
- Configure by Telnet, web browser, or Windows utility
- Socket modes: TCP server, TCP client, UDP
- SNMP MIB-II for network management
- Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
- Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Technical details
Ethernet Interface
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
- Magnetic Isolation Protection: 1.5 kV (built-in)
- Optical Fiber
- Configuration Options: Telnet Console, Web Console (HTTP/HTTPS), Windows Utility
- Management: ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
- Filter: IGMP v1/v2c
- Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
- Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
- Android API: Android 3.1.x and later
- Time Management: SNTP
- Authentication: Local database
- Encryption: HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
- Security Protocols: HTTPS (TLS 1.2), SNMPv3
- Connector: 8-pin RJ45
- No. of Ports: 16
- Serial Standards: RS-232
- Operation Modes: Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
- Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
- Terminator for RS-485: 120 ohms
- RS-485 Data Direction Control: ADDC® (automatic data direction control)
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Input Current: 141 mA @ 100 VAC
- Input Voltage: 100 to 240 VAC, 47 to 63 Hz
- Automatic Reboot Trigger: Built-in WDT
- Housing: Metal
- Installation: 19-inch rack mounting
- Dimensions (with ears): 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
- Dimensions (without ears): 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
- Weight: 2,490 g (5.49 lb)
- Interactive Interface: LCD panel display, Push buttons for configuration
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature (package included): -20 to 70°C (-4 to 158°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
