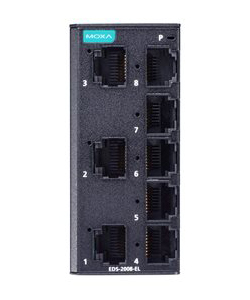

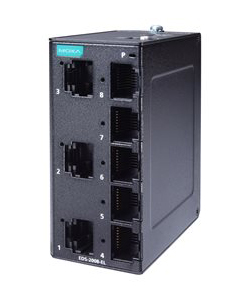

MOXA - EDS-2008-EL - Fast-Ethernet Switch
Unmanaged Fast Ethernet switch with 8x 10/100BaseT(X) ports (-10 to 60°C operating temperature)
Producentens varenummer:
EDS-2008-EL
Vores artikelnummer:
14302
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "MOXA - EDS-2008-EL - Fast-Ethernet Switch"
The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.
The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Scope of delivery: MOXA - EDS-2008-EL
The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.
Scope of delivery: MOXA - EDS-2008-EL
| Connection: | 10 / 100 / 1000-TX (RJ45) |
|---|---|
| IP Level: | IP40 |
| Port Number: | 8 Ports |
| Temperature Range: | -10°C to 60°C |
Features
- 10/100BaseT(X) (RJ45 connector)
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40-rated metal housing
- -40 to 75°C wide operating temperature range (-T models)
Technical details
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): EDS-2008-EL: 8, EDS-2008-EL-M-ST: 7, EDS-2008-EL-M-SC: 7, Full/Half duplex mode, Auto MDI/MDI-X connection, Auto negotiation speed
100BaseFX Ports (multi-mode SC connector): EDS-2008-EL-M-SC: 1
100BaseFX Ports (multi-mode ST connector): EDS-2008-EL-M-ST: 1
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.1p for Class of Service
Optical Fiber
Switch Properties
Processing Type: Store and Forward
MAC Table Size: 2 K
Packet Buffer Size: 768 kbits
DIP Switch Configuration
Ethernet Interface: Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power Parameters
Connection: 1 removable 2-contact terminal block(s)
Input Current: EDS-2008-EL: 0.067A @ 24 VDC, EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.105A @ 24 VDC
Input Voltage: 12/24/48 VDC
Operating Voltage: 9.6 to 60 VDC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Physical Characteristics
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Weight: 163 g (0.36 lb)
Housing: Metal
Dimensions: EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in), EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) (w/ connector), EDS-2008-EL-M-SC: 36 x 81 x 68.9 mm (1.4 x 3.19 x 2.71 in) (w/ connector)
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Operating Temperature: EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60°C (14 to 140°F), EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): EDS-2008-EL: 8, EDS-2008-EL-M-ST: 7, EDS-2008-EL-M-SC: 7, Full/Half duplex mode, Auto MDI/MDI-X connection, Auto negotiation speed
100BaseFX Ports (multi-mode SC connector): EDS-2008-EL-M-SC: 1
100BaseFX Ports (multi-mode ST connector): EDS-2008-EL-M-ST: 1
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.1p for Class of Service
Optical Fiber
Switch Properties
Processing Type: Store and Forward
MAC Table Size: 2 K
Packet Buffer Size: 768 kbits
DIP Switch Configuration
Ethernet Interface: Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power Parameters
Connection: 1 removable 2-contact terminal block(s)
Input Current: EDS-2008-EL: 0.067A @ 24 VDC, EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.105A @ 24 VDC
Input Voltage: 12/24/48 VDC
Operating Voltage: 9.6 to 60 VDC
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Physical Characteristics
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Weight: 163 g (0.36 lb)
Housing: Metal
Dimensions: EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in), EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) (w/ connector), EDS-2008-EL-M-SC: 36 x 81 x 68.9 mm (1.4 x 3.19 x 2.71 in) (w/ connector)
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Operating Temperature: EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60°C (14 to 140°F), EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
