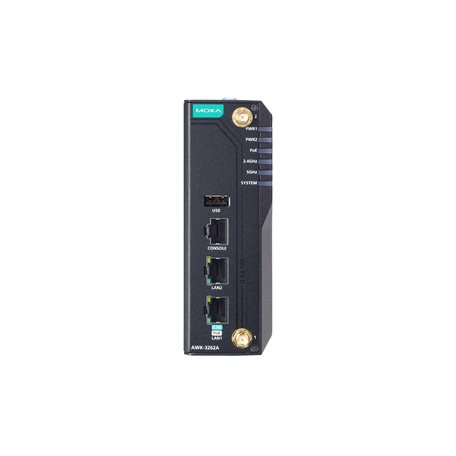

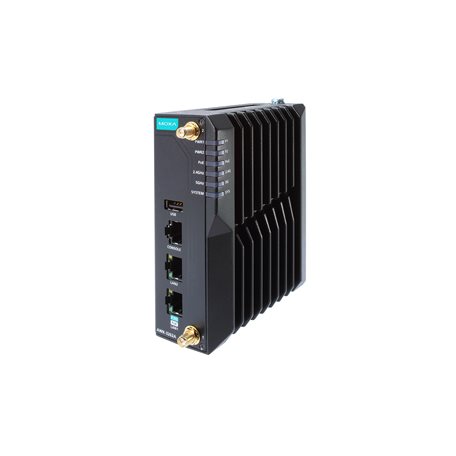

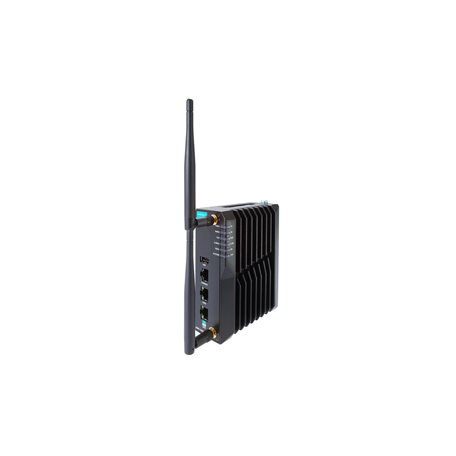

MOXA - AWK-3262A-UN

Industrial IEEE 802.11ax Wi-Fi 6 wireless AP/bridge/client
MOXA - AWK-3262A-UN
MOXA - AWK-3262A-UN
MOXA - AWK-3262A-UN
MOXA - AWK-3262A-UN
MOXA - AWK-3262A-UN
MOXA - AWK-3262A-UN
MOXA - AWK-3262A-UN
MOXA - AWK-3262A-UN
MOXA - AWK-3262A-UN
MOXA - AWK-3262A-UN
Listepris:

7.360,60 kr.*

Priser ekskl. moms plus forsendelsesomkostninger

Leveringstid: I øjeblikket ca. 3 - 4 uger

Icon
Priser for større mængder, spørg venligst.
Tlf: +45 8699 7996 eller e-mail: shop@s-connect.dk
Producentens varenummer: AWK-3262A-UN
Vores artikelnummer: 15004
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "MOXA - AWK-3262A-UN"

The AWK-3262A Series 3-in-1 industrial wireless AP/bridge/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ax technology for aggregated data rates of up to 1.775 Gbps. The AWK-3262A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-3262A can be powered via PoE to facilitate flexible deployment. The AWK-3262A can operate concurrently on both the 2.4 and 5 GHz bands and is backwards-compatible with existing 802.11a/b/g/n/ac deployments to future-proof your wireless investments.

Advanced 802.11ax Industrial Wireless Solution

  • 802.11a/b/g/n/ac/ax compliant AP/bridge/client for flexible deployment
  • Wi-Fi 6 OFDMA (Orthogonal Frequency-Division Multiple Access) technology enables concurrent communication with multiple clients for improved network efficiency
  • DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

Advanced Wireless Technology

  • Seamless roaming with client-based Turbo Roaming1 for < 150 ms roaming recovery time between APs (Client Mode)

Industrial Ruggedness

  • Integrated antenna isolation designed to provide protection against external electrical interference
  • -40 to 75°C wide operating temperature models (-T) provided for smooth wireless communication in harsh environments

PACKAGE CONTENTS:

  • 1 x AWK-3262A Series wireless AP/bridge/client
  • 1 x DIN-rail kit
  • 2 x 2.4/5 GHz antenna
  • 1 x quick installation guide
  • 1 x warranty card

Access Points: Access Points, Bridges, Client

Features

  • IEEE 802.11ax Wi-Fi 6 AP/bridge/client
  • Concurrent dual-band Wi-Fi with aggregated data rates up to 1.775 Gbps
  • Wi-Fi 6 OFDMA technology enables concurrent communication with multiple clients for high density environment
  • Latest WPA3 encryption for enhanced wireless network security
  • Millisecond-level Client-based Turbo Roaming
  • Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
  • Universal (UN) models with configurable country or region code for more flexible deployment
  • -40 to 75°C wide operating temperature models (-T) provided for smooth wireless communication in harsh environments

Specifications


WLAN Interface

  • WLAN Standards:
    • 2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz
    • 5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHz
  • Frequency Band for UN (20 MHz operating channels):
    • 2.412 to 2.472 GHz (13 channels)
    • 5.180 to 5.240 GHz (4 channels)
    • 5.260 to 5.320 GHz (4 channels)
    • 5.500 to 5.700 GHz (11 channels)
    • 5.745 to 5.825 GHz (5 channels)
  • Wireless Security:
    • WEP encryption (64-bit and 128-bit)
    • WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
    • WPA/WPA2/WPA3-Personal
  • Transmission Rate:
    • 2.4 GHz: Up to 573.5 Mbps
    • 5 GHz: Up to 1,201 Mbps
  • Transmitter Power for 802.11a (Dual Chain):
    • 27±1.5 dBm @ 6 Mbps
    • 24.5±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (5 GHz, Dual Chain):
    • 26±1.5 dBm @ MCS0 20 MHz
    • 22±1.5 dBm @ MCS7 20 MHz
    • 26±1.5 dBm @ MCS0 40 MHz
    • 22±1.5 dBm @ MCS7 40 MHz
  • Transmitter Power for 802.11ac (Dual Chain):
    • 26±1.5 dBm @ MCS0 20 MHz
    • 22±1.5 dBm @ MCS8 20 MHz
    • 25±1.5 dBm @ MCS0 40 MHz
    • 21±1.5 dBm @ MCS9 40 MHz
    • 25±1.5 dBm @ MCS0 80 MHz
    • 21±1.5 dBm @ MCS9 80 MHz
  • Transmitter Power for 802.11ax (Dual Chain):
    • 25±1.5 dBm @ MCS0 20 MHz
    • 20±1.5 dBm @ MCS11 20 MHz
    • 25±1.5 dBm @ MCS0 40 MHz
    • 20±1.5 dBm @ MCS11 40 MHz
    • 25±1.5 dBm @ MCS0 80 MHz
    • 20±1.5 dBm @ MCS11 80 MHz
  • Transmitter Power for 802.11b (Dual Chain):
    • 29±1.5 dBm @ 1 Mbps
    • 29±1.5 dBm @ 11 Mbps
  • Transmitter Power for 802.11g (Dual Chain):
    • 27±1.5 dBm @ 6 Mbps
    • 26±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (2.4 GHz, Dual Chain):
    • 26±1.5 dBm @ MCS0 20 MHz
    • 24±1.5 dBm @ MCS7 20 MHz
    • 26±1.5 dBm @ MCS0 40 MHz
    • 24±1.5 dBm @ MCS7 40 MHz
  • Transmitter Power for 802.11ac (2.4 GHz, Dual Chain):
    • 26±1.5 dBm @ MCS0 20 MHz
    • 24±1.5 dBm @ MCS8 20 MHz
    • 26±1.5 dBm @ MCS0 40 MHz
    • 23±1.5 dBm @ MCS9 40 MHz
  • Transmitter Power for 802.11ax (2.4 GHz, Dual Chain):
    • 26±1.5 dBm @ MCS0 20 MHz
    • 21±1.5 dBm @ MCS11 20 MHz
    • 26±1.5 dBm @ MCS0 40 MHz
    • 21±1.5 dBm @ MCS11 40 MHz
  • Receiver Sensitivity for 802.11a:
    • Typ. -90 dBm @ 6 Mbps
    • Typ. -72 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (5 GHz):
    • Typ. -89 dBm @ MCS0 20 MHz
    • Typ. -69 dBm @ MCS7 20 MHz
    • Typ. -86 dBm @ MCS0 40 MHz
    • Typ. -66 dBm @ MCS7 40 MHz
  • Receiver Sensitivity for 802.11ac (5 GHz):
    • Typ. -89 dBm @ MCS0 20 MHz
    • Typ. -66 dBm @ MCS8 20 MHz
    • Typ. -86 dBm @ MCS0 40 MHz
    • Typ. -62 dBm @ MCS9 40 MHz
    • Typ. -83 dBm @ MCS0 80 MHz
    • Typ. -58 dBm @ MCS9 80 MHz
  • Receiver Sensitivity for 802.11ax (5 GHz):
    • Typ. -90 dBm @ MCS0 20 MHz
    • Typ. -59 dBm @ MCS11 20 MHz
    • Typ. -87 dBm @ MCS0 40 MHz
    • Typ. -56 dBm @ MCS11 40 MHz
    • Typ. -84 dBm @ MCS0 80 MHz
    • Typ. -53 dBm @ MCS11 80 MHz
  • Receiver Sensitivity for 802.11b:
    • Typ. -96 dBm @ 1 Mbps
    • Typ. -88 dBm @ 11 Mbps
  • Receiver Sensitivity for 802.11g:
    • Typ. -91 dBm @ 6 Mbps
    • Typ. -75 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (2.4 GHz):
    • Typ. -91 dBm @ MCS0 20 MHz
    • Typ. -72 dBm @ MCS7 20 MHz
    • Typ. -88 dBm @ MCS0 40 MHz
    • Typ. -69 dBm @ MCS7 40 MHz
  • Receiver Sensitivity for 802.11ac (2.4 GHz):
    • Typ. -91 dBm @ MCS0 20 MHz
    • Typ. -68 dBm @ MCS8 20 MHz
    • Typ. -88 dBm @ MCS0 40 MHz
    • Typ. -64 dBm @ MCS9 40 MHz
  • Receiver Sensitivity for 802.11ax (2.4 GHz):
    • Typ. -91 dBm @ MCS0 20 MHz
    • Typ. -59 dBm @ MCS11 20 MHz
    • Typ. -88 dBm @ MCS0 40 MHz
    • Typ. -56 dBm @ MCS11 40 MHz
  • WLAN Operation Mode:
    • Access point
    • Client
    • Client-Router
    • Master
    • Slave
    • Sniffer
  • Antenna:
    • External, 2/2 dBi
    • Omni-directional
  • Antenna Connectors: 2 RP-SMA female

Ethernet Interface

  • Standards:
    • IEEE 802.3 for 10BaseT
    • IEEE 802.3u for 100BaseT(X)
    • IEEE 802.3ab for 1000BaseT(X)
    • IEEE 802.3bz for 2.5GBaseT
    • IEEE 802.3af for PoE
    • IEEE 802.3at for PoE
    • IEEE 802.3az for Energy-Efficient Ethernet
    • IEEE 802.1Q for VLAN Tagging
    • IEEE 802.1X for authentication
  • 10/100/1000BaseT(X) Ports (RJ45 connector): 1
  • PoE Ports (10/100/1000/2500BaseT(X), RJ45 connector): 1

Ethernet Software Features

  • Management:
    • DHCP Server
    • DHCP Client
    • DNS
    • HTTP
    • IPv4/IPv6
    • LLDP
    • SMTP
    • SNMPv1/v2c/v3
    • Syslog
    • TCP/IP
    • UDP
    • VLAN
    • MXconfig
  • Routing:
    • Port forwarding
    • Static Route
    • NAT
  • Security:
    • HTTPS/SSL
    • RADIUS
    • SSH
    • Certificate Management
  • Time Management: SNTP Client

Firewall

  • Filter:
    • ICMP
    • MAC address
    • IP protocol
    • Port-based
    • Wi-Fi ACL
    • Client Isolation

Serial Interface

  • Console Port:
    • RS-232
    • 8-pin RJ45

USB Interface

  • Storage Port: USB Type A (for ABC-02 use only)

LED Interface

  • LED Indicators: PWR1, PWR2, PoE, SYS, 2.4G, 5G

Input/Output Interface

  • Digital Inputs:
    • 2
    • Max. input current: 8 mA
    • +13 to +30 V for state 1
    • +3 to -30 V for state 0
  • Alarm Contact Channels: Relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons: Reset button

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 45 x 130 x 100 mm (1.77 x 5.12 x 3.94 in)
  • Weight: 755 g (1.7 lb)
  • Installation:
    • DIN-rail mounting
    • Wall mounting (with optional kit)

Power Parameters

  • Input Current: 12-48 VDC, 2-0.5 A
  • Input Voltage:
    • 12 to 48 VDC
    • Redundant dual inputs
    • 48 VDC Power-over-Ethernet
  • Power Connector: 1 removable 8-contact terminal block(s)
  • Power Consumption: 24 W (max.)

Environmental Limits

  • Operating Temperature:
    • Standard Models: -25 to 60°C (-13 to 140°F)
    • Wide Temp. Models: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC:
    • EN 61000-6-2/-6-4
    • EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS:
    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    • IEC 61000-4-6 CS: 10 V/m
    • IEC 61000-4-8 PFMF: 30 A/m
  • Safety:
    • IEC 62368-1
    • UL 62368-1
  • Vibration: IEC 60068-2-6
  • Radio: EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, NCC, RCM, SRRC, KC

MTBF

  • Time: 2,407,106 hrs
  • Standards: Telcordia Standard SR-332

Warranty

  • Warranty Period: 5 years
SPHINX_AWK-3262A-UN_datasheet.pdf
