Icron USB 3-2-1 Raven 3204C Pro - 00-00477
4-Port USB 3 (5Gbps), 10GbE LAN or CAT 6a/7 USB-C Extender-System
Listepris:
8.567,50 kr.*
Forhandlerpris - Login
Leveringstid: Varer er bestilt, vil være tilgængelige igen inden længe
Producentens varenummer:
00-00477
Vores artikelnummer:
760095
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Icron USB 3-2-1 Raven 3204C Pro - 00-00477"

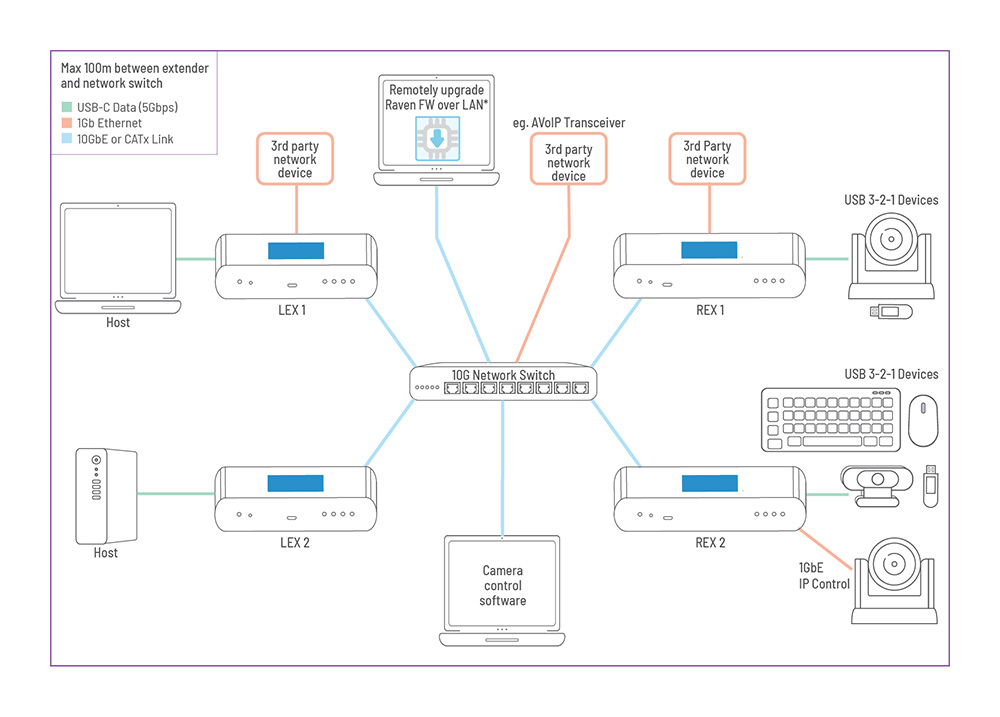

Icron's next gen extender, the Raven 3204C Pro, is the world's first USB 3-2-1 extender over Local Area Network optimized for camera and video capture devices with Isochronous (ISO) support. It extends USB 3 (5Gbps), USB 2.0 and 1.1 devices from a host computer across a 10GbE LAN or a point-to-point CAT 6a/7 connection. The Raven 3204C Pro delivers the same exceptional performance as the Raven 3104 Pro, in a smaller, lighter design, with USB-C ports available for the host and extended devices.
Extend ISO USB cameras, sound bars, hubs and other USB-C or USB-A devices past the standard USB 3 cable (1.8m/6ft) limitation to a PC or laptop across the conference room or to an IT closet with standard CATx cabling.
Anwendungen
PACKAGE CONTENTS: 1x LEX (Local Extender), 1x REX (Remote Extender), 1x USB-C Cable, 2x International Locking AC Adapters, 2x Country Specific Power Cords, 1x Quick Start Guide
Extend ISO USB cameras, sound bars, hubs and other USB-C or USB-A devices past the standard USB 3 cable (1.8m/6ft) limitation to a PC or laptop across the conference room or to an IT closet with standard CATx cabling.
Anwendungen
- Conference rooms
- Security and monitoring
- Video matrix systems
- Remote storage
PACKAGE CONTENTS: 1x LEX (Local Extender), 1x REX (Remote Extender), 1x USB-C Cable, 2x International Locking AC Adapters, 2x Country Specific Power Cords, 1x Quick Start Guide
| Port Number: | 4 Ports |
|---|
- Simultaneous support for all USB 3, 2, and 1.1 devices up to 5 Gbps (shared)
- If USB 3 Isochronous support is required, Raven 3204C Pro is recommended
- Optional power delivery of the LEx (Local Extender) via the USB-C connection to the host: If the host computer can deliver 15W to the LEx, the LEx power supply is not required.
- The REx (Remote Extender) includes 2 USB-C ports and 2 USB-A ports
- Delivers 3A to each USB-C port and 1.2A to each USB-A port
- 1Gb Ethernet pass-through eliminates additional cable runs for simplified installations
- Single cable, CAT 6a/7 up to 100m
- Point-to-point connection
- FCC and CE (Class B) compliance
- ExtremeUSB-C™ functionality:
- Transparent USB extension for USB 3, 2, and 1
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows®, macOS™, Linux®, and Chrome OS™
Technical Details
LEx (LOCAL EXTENDER)
1x USB-C socket
1GbE Pass-through: 1x RJ45 Ethernet 100/1000 Port
Link Port: 1x RJ45 Ethernet Link Port
Power Supply: 24V 1A DC locking socket
Dimensions (W x D x H*): 165mm x 100mm x 35mm / 6.50" x 4.00" x 1.38"
Weight: 572g / 1.26lbs.
Housing Material: Silver anodized aluminum
REx (REMOTE EXTENDER)
2x USB-C sockets; 2x USB-A sockets
1GbE Pass-through: 1x RJ45 Ethernet 100/1000 Port
Link Port: 1x RJ45 Ethernet Link Port
Power Supply: 24V 2.71A DC locking socket
Dimensions (W x D x H*): 197mm x 100mm x 35mm / 7.75" x 4.00" x 1.38"
Weight: 697g / 1.54lbs.
Housing Material: Silver anodized aluminum
RANGE
Up to 100m (330 ft) over CAT 6a/7
USB SUPPORT
USB Bandwidth: Up to 5 Gbps
Device Compatibility: All device types and classes (Control, Interrupt, Bulk, and Isochronous**)
Host Compatibility: OHCI, UHCI, EHCI, xHCI
Available Current at REX: Supplies 3A (15W) per USB-C port and 1.2A (6W) per USB-A port
Maximum Devices: Supports up to 30
ENVIRONMENTAL CONDITIONS
Temperature: 0°C to 40°C (32°F to 104°F) Operating / -20°C to 70°C (-4°F to 158°F) Storage
Relative Humidity: 20% to 80% Operating / 10% to 90% Storage (non-condensing)
COMPLIANCE
Certifications: FCC, CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1
* Note: Add 2mm to height for non-slip rubber feet at the bottom of the housing
LEx (LOCAL EXTENDER)
1x USB-C socket
1GbE Pass-through: 1x RJ45 Ethernet 100/1000 Port
Link Port: 1x RJ45 Ethernet Link Port
Power Supply: 24V 1A DC locking socket
Dimensions (W x D x H*): 165mm x 100mm x 35mm / 6.50" x 4.00" x 1.38"
Weight: 572g / 1.26lbs.
Housing Material: Silver anodized aluminum
REx (REMOTE EXTENDER)
2x USB-C sockets; 2x USB-A sockets
1GbE Pass-through: 1x RJ45 Ethernet 100/1000 Port
Link Port: 1x RJ45 Ethernet Link Port
Power Supply: 24V 2.71A DC locking socket
Dimensions (W x D x H*): 197mm x 100mm x 35mm / 7.75" x 4.00" x 1.38"
Weight: 697g / 1.54lbs.
Housing Material: Silver anodized aluminum
RANGE
Up to 100m (330 ft) over CAT 6a/7
USB SUPPORT
USB Bandwidth: Up to 5 Gbps
Device Compatibility: All device types and classes (Control, Interrupt, Bulk, and Isochronous**)
Host Compatibility: OHCI, UHCI, EHCI, xHCI
Available Current at REX: Supplies 3A (15W) per USB-C port and 1.2A (6W) per USB-A port
Maximum Devices: Supports up to 30
ENVIRONMENTAL CONDITIONS
Temperature: 0°C to 40°C (32°F to 104°F) Operating / -20°C to 70°C (-4°F to 158°F) Storage
Relative Humidity: 20% to 80% Operating / 10% to 90% Storage (non-condensing)
COMPLIANCE
Certifications: FCC, CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1
* Note: Add 2mm to height for non-slip rubber feet at the bottom of the housing
