Icron USB 3-2-1 Raven 3204C - 00-00472
4-Port USB 3 (5Gbps), 100m CAT 6a/7 USB-C Extender System
Listepris:
8.567,50 kr.*
Forhandlerpris - Login
11 stykker til rådighed, leveringstid: 2 - 3 arbejdsdage
Producentens varenummer:
00-00472
Vores artikelnummer:
760094
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "Icron USB 3-2-1 Raven 3204C - 00-00472"

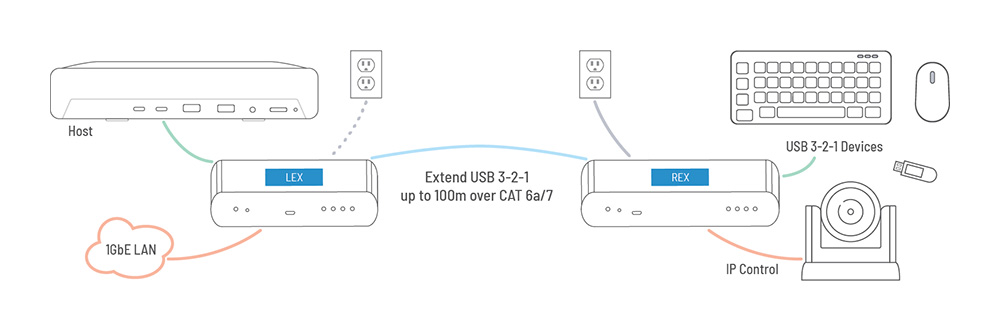

The Icron USB 3-2-1 Raven™ 3204C is the next generation of USB 3-2-1 extenders, allowing users to extend USB 3 (5 Gbps) device types as well as USB 2.0 and 1.1 devices over a point-to-point connection up to 100m over a single CAT 6a/7 cable. Applications include extending USB 3 conference cameras and audio devices for meeting rooms and conference spaces. The Raven extension series has been successfully tested with most popular USB 3.1 conference cameras in conjunction with major UC conference applications (Zoom, Teams, Skype).
This 4-port USB 3.0 extender supports data rates of up to 5 Gbps and is plug-and-play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux®, and Chrome OS™.
Furthermore, this USB 3-2-1 extender system based on ExtremeUSB-C™ is FCC/CE Class B certified and, due to backward compatibility, is ideal for use with all USB-C or USB-A peripheral devices in addition to USB 3.1 conference cameras, including: soundbars, touchscreens, hubs, DACs, and other USB 3, 2, and 1 devices.
Applications
PACKAGE INCLUDES: Local Extender (LEX), Remote Extender System (REX), USB-C cable, 2 x international AC adapters with locking, 2 x country-specific power cords, Quick Start Guide
This 4-port USB 3.0 extender supports data rates of up to 5 Gbps and is plug-and-play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux®, and Chrome OS™.
Furthermore, this USB 3-2-1 extender system based on ExtremeUSB-C™ is FCC/CE Class B certified and, due to backward compatibility, is ideal for use with all USB-C or USB-A peripheral devices in addition to USB 3.1 conference cameras, including: soundbars, touchscreens, hubs, DACs, and other USB 3, 2, and 1 devices.
Applications
- Remote storage
- Security & surveillance
- Video matrix systems
- Conference cameras
- Connectivity of medical devices
PACKAGE INCLUDES: Local Extender (LEX), Remote Extender System (REX), USB-C cable, 2 x international AC adapters with locking, 2 x country-specific power cords, Quick Start Guide
| Port Number: | 4 Ports |
|---|
- Simultaneously supports all USB 3, 2, and 1.1 devices up to 5 Gbps (shared)
- If USB 3 Isochronous support is required, Raven 3204C Pro is recommended
- Optional power delivery of the LEx (Local Extender) via USB-C connection to the host: If the host computer can deliver 15W to the LEx, the LEx power supply is not required.
- The REx (Remote Extender) includes 2 USB-C ports and 2 USB-A ports
- Delivers 3A to each USB-C port and 1.2A to each USB-A port
- 1Gb Ethernet pass-through eliminates additional cable runs for simplified installations
- Single cable, CAT 6a/7 up to 100m
- Point-to-point connection
- FCC and CE (Class B) compliance
- ExtremeUSB-C™ functionality:
- Transparent USB extension for USB 3, 2, and 1
- True plug-and-play; no software drivers required
- Works with all major operating systems: Windows®, macOS™, Linux®, and Chrome OS™
Technical Details
LEx (LOCAL EXTENDER)
1x USB-C socket
1GbE Pass-through: 1x RJ45 Ethernet 100/1000 Port
Link Port: 1x RJ45 Ethernet Link Port
Power Supply: 24V 1A DC locking socket
Dimensions (W x D x H*): 165mm x 100mm x 35mm / 6.50" x 4.00" x 1.38"
Weight: 572g / 1.26lbs.
Housing Material: Silver anodized aluminum
REx (REMOTE EXTENDER)
2x USB-C sockets; 2x USB-A sockets
1GbE Pass-through: 1x RJ45 Ethernet 100/1000 Port
Link Port: 1x RJ45 Ethernet Link Port
Power Supply: 24V 2.71A DC locking socket
Dimensions (W x D x H*): 197mm x 100mm x 35mm / 7.75" x 4.00" x 1.38"
Weight: 697g / 1.54lbs.
Housing Material: 697g / 1.54lbs.
RANGE
Up to 100m (330 ft) over CAT 6a/7
USB SUPPORT
USB Bandwidth: Up to 5 Gbps
Device Compatibility: All device types and classes (Control, Interrupt, Bulk, and Isochronous**)
Host Compatibility: OHCI, UHCI, EHCI, xHCI
Available Current at REX: Supplies 3A (15W) per USB-C port and 1.2A (6W) per USB-A port
Maximum Devices: Supports up to 30
ENVIRONMENTAL CONDITIONS
Temperature: -20°C to 70°C (-4°F to 158°F) Storage
Relative Humidity: 10% to 90% Storage (non-condensing)
COMPLIANCE
Certifications: FCC (Class B), CE (Class B), RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1
* Note: Add 2mm to height for non-slip rubber feet at the bottom of the housing
LEx (LOCAL EXTENDER)
1x USB-C socket
1GbE Pass-through: 1x RJ45 Ethernet 100/1000 Port
Link Port: 1x RJ45 Ethernet Link Port
Power Supply: 24V 1A DC locking socket
Dimensions (W x D x H*): 165mm x 100mm x 35mm / 6.50" x 4.00" x 1.38"
Weight: 572g / 1.26lbs.
Housing Material: Silver anodized aluminum
REx (REMOTE EXTENDER)
2x USB-C sockets; 2x USB-A sockets
1GbE Pass-through: 1x RJ45 Ethernet 100/1000 Port
Link Port: 1x RJ45 Ethernet Link Port
Power Supply: 24V 2.71A DC locking socket
Dimensions (W x D x H*): 197mm x 100mm x 35mm / 7.75" x 4.00" x 1.38"
Weight: 697g / 1.54lbs.
Housing Material: 697g / 1.54lbs.
RANGE
Up to 100m (330 ft) over CAT 6a/7
USB SUPPORT
USB Bandwidth: Up to 5 Gbps
Device Compatibility: All device types and classes (Control, Interrupt, Bulk, and Isochronous**)
Host Compatibility: OHCI, UHCI, EHCI, xHCI
Available Current at REX: Supplies 3A (15W) per USB-C port and 1.2A (6W) per USB-A port
Maximum Devices: Supports up to 30
ENVIRONMENTAL CONDITIONS
Temperature: -20°C to 70°C (-4°F to 158°F) Storage
Relative Humidity: 10% to 90% Storage (non-condensing)
COMPLIANCE
Certifications: FCC (Class B), CE (Class B), RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1
* Note: Add 2mm to height for non-slip rubber feet at the bottom of the housing
