Product information "HW group - WLD-Echo Set"

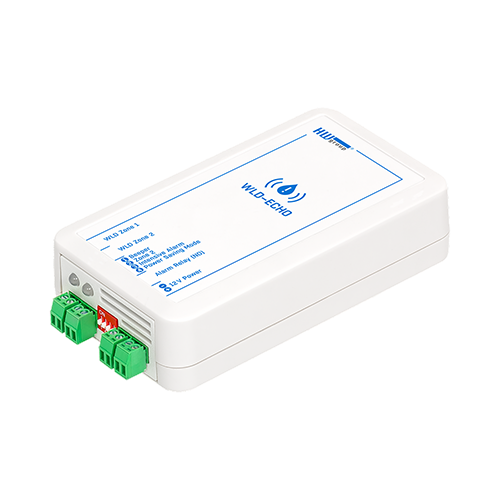

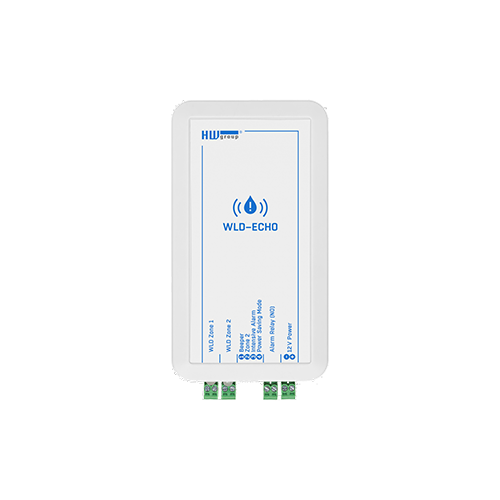

WLD-ECHO is a compact water leak detector supporting two external sensing cable zones. It detects even a few drops of conductive liquid anywhere along the sensing cable (up to 185 m) and provides early warning via a built-in audible alarm and relay output.
Powered by either 2× AA batteries or an external power supply, WLD-ECHO offers flexible installation in data centers, server rooms, and other technical facilities.
Fast detection requires no standing water level, ensuring reliable long-term monitoring. The device also signals sensing cable disconnection or damage. Zone 2 can be disabled when not in use.
With its dry-contact relay output, WLD-ECHO can be easily integrated into security or monitoring systems.
WLD liquid sensing (rope) cables provide continuous water leakage detection along their entire length. Water sensing cables cover larger areas and react much faster, even to just a few drops of water. However, water sensing cables require more careful installation.

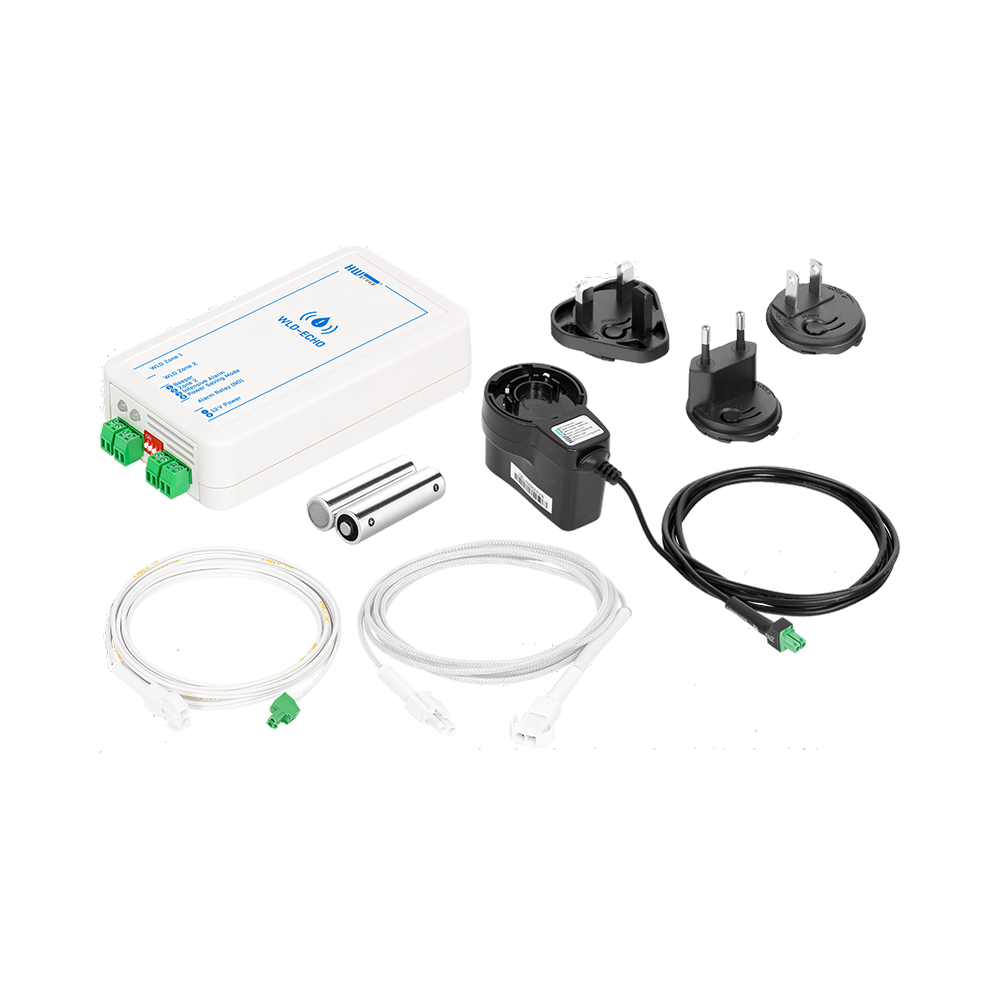

PACKAGE CONTENTS:
- 1× WLD-ECHO
- 1× WLD-Sensing cable B 2 m
- 1× WLD-Connecting cable AB 2 m
- 12 V wall plug adapter (2-pin, INT)
- 1x 2× AA batteries (primary cells)
| Power Supply: | 12V DC |
|---|---|
| Temperature Range: | Extended Temperature Range |
Features

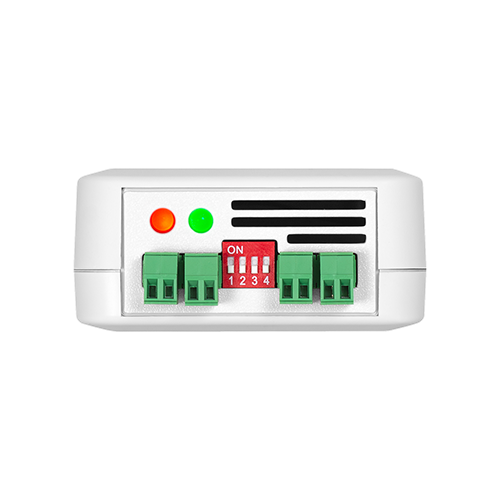

- LED indicators for OK / Flood / Cable disconnected
- Audible alarm
- 2× WLD zone input for sensing cables
- Digital Output relay
- External power supply
- Battery operation
Specifications
Interfaces
- WLD: 2 zones for external WLD sensing cables A/B
- DO (Digital outputs): 1× latching relay (25 V / 0.5 A)
Features
- Alarms: Audible, visual LED indication
Technical Data
- Power supply: 5–30 V DC (12 V DC nominal), typ. 20 mA, 2× AA batteries
- Operating temperature: -10 °C to 60 °C (14 °F to 140 °F)
- Storage temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Dimensions: 76 × 35 × 144 mm (W × H × D)
- Warranty: 24 months
