HW group - Sensor THPVoc 1W-UNI - 600747
Combined sensor of 4 sizes in 4x4 cm indoor box. RJ11 interface (1-wire UNI bus)
Producentens varenummer:
600747
Vores artikelnummer:
930166
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW group - Sensor THPVoc 1W-UNI - 600747"
The THPVoc 1W-UNI sensor measures temperature (-30 to + 70 °C) and humidity (0-100 %RH - relative humidity) as well as air pressure (30 000 to 110 000 Pa) and air quality concentration (0 to 60 000 ppb) of volatile organic compounds - TVOC.
The volatile organic compound sensor detects the TVOC concentration in the air (in ppb - parts per billion).

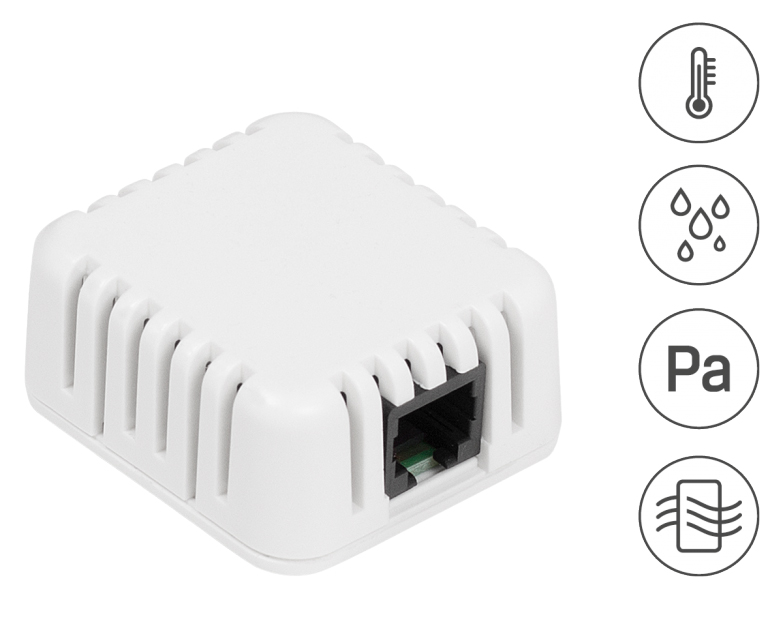

The temperature, humidity, air pressure and TVOC sensor is housed in a small, elegant plastic case and can be mounted on a wall or ceiling or placed on a desk. It is small and lightweight, so it can be fixed in place with a piece of double-sided tape. A detachable cable with RJ-11 sockets is used for connection. The connection cable is 3 m long and is included in the packaging.
Applications and use:
Thanks to its flexibility, this sensor is ready for integration into air conditioning systems, smart building management systems, schools and homes. The air pressure sensor is useful for weather forecasting or for detecting pressure losses in positive or negative pressure rooms.
The volatile organic compound sensor detects the TVOC concentration in the air (in ppb - parts per billion).
The temperature, humidity, air pressure and TVOC sensor is housed in a small, elegant plastic case and can be mounted on a wall or ceiling or placed on a desk. It is small and lightweight, so it can be fixed in place with a piece of double-sided tape. A detachable cable with RJ-11 sockets is used for connection. The connection cable is 3 m long and is included in the packaging.
Applications and use:
Thanks to its flexibility, this sensor is ready for integration into air conditioning systems, smart building management systems, schools and homes. The air pressure sensor is useful for weather forecasting or for detecting pressure losses in positive or negative pressure rooms.
| Monitoring: | Air Flow & Air Pressure, Humidity, Temperature |
|---|
Features
- Communication interface: 1-wire bus, RJ-11 socket
- Maximum length from active 1-wire port: 30 m
- Measuring range: -30 to +70 °C, resolution - 0.1 °C
- Humidity measurement in the range: - 0-100 %RH (relative humidity)
- Atmospheric pressure measurement in the range: - 30 000 - 110 000 Pa
- Air quality measurement in the range: 0 - 60 000 ppb
- 5V supply via the 1-wire connection
Technical details
Temperature
Relative Humidity
Atmospheric pressure
Air quality
- Maximum length of the 1-wire bus: 30 m
- Maximum number of sensors per 1-Wire UNI port: 1 (use 1-Wire Hub Power if more are needed).
- Dimensions of sensors: 40 × 40 × 20 mm
- Protection class: IP30
- Communication interface: 1-wire bus, RJ11 socket, Combined sensor of 4 sizes - reads as 4 independent sensors on the bus, 5V supply via the 1-wire connection
Temperature
- Range: -30 to +70 °C
- Accuracy: 0,8 °C
- Resolution: 0.1 °C
Relative Humidity
- Range: 0 - 100 % RH
- Accuracy: 5 % RH / 25 °C
- Resolution: 0.1 % RH
Atmospheric pressure
- Range: 30 - 110 kPa
- Accuracy: 12 Pa (95 - 105 kPa / 25 °C)
- Resolution: 10 Pa
- Absolute accuracy: 100 Pa (30 - 110 kPa / -20 °C to 65 °C)
- Temperature coefficient: 1.5 Pa/K (25 to 40 °C / 90 kPa)
Air quality
- Range: 0 - 60 000 ppb
- Accuracy: 15 %
- Resolution: 1 ppb (0 ppb - 2008 ppb)
