HW group - Sensor CO2 1W-UNI - 600746

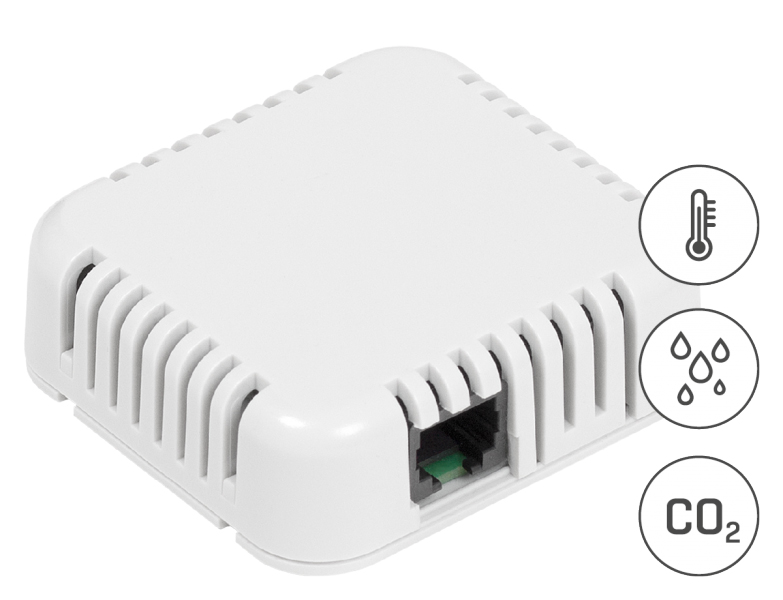

Combined temperature, relative humidity and CO2 sensor in one box
Producentens varenummer:
600746
Vores artikelnummer:
930165
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW group - Sensor CO2 1W-UNI - 600746"
Sensor CO2 1W-UNI is a combined sensor for temperature (-0 to +50 °C), relative humidity (RH 0-95%) and CO2 (300 - 40000 ppm) in a box for indoor environments. Can be connected to all HW group monitoring devices via an RJ11 interface (1-Wire UNI bus).
Housed in a small elegant plastic box, this sensor can be mounted on a wall or ceiling or placed on a desk. It is small and lightweight, so it can be fixed in place with a piece of double-sided tape. A detachable cable with RJ-11 sockets is used for connection. Connection cable 3m included in the package.
Applications and use:
Thanks to its ability to monitor CO2, temperature and RH (Relative Humidity), this sensor can be used in many areas. In addition to monitoring air quality in homes, commercial buildings and school buildings, it can also help you with various measurement and control projects.
Housed in a small elegant plastic box, this sensor can be mounted on a wall or ceiling or placed on a desk. It is small and lightweight, so it can be fixed in place with a piece of double-sided tape. A detachable cable with RJ-11 sockets is used for connection. Connection cable 3m included in the package.
Applications and use:
Thanks to its ability to monitor CO2, temperature and RH (Relative Humidity), this sensor can be used in many areas. In addition to monitoring air quality in homes, commercial buildings and school buildings, it can also help you with various measurement and control projects.
| Monitoring: | Gas |
|---|
Features
- Communication interface: 1-wire UNI (RJ11)
- Maximum length from active 1-wire port: 30 m
- Temperature measurement: In the range -0 to +50 °C, accuracy: 0.8 °C
- Humidity measurement: In the range - 0-95 %RH (relative humidity)
- CO2 measurement: In the range 300 to 40000 ppm
- 5V supply via the 1-wire connection
Technical details
Temperature
Relative humidity
CO2
- Communication interface: 1-wire UNI (RJ11)
- Sensor values (quantities): 3
- Maximum distance from active 1-wire port: 30 m
- Power supply: 5V from RJ11 connector
- Power limit: max. 1 sensor per active RJ11 port
- Sensor dimensions: 60 × 60 × 20 mm
- Protection class: IP30
Temperature
- Range: 0 - 50 °C
- Accuracy: 0,8 °C
- Resolution: 0,1 °C
Relative humidity
- Range: 0 - 95 % RH
- Accuracy: 5 % RH (20 - 80 % RH / 25 °C)
- Resolution: 0.3 % RH
CO2
- Range: 300 - 40 000 ppm
- Accuracy: 50 ppm +3 %
- Resolution: 1 ppm (0 - 2000 ppm)
- Temperature stability: 2.5 ppm / °C
