HW Group - WLD2 PoE Set - 600787
Water Lekage detector 4x Lekage sensor inputs, PoE, Email, Ethenet and WiFi connectivity, HTTPS, SNMP, external antenna (incl. 1x 2m detection cable and 1x 2m connection cable, power supply)
Producentens varenummer:
600787
Vores artikelnummer:
930164
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - WLD2 PoE Set - 600787"
WLD2 is a WiFi / Ethernet water leak detector with support for WWW, SNMP, emails and PoE . Up to 4 very sensitive sensor cables are used. Alarms are triggered by even the smallest amounts of liquid, such as condensation from A / C pipes or water leaks in general. You receive alarms before costly damage occurs. In addition to flooding, the device also detects unconnected or damaged sensor cables to increase reliability.
WiFi connectivity allows the WLD2 water leak detector to be installed in remote locations. In the event of flooding, an alert can be sent by email, SNMP trap or via the SensDesk cloud. With an external HW Group SMS gateway, it can send a text message or dial a phone number. In critical applications, it can of course also communicate via wired Ethernet and operate with PoE.
WLD2 supports zone creation. The flood sensor can call a different phone number for each zone.
WLD2 can be connected to the SensDesk portal using the HWg push protocol and to standard monitoring systems thanks to SNMP and SNMP trap support. Flooding can also be indicated by switching a remote output (e.g. a relay) via the network (Box-2-Box mode with a Poseidon2 or Damocles2 unit) independently for each sensor cable.
Compared to HWg-WLD, up to 4 independent detection cables can be connected to the WLD2 to locate the leak more accurately.

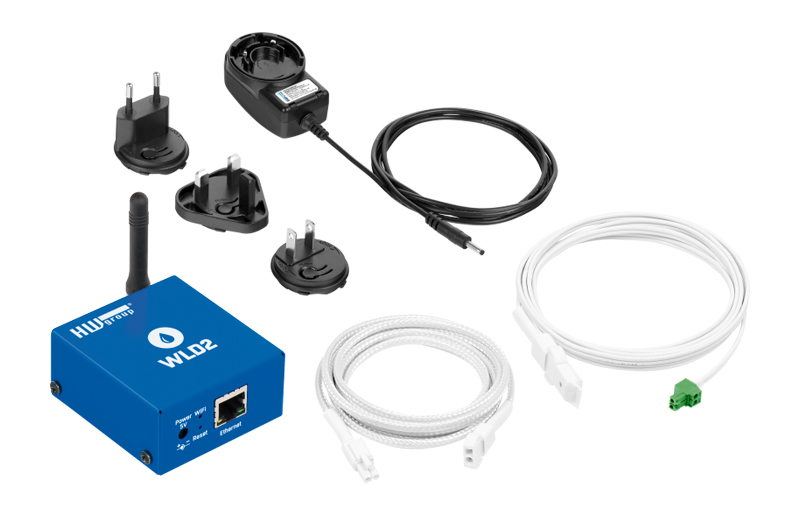

Scope of delivery: HW Group WLD2 PoE Set - 600787
WiFi connectivity allows the WLD2 water leak detector to be installed in remote locations. In the event of flooding, an alert can be sent by email, SNMP trap or via the SensDesk cloud. With an external HW Group SMS gateway, it can send a text message or dial a phone number. In critical applications, it can of course also communicate via wired Ethernet and operate with PoE.
WLD2 supports zone creation. The flood sensor can call a different phone number for each zone.
WLD2 can be connected to the SensDesk portal using the HWg push protocol and to standard monitoring systems thanks to SNMP and SNMP trap support. Flooding can also be indicated by switching a remote output (e.g. a relay) via the network (Box-2-Box mode with a Poseidon2 or Damocles2 unit) independently for each sensor cable.
Compared to HWg-WLD, up to 4 independent detection cables can be connected to the WLD2 to locate the leak more accurately.
Scope of delivery: HW Group WLD2 PoE Set - 600787
| Alerts: | |
|---|---|
| Device: | Monitoring Device |
| Device Classes: | 4 Sensors |
| Monitoring: | Water Leakage |
Features
- Easy installation, support for automatic network configuration via DHCP.
- Intuitive WWW interface for quick and easy installation.
- Possibility of simultaneous communication via WLAN (external antenna for extended range, support for 2.4 GHz, 2.11 b / g / n) and Ethernet.
- Support for up to 4 sensor cables (max. 85 m each) allows the detection functions to be scaled and the cause of the leak to be identified more easily.
- The sensor cable can be attached with clips or tape.
- WLD2 signals the following states: OK / Flooded / Detect cable fault.
- Flood alarms can be sent as a standard email or as a text message (SMS) via an SMS gateway available from HW Group.
- Detected leaks or breaks in the WLD sensor cable can be signalled by activating a relay output on a Poseidon2 or Damocles2 unit via Ethernet.
- WLD2 can be easily mounted on a wall or in a 19" cabinet.
- Power supply via PoE or via an external adapter.
Technical details
Applications and use
- E-mail destinations: 4
- SMS destinations: 4
- Ethernet: 10 / 100Mbit
- W-lan: IEEE 802.11abg
- Power supply: 5V
- Consumption: 250mA
- PoE / 48V: Yes
- Operating environment: -30 ° C to 80 ° C / 0% rH - 100% rH
- Storage environment: -50 ° C to 80 ° C / 0% rH - 100% rH
- Dimensions: 67 x 31 x 69 (WxHxD) / 151 g
Applications and use
- Water detection under raised floors.
- Leaky pipe detection (cable wound along the pipe).
- Flood protection through skylights - sensor cable along walls.
- Detection of water leaks in drip pans.
- Water leak detection under air conditioning outlets.
