HW Group - WLD Relay 1W-UNI - 600513

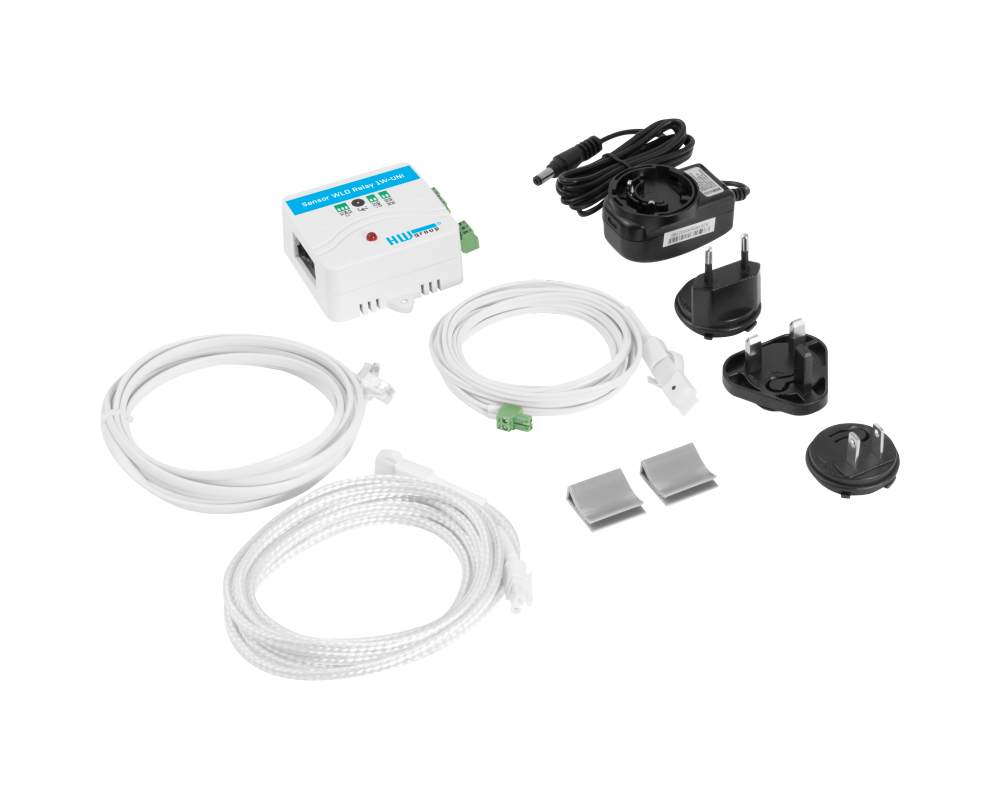

Sensor for detecting water leaks with relay (NO/NC) or 1-wire UNI output. Power input via socket and terminal strip. Simple device, requires external WLD sensor cable A for water leak detection and mains adapter.
Producentens varenummer:
600513
Vores artikelnummer:
930081
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - WLD Relay 1W-UNI - 600513"

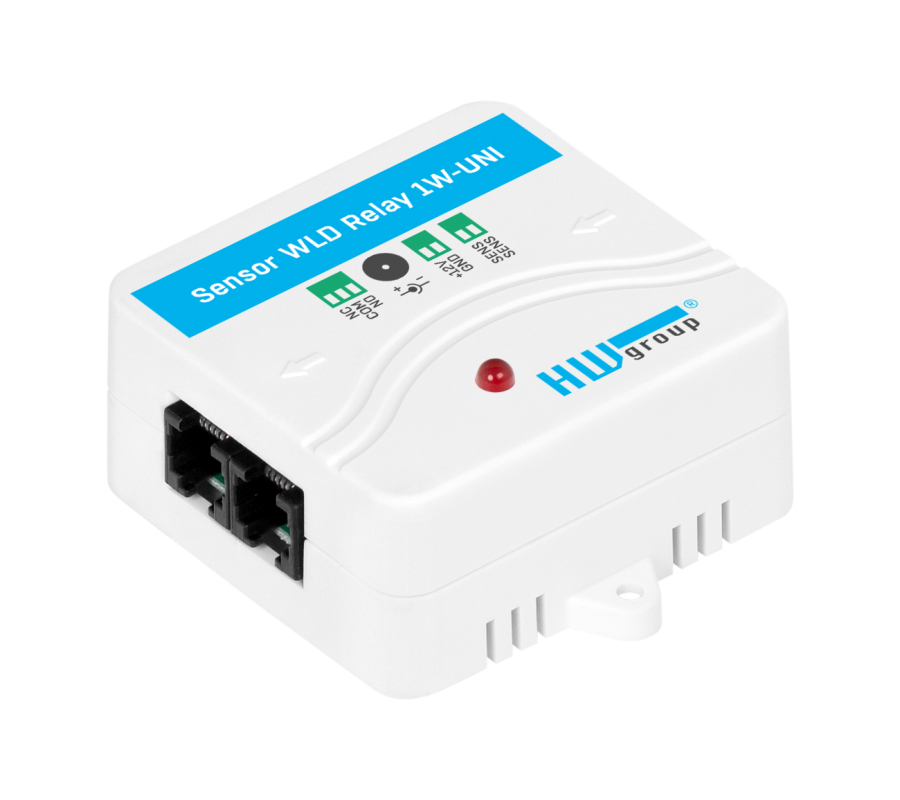

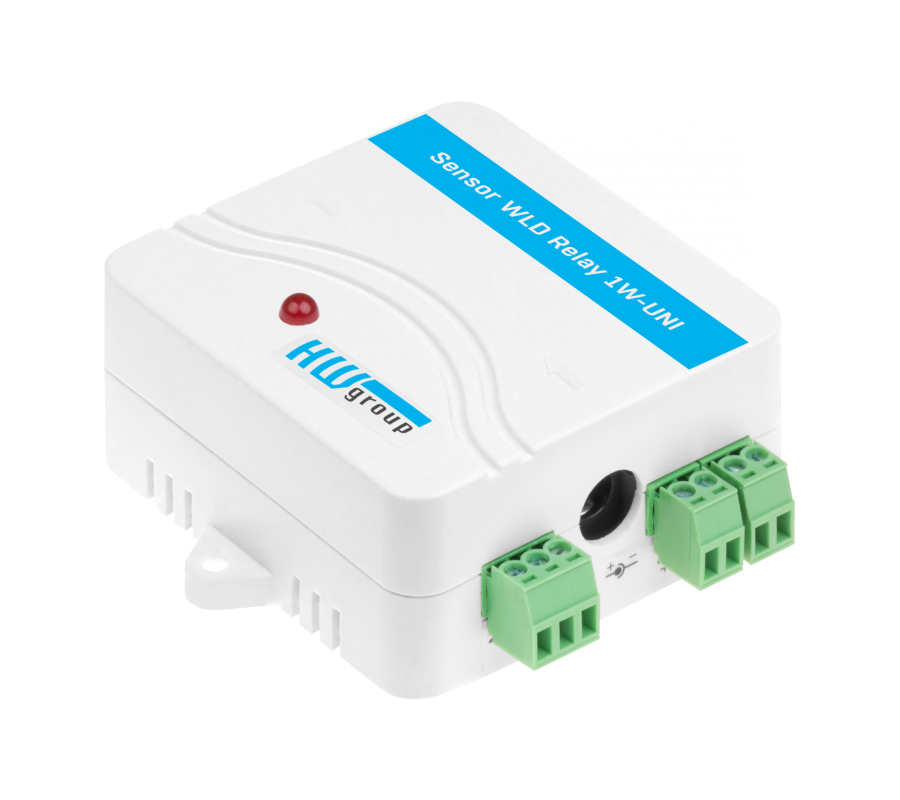

A universal water flood sensor detects the occurrence of flood water through a soaked cable. Soaking or interrupting the cable causes the relay contact (NO/NC) to switch. The sensor cable detects a small amount of water or other liquid. The "WLD sensor cable A" is supplied in lengths from 0.4 to 85 m. It can be extended with an extension cable. It can be connected with an extension cable up to 100 m long.
The WLD Relay sensor can be used separately with 12V power supply and relay output or connected as a sensor with Poseidon 2 via 1Wire UNI bus.
The WLD Relay sensor can be used separately with 12V power supply and relay output or connected as a sensor with Poseidon 2 via 1Wire UNI bus.
| Monitoring: | Water Leakage |
|---|
Features
- Universal water detector for use with the Poseidon, Damocles, Ares or HWg-STE plus units.
- Sensor WLD relay 1W-UNI can be connected as a detector via its digital output or as a sensor via 1Wire UNI bus
- Connected detection cable can be extended up to 85 meters detection section
- Soaked detection cables can be dried and reused
- Up to 85m sensor cableUp to 100m cable length
- Easy to install
- Signalling via relay output
- Can be connected to the Poseidon1-Wire UNI bus
- Separate WLD sensor cable detection
- Clips for fixing the detection cable
Technical details
HWg-WLD relay
Applications and use
- The sensor cable can be extended with a two-core cable (100m, at least AWG24).
- The sensor cable can be divided into several segments to detect flooding only at endangered points.
- Status indication via the 1-wire UNI bus:
- 0 = OK
- 1 = Sensor cable flooded
- 2 = Sensor cable disconnected
- Status indication at the relay output:
- open = OK (or "unit de-energised")
- closed = sensor cable flooded or disconnected
HWg-WLD relay
- Input (sensor cable): 1
- Max. Max. length of sensor cable : 85m
- Max. extended cable length : 100mb
- Relay output (Max 30V/0.3A)
- Power supply: External 12V/0.1A
- 1-Wire UNI-Bus output
- Power: from a Poseidon device
Applications and use
- Water leak detector for security systems
- Water detection under raised floors
- Detection of leaking pipes (cable wound along the pipe)
- Flood protection through skylights (detection cable laid along the walls)
- Detection of water leaks in sumps
- Detection of water leaks under air conditioning outlets
