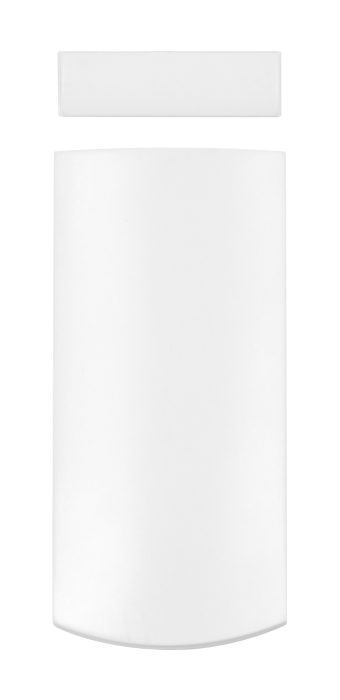

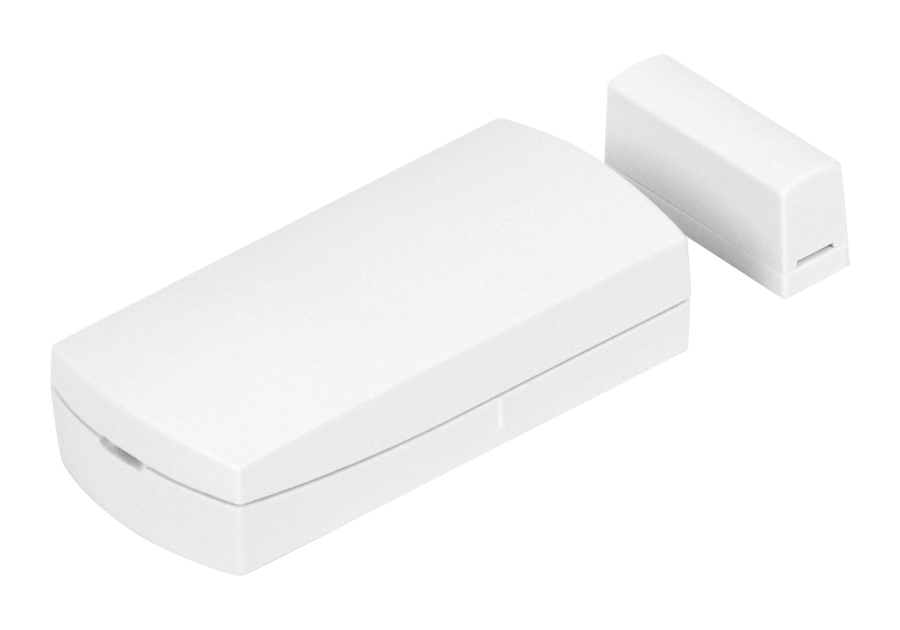

HW Group - Vibration detector SS14 - 600645
Vibration sensor
Producentens varenummer:
600645
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
Product information "HW Group - Vibration detector SS14 - 600645"
SS14 is a detection device for shocks and vibrations. Used to protect fittings, windows, boxes or passageways where detection is required. Intrusion tests due to vibrations or strong shocks. It is also equipped with a separate second reed contact which is normally closed.
Scope of delivery: HW Group Vibration detector SS14 - 600645
Scope of delivery: HW Group Vibration detector SS14 - 600645
| Monitoring: | Security |
|---|
Features
- Dimensions of 77x36x20 mm
- 13.8 Vcc power supply
- Standby current - 9mA
- Maximum current - 18mA
- RFI protection 30 V / m (20 MHz - 2000 MHz)
- Tamper contact 0.2 A - 24 Vcc
- Alarm contact Max 40 mA - 30 Vcc
- Temperature -20 ° C a + 50 ° C.
- ABS housing
Technical details
Applications and use
- Connections: Terminal block
- Protection: IP23
- Power supply: 12V
- Consumption: 18mA
- Operating environment: -20 ° C - 50 ° C / 0% rH - 100% rH
- Storage environment: -30 ° C - 60 ° C / 5% rH - 95% rH
- Dimensions: 37 x 78 x 21 (WxHxD) / 33 g
Applications and use
- Intrusion Detection
- Vibration detection
