HW Group - Temp-485-Pt100 Frost2 - 600633
Temperature sensor for very low temperatures (-190°C to +150°C) with an RS-485 converter in a wall-mountable box.
Producentens varenummer:
600633
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Temp-485-Pt100 Frost2 - 600633"

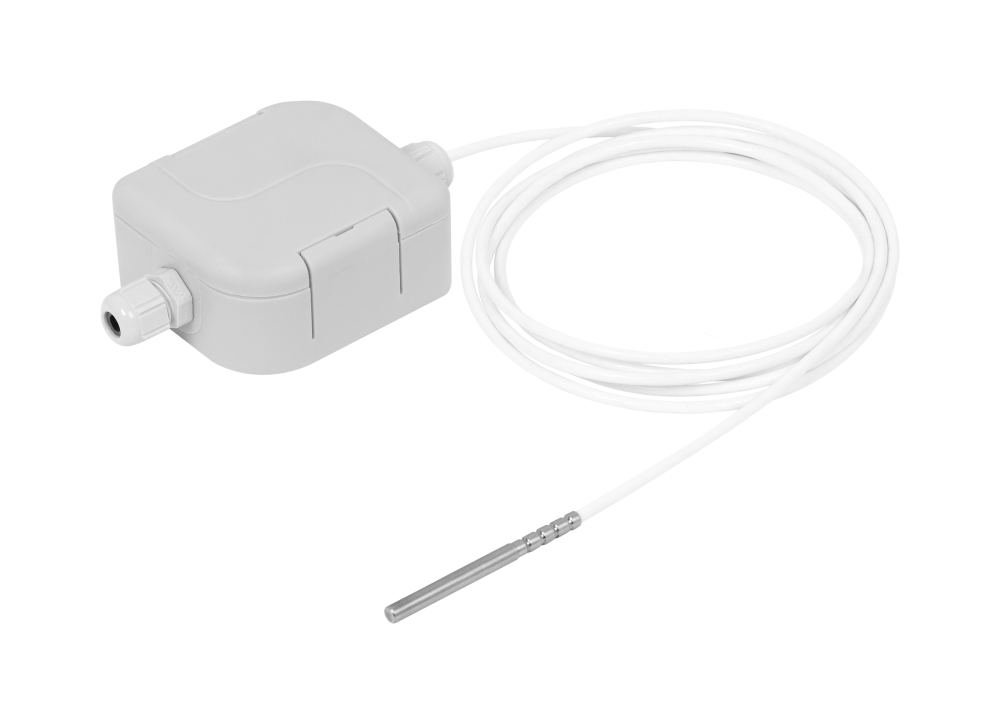

Frost2 is a temperature sensor for low temperatures.
Converter with RS-485 output can be mounted on the wall.
External Pt100 temperature probe that sits on a 2-metre PTFE cable.
The temperature range of the probe is -190°C to +150°C (-310 to 300°F).
The probe is designed for connection to Poseidon2 4002 for data transmission and power supply.
Converter with RS-485 output can be mounted on the wall.
External Pt100 temperature probe that sits on a 2-metre PTFE cable.
The temperature range of the probe is -190°C to +150°C (-310 to 300°F).
The probe is designed for connection to Poseidon2 4002 for data transmission and power supply.
| Monitoring: | Temperature |
|---|
Features
- Probe temperature range: -190 to +150°C (-310 to +300°F)
- Accuracy: ±(0.4 + 0.005|t|) [°C] (minimum immersion depth 80mm, in the range -100°C to +150°C)
- Transducer operating conditions: -30 to +70°C (-22 to +160°F), relative humidity 85% max.
- Environment: Indoor or outdoor use - IP65, wall mounting
- External sensor: External Pt100 sensor for minus temperatures (stainless steel housing, 2 m cable)
- Interface: RS-485, terminals
- Compatible with: Poseidon2 4002
- Power supply: From Poseidon (12V), or 10.35VDC
Technical details
The external temperature sensor (included in the scope of delivery) is located in a stainless steel housing on a 2 m PTFE cable.
RS-485-Bus
This version uses an identical box, with only one cable grommet.
The sensor is connected via a 2-wire cable (PT30) - included in delivery.
Applications and use:
The external temperature sensor (included in the scope of delivery) is located in a stainless steel housing on a 2 m PTFE cable.
- Measuring element on cable: Pt100/B, protection class IP67.
- Cable 2m, PTFE
- Rod length: 50 mm
- Probe connection: 4-wire
- Housing material: 17240 stainless steel
- Converter outer dimensions: 62 x 95 x 35 mm
- Protection class converter: IP65 (EN 60 529)
- Supply voltage: 10 to 35 VDC (reverse polarity protected)
- Consumption during measurement: typ. 2 mA
- Consumption during RS-485 transmission: typ. 60 mA
- Cable connection: CUU 2.5 mm2 Terminals
RS-485-Bus
- Communication: ASCII (9600Bd 8N1)
- Address configuration: software configuration or jumper
- Termination: can be activated with a DIP switch
This version uses an identical box, with only one cable grommet.
The sensor is connected via a 2-wire cable (PT30) - included in delivery.
Applications and use:
- Temperature monitoring in pharmaceutical or freezing plants.
- Accurate temperature monitoring in food processing
- Temperature monitoring in civil engineering and industrial furnaces
