HW Group - Temp-485-Pt100 Cable3 - 600632
Cable3 is a temperature sensor (-50 to +200°C ) with RS-485 output
Producentens varenummer:
600632
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Temp-485-Pt100 Cable3 - 600632"

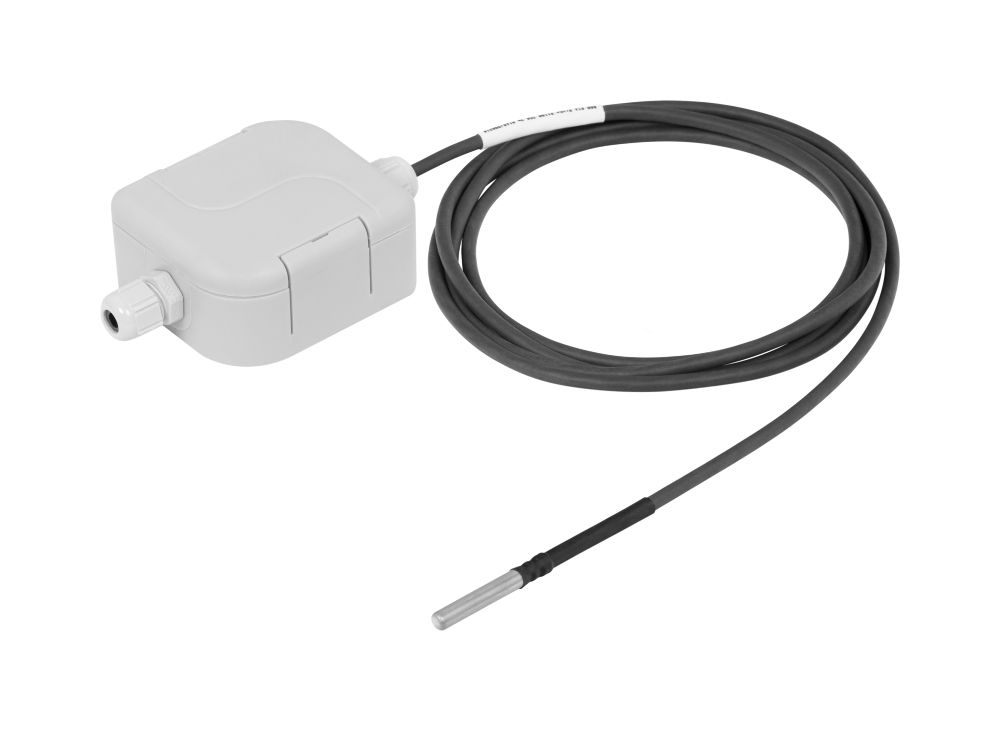

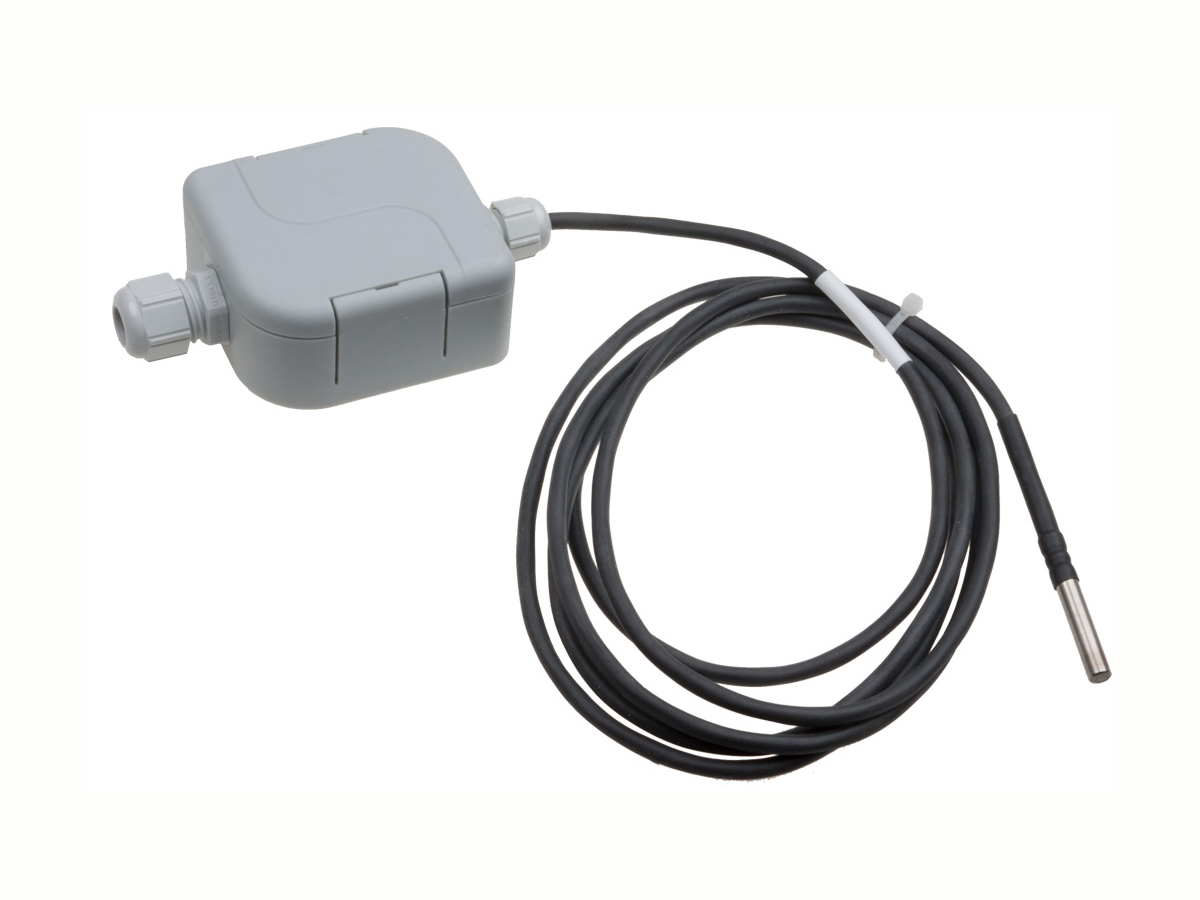

Cable3 is a temperature sensor with RS-485 output.
The converter can be mounted on the wall.
High-precision external Pt100/A temperature probe on a 2-metre silicone cable with IP67 protection.
The temperature range of the probe is -50 to +200°C (-58 to 390°F).
The probe can be used separately or connected to a Poseidon2 4002 unit
The converter can be mounted on the wall.
High-precision external Pt100/A temperature probe on a 2-metre silicone cable with IP67 protection.
The temperature range of the probe is -50 to +200°C (-58 to 390°F).
The probe can be used separately or connected to a Poseidon2 4002 unit
| Monitoring: | Temperature |
|---|
Features
- Environment: Indoor or outdoor use - IP65, wall mounting
- Supplied sensor: External Pt100 temperature sensor (stainless steel housing, 2 m cable)
- Temperature measuring range of the external sensor: -50°C to +200°C (-58°F to +390°F)
- Operating temperature: The converter works from -30 to +70°C (-22 to +160°F)
- Interface: RS-485, terminals
- Compatible with: Poseidon2 4002
- Power supply: From Poseidon (12V), or 10.35VDC
Technical details
The temperature sensor is separated from the transducer to allow a wider measuring range and easier installation in certain applications.
RS-485-Bus
This version uses an identical box, with only one cable grommet.
The sensor is connected via a 2-wire cable (PT30) - included in delivery.
Applications and use:
The temperature sensor is separated from the transducer to allow a wider measuring range and easier installation in certain applications.
- Measuring element on cable: Pt100/A, protection class IP67.
- Cable 2m, shielded silicone
- Rod length: 50 mm
- Probe connection: 4-wire
- Housing material: 17240 stainless steel
- Converter outer dimensions: 62 x 95 x 35 mm
- Protection class converter: IP65 (EN 60 529)
- Supply voltage: 10 to 35 VDC (reverse polarity protected)
- Consumption during measurement: typ. 2 mA
- Consumption during RS-485 transmission: typ. 60 mA
- Cable connection: CUU 2.5 mm2 Terminals
RS-485-Bus
- Communication: ASCII (9600Bd 8N1)
- Address configuration: software configuration or jumper
- Termination: can be activated with a DIP switch
This version uses an identical box, with only one cable grommet.
The sensor is connected via a 2-wire cable (PT30) - included in delivery.
Applications and use:
- Typical applications are measuring the temperature in places that can be flooded with water or an environment with moisture condensation.
