HW Group - Temp-485-Pt100 Box2 - 600631
Temperature sensor for wall mounting with RS-485 output
Producentens varenummer:
600631
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Temp-485-Pt100 Box2 - 600631"

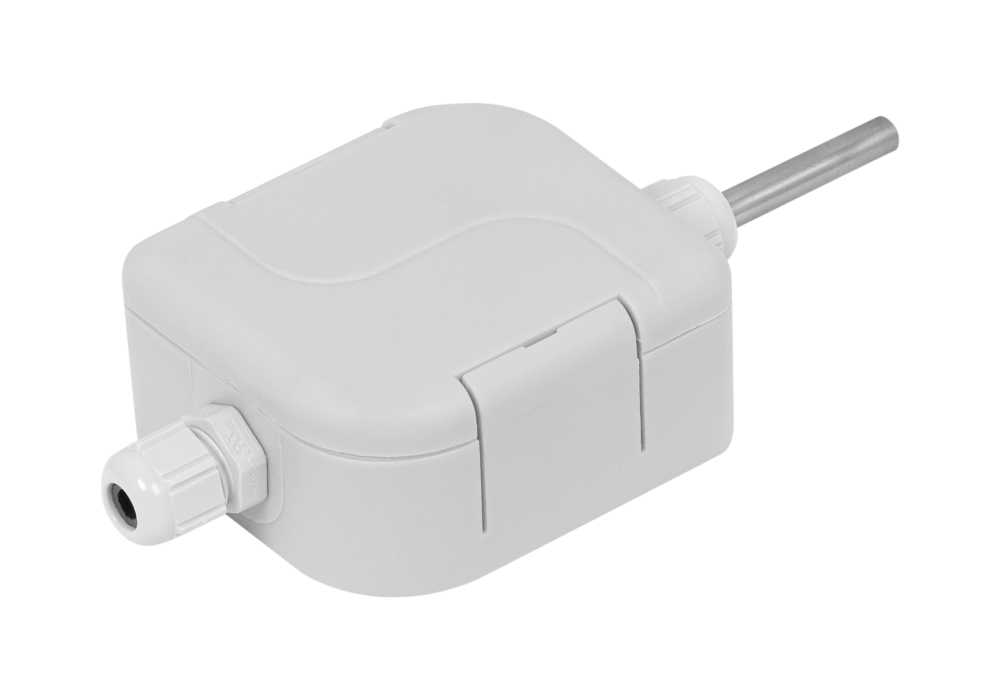

Robust industrial temperature sensor, -30°C to +70°C (-22°F to +160°F), IP65, wall mounting.
A Pt100 platinum temperature sensor is located in the tip of the protruding rod.
The sensor is designed for connection to Poseidon2 4002 for data transmission and power supply.
The sensor is designed for connection to Poseidon2 4002 for data transmission and power supply.
| Monitoring: | Temperature |
|---|
Features
- Environment: Indoor or outdoor use - IP65, wall mounting
- Input temperature range: -30 to +70°C (-22 to +160°F), Pt100 sensing element
- Interface: RS-485, terminals
- Compatible with: Poseidon2 4002
- Power supply: From Poseidon (12V), or 10.35VDC
Technical details
HW Group Temp-485-Pt100 Box2 details
Applications and use:
- Temperature range -55°C to +640°C
- Accuracy: ± 0.2°C (± 0.3°C if the "Head" and "DIN" versions are not calibrated with the specific sensor).
- Each sensor is tested and calibrated
- Automatic recognition of the sensor type (Pt100 or Pt1000)
- The Pt100 can be connected with 2 or 3 wires.
- Can be used in industrial environments
- RS-485 communication
- A simple communication protocol, software selectable RS-485 address You can connect two Pt100 sensors to one DIN unit (Temp-485-2xPt100)
- RS-485 communication is compatible with our SNMP thermometer - Poseidon
HW Group Temp-485-Pt100 Box2 details
- Box dimension: 58 x 165 x 35 mm
- Protection class (connection block box): IP65
- Protection class (terminal block): IP10
- Operating temperature: -25°C to +80°C
- Sensor type: Pt100/A
- Input signal : Range: -30°C to 200°C
- Sensor connection: 2-wire
- Accuracy : ±(0.25 + 0.002|t|)
- Communication line : RS485
- Output, communication: ASCII (9600Bd 8N1)
- Resulotion: 0.01°C
- Measuring frequency: 1/810 ms
- Addressing: SW, defined by commands via RS-485
- Line termination none, external termination
- Certification:
- Basic certification: EN 770
- EMC certification: EN 61326-1
- Safety certification: EN 61010-1
Applications and use:
- Wide temperature measurement systems
- Industrial measurements and regulations
- Measurement of temperature in storage, production and industrial rooms
- After connection to the Poseidon device - measurement in technological rooms and transmission of data via Ethernet
