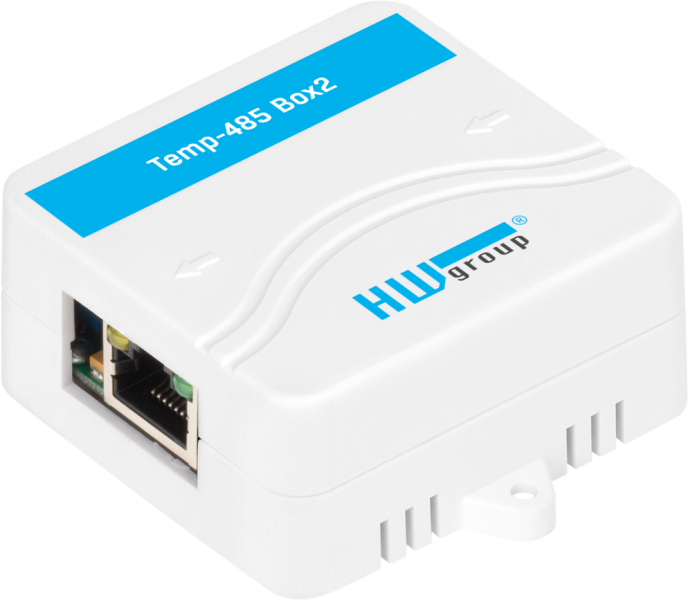

HW Group - Temp-485 Box2 - 600342
Indoor temperature sensor with RJ45 and terminal for RS-485 connection
Producentens varenummer:
600342
Vores artikelnummer:
930128
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktets levetid er udløbet!
Opfølgende produkt:
We will find a suitable replacement product for your requirements - please contact our sales department.
Produktinformation "HW Group - Temp-485 Box2 - 600342"
Temperature sensor for indoor use on the RS-485 bus (long distance communication) with a simple communication protocol.
The sensor can be used separately or connected to the Poseidon2 unit.
The measured data can be transmitted via SNMP, WEB or XML.
The sensor can be used separately or connected to the Poseidon2 unit.
The measured data can be transmitted via SNMP, WEB or XML.
- Compatible with Poseidon model 1250
- Compatible with Poseidon model 2251
| Monitoring: | Temperature |
|---|
Features
- Sensor temperature range -10°C to +70°C
- RS-485 connection with a range of up to 1000 m
- The Poseidon unit provides temperature data in Celsius, Kelvin or Fahrenheit scale
- Low power consumption, unstable power supply resistance
- The sensor can send temperature data in a period of up to 5000 s (approx.83 min.)
- Sensor address can be set via hw or sw
- Easy wall mounting
Technical details
Applications and use
- Measured temperature range: -10C up to +70C
- Temperature measurement accuracy: +/-0.5 °C
- Supply voltage: +8V to +30V DC, reverse polarity protection.
- RS-485 termination : Optional (DIP 1 and 2), always equipped with 10 kΩ resistors defining the idle state of the line.
- Line connection : Terminal / RJ45
- Protection class: IP 20
- Dimensions outer housing: 80 x 64 x 67 mm
- Wall mounting: mounting of the sensor on the wall with two screws
Applications and use
- Wide-ranging monitoring systems with a large number of measuring points
- Industrial dosing and control
- Temperature and humidity monitoring of food and medical material and pharmaceutical warehouses
- Environmental monitoring of residential areas
- Connection to Poseidon unit - temperature monitoring via Ethernet/Internet
- Connection to Poseidon unit - storage of up to 100 000 logs in internal flash memory.
