HW Group - Temp-1Wire 3m calibrated - 600578
Calibrated temperature sensor with certificate 3 meters (-10 to +80°C)
Producentens varenummer:
600578
Vores artikelnummer:
930114
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Temp-1Wire 3m calibrated - 600578"

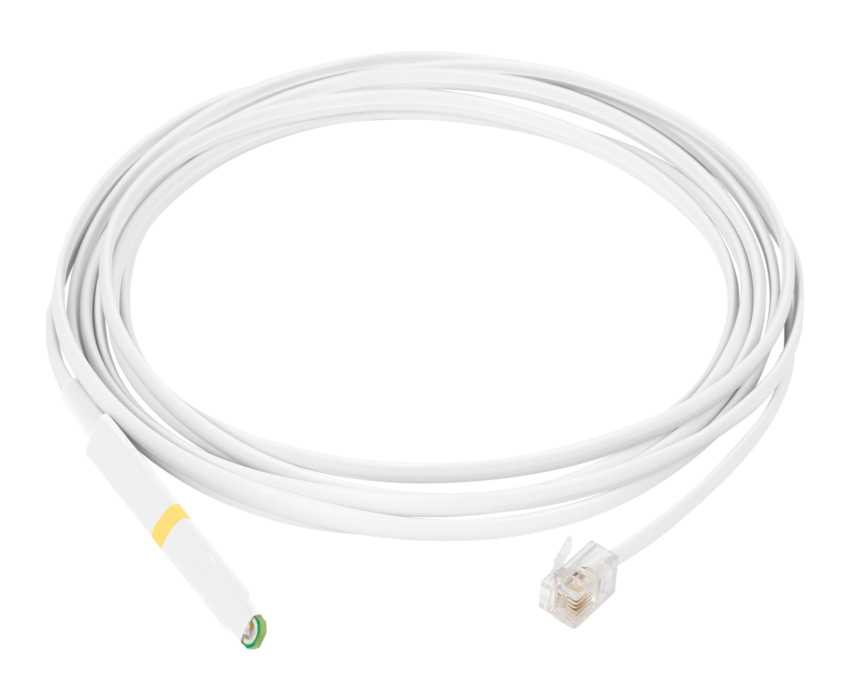

Temperature sensor (-10 ° C to + 80 ° C) with calibration certificate in 3 points (-5 ° C, 25 ° C and 78 ° C). Sensor on 3 meter cable with 1-wire connector RJ11, probe in white sheath with yellow marking.
Scope of delivery: HW Group Temp-1Wire 3m calibrated - 600578
Scope of delivery: HW Group Temp-1Wire 3m calibrated - 600578
| Monitoring: | Temperature |
|---|
Features
- Temp. measuring accuracy ± 0.3 ° C in the range from -10 ° C to + 80 ° C.
- Can be mounted
- 3m connection cable
- Simple RJ12 connection
Technical details
Applications and use
- Protection: IP23
- Connections: RJ12
- Cable length: 3 meters
- Power supply: 5V
- Consumption: 1mA
- Operating environment: -10 ° C - 80 ° C / 0% rH - 100% rH
- Storage environment: -30 ° C - 60 ° C / 5% rH - 95% rH
- Dimensions: 9 x 80 x 5 (WxHxD) / 58 g
Applications and use
- Food industry precise measurement
- Pharmaceutical industry with high precision
- Technological premises with value calibration
- The 1W-UNI USB calibrator contains the USB-RJ11 module and the HWg-UniCalibrator software
