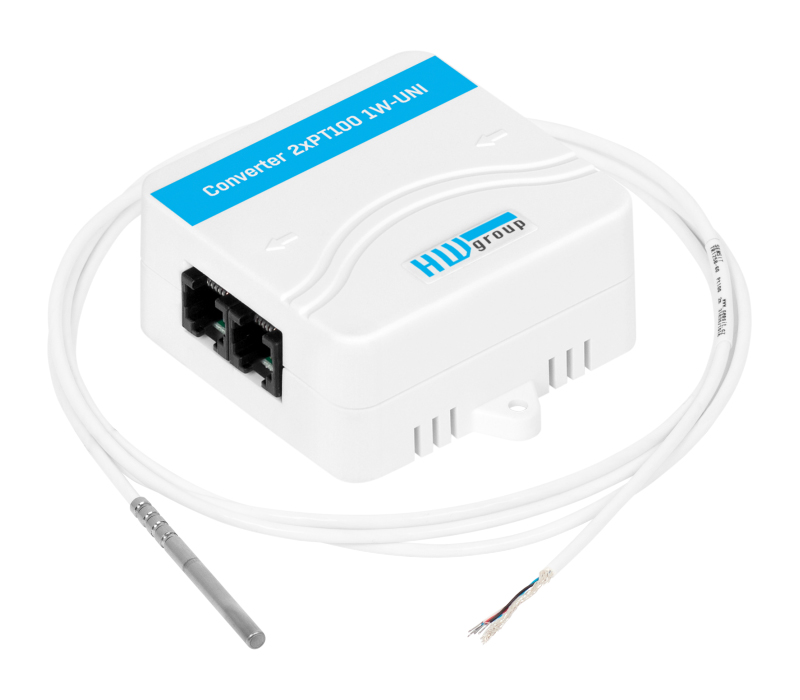

HW Group - Temp-1W-UNI Pt100 Frost - 600616
Temperature sensor with converter Pt-100 sensor (-190 to +150°C)
Producentens varenummer:
600616
Vores artikelnummer:
930124
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Temp-1W-UNI Pt100 Frost - 600616"
Low temperature sensor based on Pt-100 with 1-wire UNI output. Contains a Pt-100 temperature sensor (-190 to + 150 ° C, PTFE-covered cable 2 m, Pt100 / B) and a 1-wire UNI converter (converter 2xPt100 1W-UNI). The second Pt-100 or Pt-1000 temperature sensor can be connected.
Scope of delivery: HW Group Temp-1W-UNI Pt100 Frost - 600616
Scope of delivery: HW Group Temp-1W-UNI Pt100 Frost - 600616
| Monitoring: | Temperature |
|---|
Features
- Up to two external temperature sensors (Pt100 or Pt1000) can be connected
- Measured temperature range is -200 to +850 °C (-328 to 1560 °F)
- Supports 2/3/4-wire probe connection
- High temperature measurement accuracy, automatic measuring range
- Sensors can be connected in series (two RJ11 connectors)
- Transducer can be calibrated at 8 points
- Power supply via 1-wire Uni-Bus (RJ11)
Technical details
Applications and use
- Cable length: 2 meters
- Connectors: RJ12
- Power supply: 5V
- Consumption: 20mA
- Operating environment: -190 ° C - +150 ° C / 0% rH - 100% rH
- Storage environment: -30 ° C - 60 ° C / 5% rH - 95% rH
- Dimensions: 79 x 68 x 30 (WxHxD) / 197 g
Applications and use
- Up to two external temperature sensors (Pt100 or Pt1000) can be connected
- Measured temperature range is -200 to +850 °C (-328 to 1560 °F)
- Supports 2/3/4-wire probe connection
- High temperature measurement accuracy, automatic measuring range
- Sensors can be connected in series (two RJ11 connectors)
- Transducer can be calibrated at 8 points
- Power supply via 1-wire Uni-Bus (RJ11)
