HW Group - Temp-1W-UNI Pt100 Cable - 600606
Temperature sensor with converter Pt-100 sensor (-50 to +200°C)
Producentens varenummer:
600606
Vores artikelnummer:
930123
Har du spørgsmål? Vi vil med glæde rådgive dig! → Kontaktformular
Produktinformation "HW Group - Temp-1W-UNI Pt100 Cable - 600606"

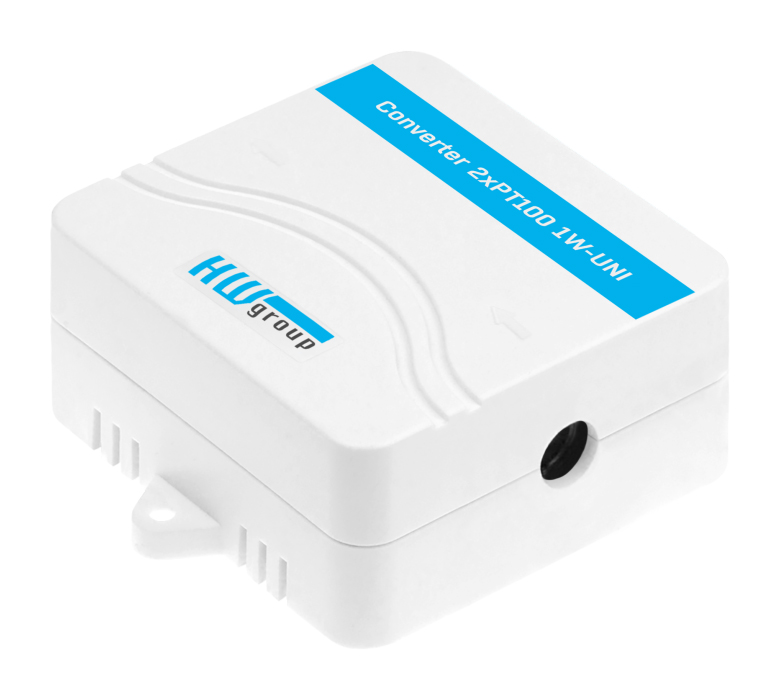

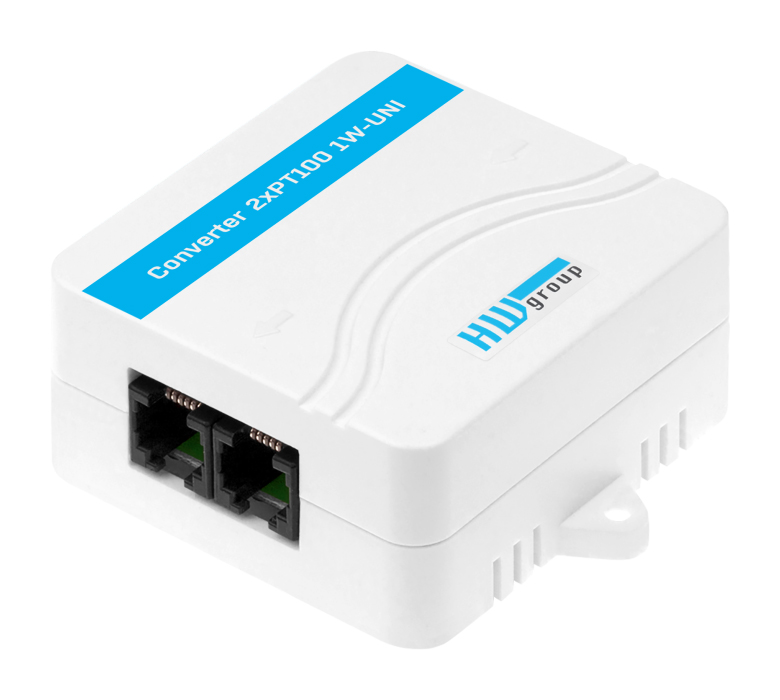

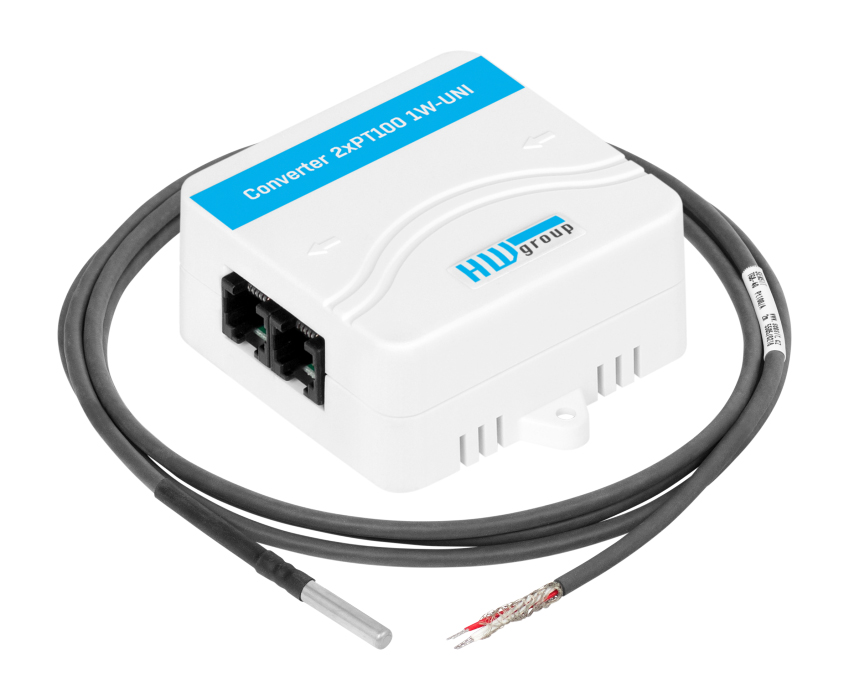

Pt-100-based temperature sensor with 1-wire UNI output. It contains a Pt-100 probe (-50 ° C to 200 ° C, Pt100 / A, 2 m silicon cable) and a 1-wire UNI converter (converter 2xPt100 1W-UNI). The second Pt100 or Pt1000 probe can be connected.
Scope of delivery: HW Group Temp-1W-UNI Pt100 Cable - 600606
Scope of delivery: HW Group Temp-1W-UNI Pt100 Cable - 600606
| Monitoring: | Temperature |
|---|
Features
- Up to two external temperature sensors (Pt100 or Pt1000) can be connected
- Measured temperature range is -200 to +850 °C (-328 to 1560 °F)
- Supports 2/3/4-wire probe connection
- High temperature measurement accuracy, automatic measuring range
- Sensors can be connected in series (two RJ11 connectors)
- Transducer can be calibrated at 8 points
- Power supply via 1-wire Uni-Bus (RJ11)
Technical details
Applications and use
- Cable length: 2 meters
- Connectors: RJ12
- Power supply: 5V
- Consumption: 20mA
- Operating environment: -30 ° C - 85 ° C / 0% rH - 100% rH
- Storage environment: -30 ° C - 60 ° C / 5% rH - 95% rH
- Dimensions: 79 x 68 x 30 (WxHxD) / 197 g
Applications and use
- Industrial systems with accurate temperature measurement
- Refrigeration systems with built-in temperature sensors at fixed locations
- Accurate temperature measurement over a wide range
- Large area measuring systems with many measuring points
- Measurement of HVAC and ambient conditions in buildings
- Independent measurements in food and grain warehouses
- Food processing plants and warehouses, difficult measuring conditions
- Temperature monitoring in pharmaceutical warehouses
